Max airflow100 m³/h59 CFM
Max static pressure180 Pa0.72 in. wg
Voltage220 V
Speed2,500 rpm
Input power34 W

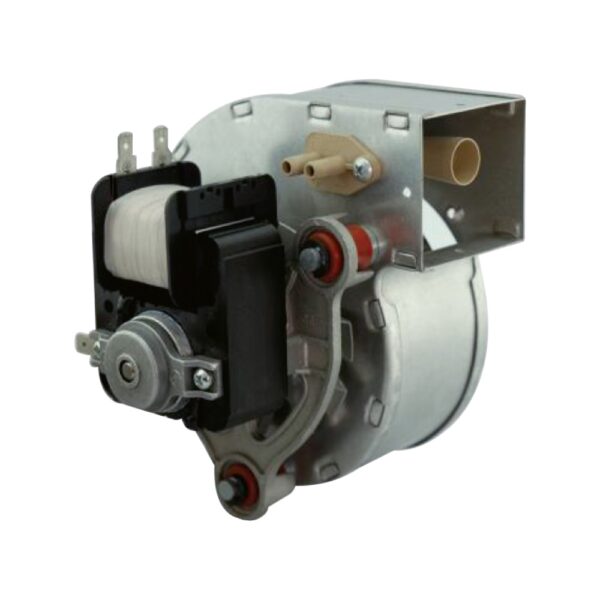

FL085034Y-01D Gas Blower

Max airflow 100 m³/h | Max static pressure 180 Pa

SKU: FL085034Y-01D Category: Gas Blowers

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · FL085034Y-01D

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for FL085034Y-01Ddrawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

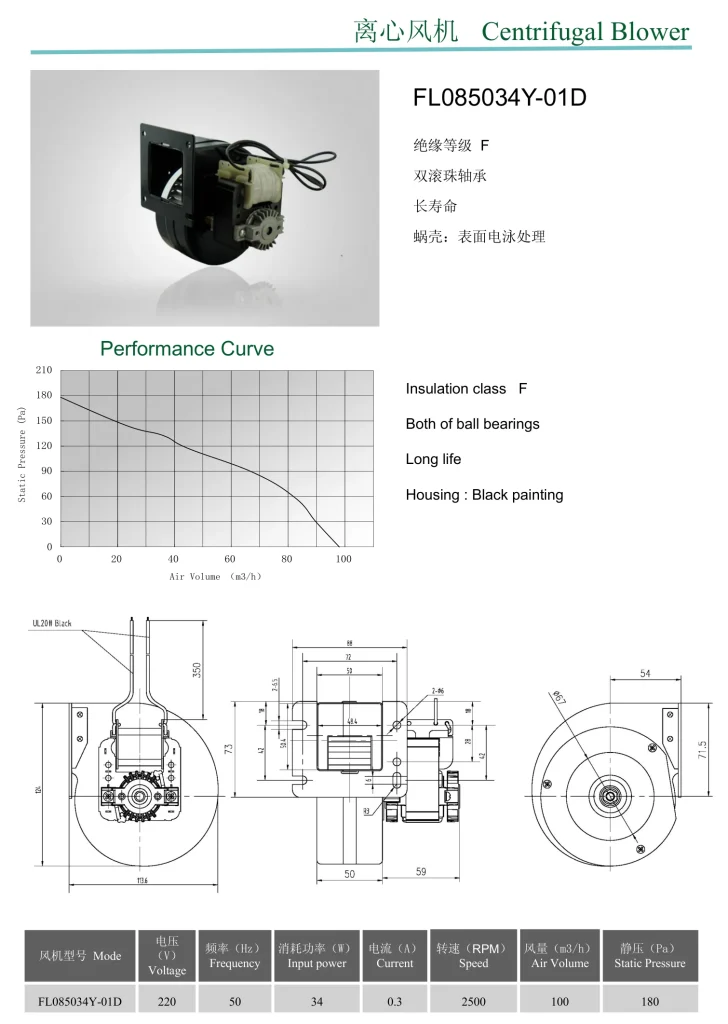

FL085034Y-01D Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for FL085034Y-01D

PDFDatasheet · 324 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

FL085034Y-01D is a LONGWELL Gas Blower from the Gas Blowers range, rated 220 V, maximum airflow 100 m³/h, maximum static pressure 180 Pa, input power 34 W.

Technical data

Model	FL085034Y-01D
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Current	0.3 A
Input power	34 W
Speed	2,500 rpm
Max. airflow	100 m³/h
Max. static pressure	180 Pa
Insulation class	F
Bearing	s Long

Typical applications

Condensing gas boilers
Gas water heaters
Premix burners

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
