Inline Duct Fans

Inline duct fans connect directly into round or rectangular duct systems: metal, plastic, EC and ultra-silent constructions for fresh air, exhaust and local pressurisation. Final selection is confirmed at the duty point (airflow / static pressure / voltage / control mode) and by project verification.

Browse by size

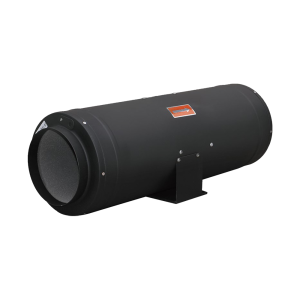

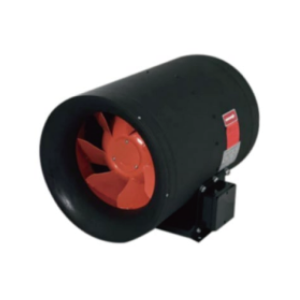

Metal Inline Duct FansMetal Inline Duct Fans27 modelsMixed Flow FansMixed Flow Fans32 modelsPlastic Inline Duct FansPlastic Inline Duct Fans24 modelsUltra Silent Duct FansUltra Silent Duct Fans36 models

Browse by series

AllLWDA10011LWDA15011LWDA20011LWDA12510LWDA2507LWDA3005LWDE1005LWDE1255LWDE1505LWDE2005LWDE2505LWDA4004LWDE3004LWDE4004LWDD1003LWDD1253LWDD2003LWDA3152LWDA3502LWDA3552LWDD1602LWDD2502LWDE3502LWDE3552LWDE3G1002LWDE3G1502LWDE3G2002
Filter by duty point125 models in this category

Filters use nameplate maximum values (max airflow at zero static pressure, max static pressure at zero airflow). Check the actual operating point on the performance curve of each model.

ViewData tableImage grid
ModelSizeMax airflowm³/hMax static pressurePaPowerWNoisedB(A)SpeedrpmVoltageV
LWDA-100 (4")S-MWN-04 LWDA-100 (4")S-MWN-04AC Ø100 mm 605 see curve 41 49 2,900 220-240 Details
LWDA-100 (4")S-PWN-02 LWDA-100 (4")S-PWN-02AC Ø100 mm 605 168 41 51 2,900 220-240 Details
LWDA-100 (4")U-MWN-03 LWDA-100 (4")U-MWN-03AC Ø100 mm 410 see curve 41 51 3,350 110-120 Details
LWDA-100 (4")U-PWN-01 LWDA-100 (4")U-PWN-01AC Ø100 mm 410 see curve 41 52 3,350 110-120 Details
LWDA-100(4")S-MWN-08 LWDA-100(4")S-MWN-08AC Ø100 mm 140 58 20 48 2,800 220 Details
LWDA-100(4")S-PWN-14 LWDA-100(4")S-PWN-14AC Ø100 mm 325 163 36 30 2,360 230 Details
LWDA-100(4")S-PWN-15 LWDA-100(4")S-PWN-15AC Ø100 mm 205 135 25 24 1,900 230 Details
LWDA-100(4")U-PWN-16 LWDA-100(4")U-PWN-16AC Ø100 mm 325 163 34 30 2,360 115 Details
LWDA-100(4")U-PWN-17 LWDA-100(4")U-PWN-17AC Ø100 mm 205 135 34 24 1,900 115 Details
LWDA-100S-MBN-14 LWDA-100S-MBN-14AC Ø100 mm 242 326 60 59 2,450 230 Details
LWDA-100S-PWN-15 LWDA-100S-PWN-15AC Ø100 mm 319 185 40 25 2,550 230 Details
LWDA-125 (5")S-MWN-04 LWDA-125 (5")S-MWN-04AC Ø125 mm 605 see curve 41 49 2,900 220-240 Details
LWDA-125 (5")S-PWN-02 LWDA-125 (5")S-PWN-02AC Ø125 mm 605 168 41 51 2,900 220-240 Details
LWDA-125 (5")U-MWN-03 LWDA-125 (5")U-MWN-03AC Ø125 mm 410 see curve 41 51 3,350 110-120 Details
LWDA-125 (5")U-PWN-01 LWDA-125 (5")U-PWN-01AC Ø125 mm 410 see curve 41 52 3,350 110-120 Details
LWDA-125(5")S-PWN-06 LWDA-125(5")S-PWN-06AC Ø125 mm 330 168 39 31 2,360 230 Details
LWDA-125(5")S-PWN-07 LWDA-125(5")S-PWN-07AC Ø125 mm 293 137 28 30 1,950 230 Details
LWDA-125(5")U-PWN-08 LWDA-125(5")U-PWN-08AC Ø125 mm 330 168 37 31 2,360 115 Details
LWDA-125(5")U-PWN-09 LWDA-125(5")U-PWN-09AC Ø125 mm 293 137 29 30 1,950 115 Details
LWDA-125S-MBN-10 LWDA-125S-MBN-10AC Ø125 mm 294 326 52 60 2,350 230 Details
LWDA-125S-PWN-11 LWDA-125S-PWN-11AC Ø125 mm 319 185 40 25 2,550 230 Details
LWDA-150 (6")S-MWN-02 LWDA-150 (6")S-MWN-02AC Ø150 mm 620 see curve 41 55 2,900 220-240 Details
LWDA-150 (6")S-MWN-04 LWDA-150 (6")S-MWN-04AC Ø150 mm 620 see curve 41 50 2,900 220-240 Details
LWDA-150 (6")U-MWN-01 LWDA-150 (6")U-MWN-01AC Ø150 mm 437 see curve 55 58 3,400 110-120 Details
LWDA-150 (6")U-MWN-03 LWDA-150 (6")U-MWN-03AC Ø150 mm 437 see curve 55 53 3,400 110-120 Details
LWDA-150(6")S-MWN-08 LWDA-150(6")S-MWN-08AC Ø150 mm 780 70 40 52 2,800 220 Details
LWDA-150(6")S-PWN-11 LWDA-150(6")S-PWN-11AC Ø150 mm 660 168 59 32 2,400 230 Details
LWDA-150(6")S-PWN-12 LWDA-150(6")S-PWN-12AC Ø150 mm 530 137 41 30 2,050 230 Details
LWDA-150(6")U-PWN-13 LWDA-150(6")U-PWN-13AC Ø150 mm 674 355 59 32 2,480 115 Details
LWDA-150(6")U-PWN-14 LWDA-150(6")U-PWN-14AC Ø150 mm 535 302 44 30 2,050 115 Details
LWDA-150S-MBN-12 LWDA-150S-MBN-12AC Ø150 mm 457 368 72 61 2,160 230 Details
LWDA-150S-PWN-13 LWDA-150S-PWN-13AC Ø150 mm 556 309 80 27 2,550 230 Details
LWDA-160S-MBN-04 LWDA-160S-MBN-04AC Ø160 mm 494 336 72 63 2,200 230 Details
LWDA-180(7")S-MWN-01 LWDA-180(7")S-MWN-01AC Ø180 mm 1,000 90 60 58 2,800 220 Details
LWDA-200 (8")S-MWN-02 LWDA-200 (8")S-MWN-02AC Ø200 mm 1,150 see curve 143 59 2,900 220-240 Details
LWDA-200 (8")S-MWN-04 LWDA-200 (8")S-MWN-04AC Ø200 mm 1,150 see curve 143 57 2,900 220-240 Details
LWDA-200 (8")U-MWN-01 LWDA-200 (8")U-MWN-01AC Ø200 mm 720 see curve 179 65 3,400 110-120 Details
LWDA-200 (8")U-MWN-03 LWDA-200 (8")U-MWN-03AC Ø200 mm 720 see curve 179 61 3,400 110-120 Details
LWDA-200(8")S-MWN-08 LWDA-200(8")S-MWN-08AC Ø200 mm 1,300 140 80 62 2,800 220 Details
LWDA-200(8")S-PWN-09 LWDA-200(8")S-PWN-09AC Ø200 mm 910 384 130 40 2,300 230 Details
Certifications for this product line
FCC ×2CE-LVD ×2CE-EMC
View certificates →
