Axial Fans

Axial fans are most efficient in the high airflow / low-to-medium static pressure range: building ventilation, condensers and evaporators, heat-pump outdoor units, cooling towers and equipment cooling. AC / DC / EC motors, impellers Ø145–1000 mm. Final selection is confirmed at the duty point (airflow / static pressure / voltage / control mode) and by project verification.

Browse by size

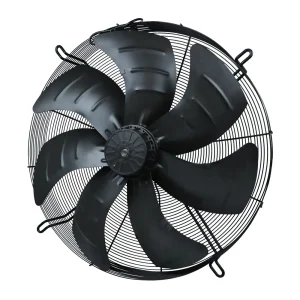

AC Axial FansAC Axial Fans203 modelsDC Axial FansDC Axial Fans22 modelsEC Axial FansEC Axial Fans116 modelsIndustrial Axial FansIndustrial Axial Fans58 modelsTube Axial FansTube Axial Fans36 models

Browse by series

AllLWWAF26LWAE3G20020LWAE3G30015LWAA4E40013LWAA4E45011LWAE3G63011LWAE3G25010LWAE3G45010LWAA2E2509LWAA4D4009LWAA4D4509LWAE3G3509LWAE3G4009LWAE3G5009LWAA4E3508LWAD3G2008LWAD3G2508LWAA4D3507LWAA4D5007LWAA4E2507LWAA2D2006LWAA4E3006LWAA6D8006LWAD3G3006LWAE3G5506LWAE3G8006LWAA2E3005LWAA6D6305LWAA6D7105LWAE3G7105LWAA2D2504LWAA2D3004LWAA2E2004LWAA4D5504LWAA4D6304LWAA4E5004LWAA6E6004LWAE3G3154LWAA4E5503LWAA6E6303
Filter by duty point435 models in this category

Filters use nameplate maximum values (max airflow at zero static pressure, max static pressure at zero airflow). Check the actual operating point on the performance curve of each model.

ViewData tableImage grid
ModelSizeMax airflowm³/hMax static pressurePaPowerWNoisedB(A)SpeedrpmVoltageV
LWA-200(8")U(S)M-01 LWA-200(8")U(S)M-01AC Ø200 mm 23 see curve 135 — 2,800 110-120 Details
LWA-200(8")U(S)M-02 LWA-200(8")U(S)M-02AC Ø200 mm 1,300 140 120 — 2,800 110-120 Details
LWA-200S(T)M-03E LWA-200S(T)M-03EAC Ø190 mm 1,500 250 150 — 2,800 220 Details
LWA-250(10")U(S)M-01 LWA-250(10")U(S)M-01AC Ø250 mm 28 see curve 80 — 1,350 110-120 Details
LWA-250(10")U(S)M-02 LWA-250(10")U(S)M-02AC Ø250 mm 48 see curve 230 — 2,800 110-120 Details
LWA-250(10")U(S)M-03 LWA-250(10")U(S)M-03AC Ø250 mm 2,100 215 250 — 2,800 110-120 Details
LWA-250S(T)M-04E LWA-250S(T)M-04EAC Ø240 mm 2,700 300 250 — 2,800 220 Details
LWA-300(12")U(S)M-01 LWA-300(12")U(S)M-01AC Ø300 mm 35 see curve 100 — 1,350 110-120 Details
LWA-300(12")U(S)M-02 LWA-300(12")U(S)M-02AC Ø300 mm 46 see curve 120 — 1,350 110-120 Details
LWA-300(12")U(S)M-03 LWA-300(12")U(S)M-03AC Ø300 mm 65 see curve 370 — 2,800 110-120 Details
LWA-300(12")U(S)M-04 LWA-300(12")U(S)M-04AC Ø300 mm 3,000 230 370 — 2,800 110-120 Details
LWA-300S(T)M-05E LWA-300S(T)M-05EAC Ø290 mm 3,720 300 370 — 2,800 220 Details
LWA-350(14")U(S)M-01 LWA-350(14")U(S)M-01AC Ø350 mm 60 see curve 140 — 1,350 110-120 Details
LWA-350(14")U(S)M-02 LWA-350(14")U(S)M-02AC Ø350 mm 65 see curve 160 — 1,350 110-120 Details
LWA-350(14")U(S)M-03 LWA-350(14")U(S)M-03AC Ø350 mm 98 see curve 550 — 2,800 110-120 Details
LWA-350(14")U(S)M-04 LWA-350(14")U(S)M-04AC Ø350 mm 5,500 250 750 — 2,800 110-120 Details
LWA-350S(T)M-05E LWA-350S(T)M-05EAC Ø340 mm 4,840 550 550 — 2,800 220 Details
LWA-400(16")U(S)M-01 LWA-400(16")U(S)M-01AC Ø400 mm 90 see curve 170 — 1,350 110-120 Details
LWA-400(16")U(S)M-02 LWA-400(16")U(S)M-02AC Ø400 mm 110 see curve 200 — 1,350 110-120 Details
LWA-400(16")U(S)M-03 LWA-400(16")U(S)M-03AC Ø400 mm 150 see curve 750 — 2,800 110-120 Details
LWA-400(16")U(S)M-04 LWA-400(16")U(S)M-04AC Ø400 mm 11,000 400 1,100 — 2,800 110-120 Details
LWA-400S(T)M-05E LWA-400S(T)M-05EAC Ø390 mm 5,860 750 900 — 2,800 220 Details
LWA-450(18")U(S)M-01 LWA-450(18")U(S)M-01AC Ø450 mm 12,500 580 1,500 — 2,800 110-120 Details
LWA-500(20")U(S)M-01 LWA-500(20")U(S)M-01AC Ø500 mm 150 see curve 200 — 1,350 110-120 Details
LWA-500(20")U(S)M-02 LWA-500(20")U(S)M-02AC Ø500 mm 165 see curve 250 — 1,350 110-120 Details
LWA-500S(T)M-03E LWA-500S(T)M-03EAC Ø490 mm 6,800 185 750 — 1,450 220 Details
LWA-600(24")TM-02 LWA-600(24")TM-02AC Ø600 mm 310 see curve 800 — 1,350 380 Details
LWA-600(24")U(S)M-01 LWA-600(24")U(S)M-01AC Ø600 mm 205 see curve 500 — 1,350 110-120 Details
LWA-600(24")U(S)M-03 LWA-600(24")U(S)M-03AC Ø600 mm 210 see curve 260 64 1,100 110-120 Details
LWA-750(30")U(S)M-01 LWA-750(30")U(S)M-01AC Ø750 mm 260 see curve 420 68 1,100 110-120 Details
LWA-900(36")U(S)M-01 LWA-900(36")U(S)M-01AC Ø900 mm 290 see curve 600 70 1,100 110-120 Details
LWAA2D145S-5MNW-01 LWAA2D145S-5MNW-01AC Ø145 mm 268 see curve 50 46 2,800 380 Details
LWAA2D145S-5MNW-02 LWAA2D145S-5MNW-02AC Ø145 mm 309 see curve 35 49 3,200 380 Details
LWAA2D165S-5MNW-01 LWAA2D165S-5MNW-01AC Ø165 mm 278 see curve 50 47 2,800 380 Details
LWAA2D165S-5MNW-02 LWAA2D165S-5MNW-02AC Ø165 mm 330 see curve 35 50 3,200 380 Details
LWAA2D185S-7MNW-03 LWAA2D185S-7MNW-03AC Ø185 mm 670 see curve 55 51 2,400 380 Details
LWAA2D185S-7MNW-04 LWAA2D185S-7MNW-04AC Ø185 mm 742 see curve 75 52 2,700 380 Details
LWAA2D200S-7MEB-05 LWAA2D200S-7MEB-05AC Ø200 mm 906 see curve 65 53 2,300 380 Details
LWAA2D200S-7MEB-06 LWAA2D200S-7MEB-06AC Ø200 mm 1,009 see curve 70 55 2,400 380 Details
LWAA2D200S-7MKW-09 LWAA2D200S-7MKW-09AC Ø200 mm 906 see curve 65 58 2,300 380/400 Details
