- Frame size120 mm
- Max airflow227.4 m³/h
- Max static pressure119 Pa
- Voltage48 V
- Speed4,000 rpm
- Input power38.4 W
- Noise49.9 dB(A)

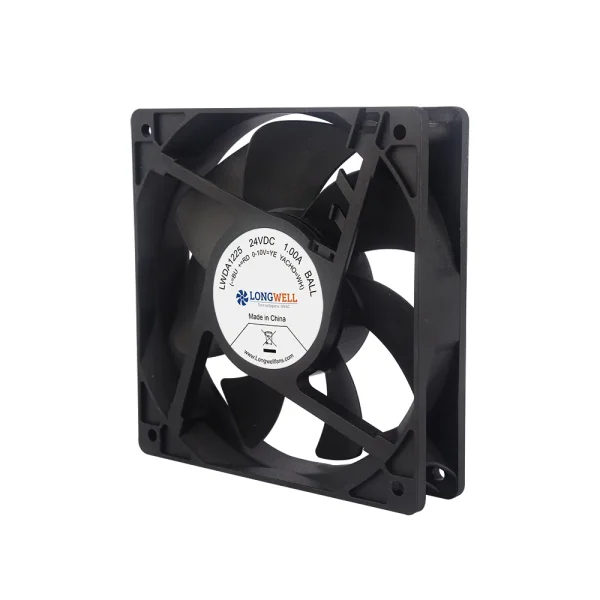

LWAD12025HX-02 DC Axial Cooling Fan 120 mm
120 mm | DC | Max airflow 227.4 m³/h | Max static pressure 119 Pa | 49.9 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAD12025HX-02 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 120 mm, rated 48 V DC, maximum airflow 227.4 m³/h, maximum static pressure 119 Pa, noise 49.9 dB(A), input power 38.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWAD12025HX-02 |
|---|---|
| Series | LWAD12025 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 0.8 A |
| Input power | 38.4 W |
| Speed | 4,000 rpm |
| Max. airflow | 227.4 m³/h |
| Max. static pressure | 119 Pa |
| Noise | 49.9 dB(A) |
| Frame size | 120 mm |

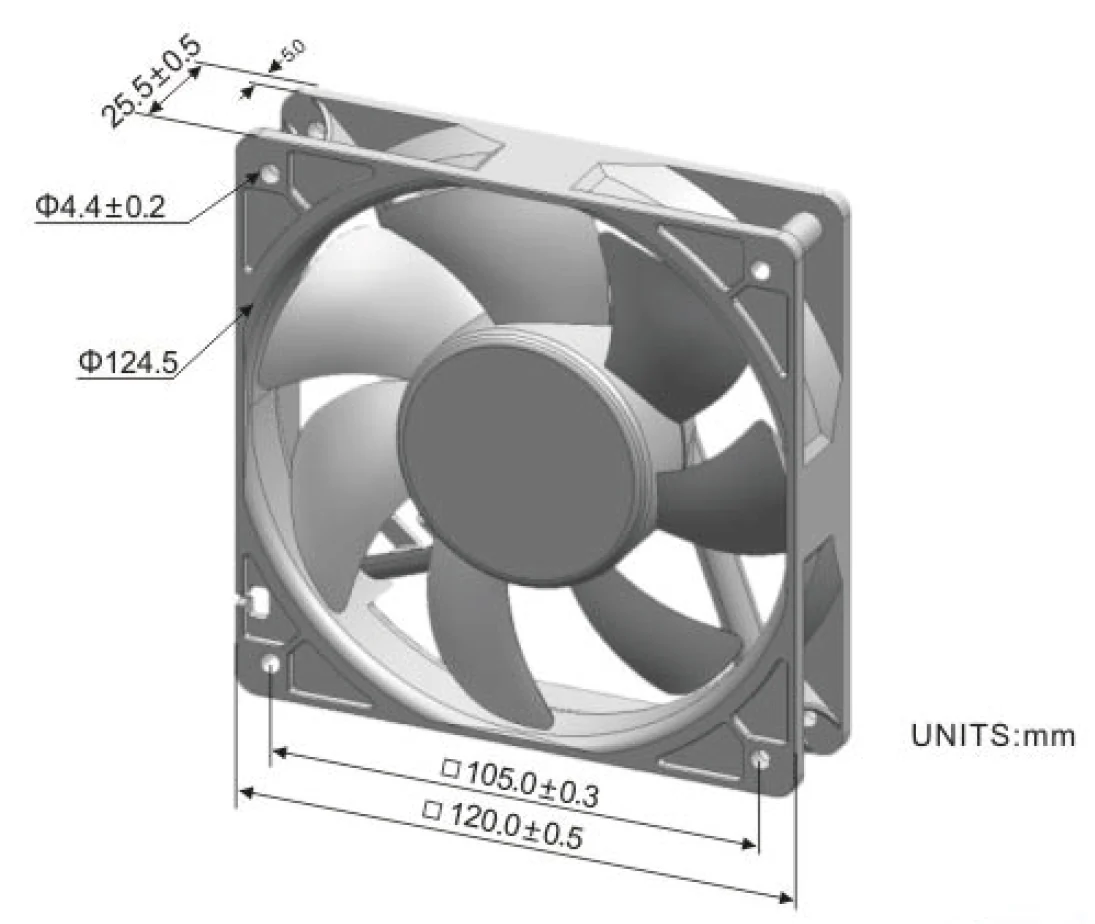

| Dimensions | 120x25mm |
| Impeller material | Plastic(UL94-VO) |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAD12025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same frame size (120 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAD12025HX-02 this model | 227.4 m³/h | 119 Pa | 4,000 rpm | 38.4 W | 49.9 dB(A) | 48 V | |
| LWFD12032HL-04 | 34.2 m³/h | 105 Pa | 1,500 rpm | 7.2 W | 38.6 dB(A) | 48 V | View |
| LWFD12032HM-03 | 57 m³/h | 291 Pa | 2,500 rpm | 12 W | 49.7 dB(A) | 48 V | View |
| LWFD3G120-072SZ-02 | 319 m³/h | 247 Pa | 2,200 rpm | 65 W | 57 dB(A) | 310 V | View |
| LWFD3G120-072SZ-01 | 319 m³/h | 247 Pa | 2,200 rpm | 65 W | 57 dB(A) | 310 V | View |
| LWFD3G120-072SH-01 | 359 m³/h | 189 Pa | 2,365 rpm | 67 W | — | 48 V | View |
| LWFD3G120-072SH-03 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 48 V | View |
| LWFD3G120-072SM-02 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 24 V | View |
| LWFD3G120-072SH-02 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 48 V | View |
| LWFD3G120-072SM-01 | 371 m³/h | 309 Pa | 2,400 rpm | 95 W | 60 dB(A) | 24 V | View |
| LWCD-120380MN-06 | 900 m³/h | 68 Pa | 1,350 rpm | 48 W | 56 dB(A) | 24 V | View |
| LWCD-120490MN-06 | 1,160 m³/h | 88 Pa | 1,350 rpm | 90 W | 57 dB(A) | 24 V | View |
| LWCD-120560MN-06 | 1,350 m³/h | 100 Pa | 1,350 rpm | 110 W | 57 dB(A) | 24 V | View |
| LWCD-120680MN-06 | 1,600 m³/h | 122 Pa | 1,350 rpm | 123 W | 58 dB(A) | 24 V | View |
| LWCD-120780MN-06 | 1,900 m³/h | 140 Pa | 1,350 rpm | 144 W | 60 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
