Frame size120 mm4.7 in
Max airflow374.4 m³/h220 CFM
Max static pressure376 Pa1.51 in. wg
Voltage12 V
Speed5,500 rpm
Input power42 W
Noise61.6 dB(A)

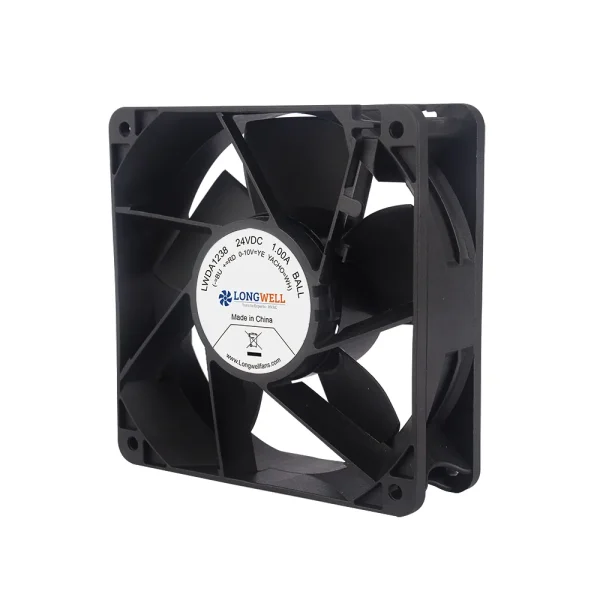

LWAD12038LX-10 DC Axial Cooling Fan 120 mm

120 mm | DC | Max airflow 374.4 m³/h | Max static pressure 376 Pa | 61.6 dB(A)

SKU: LWAD12038LX-10 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD12038LX-10

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD12038LX-10drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

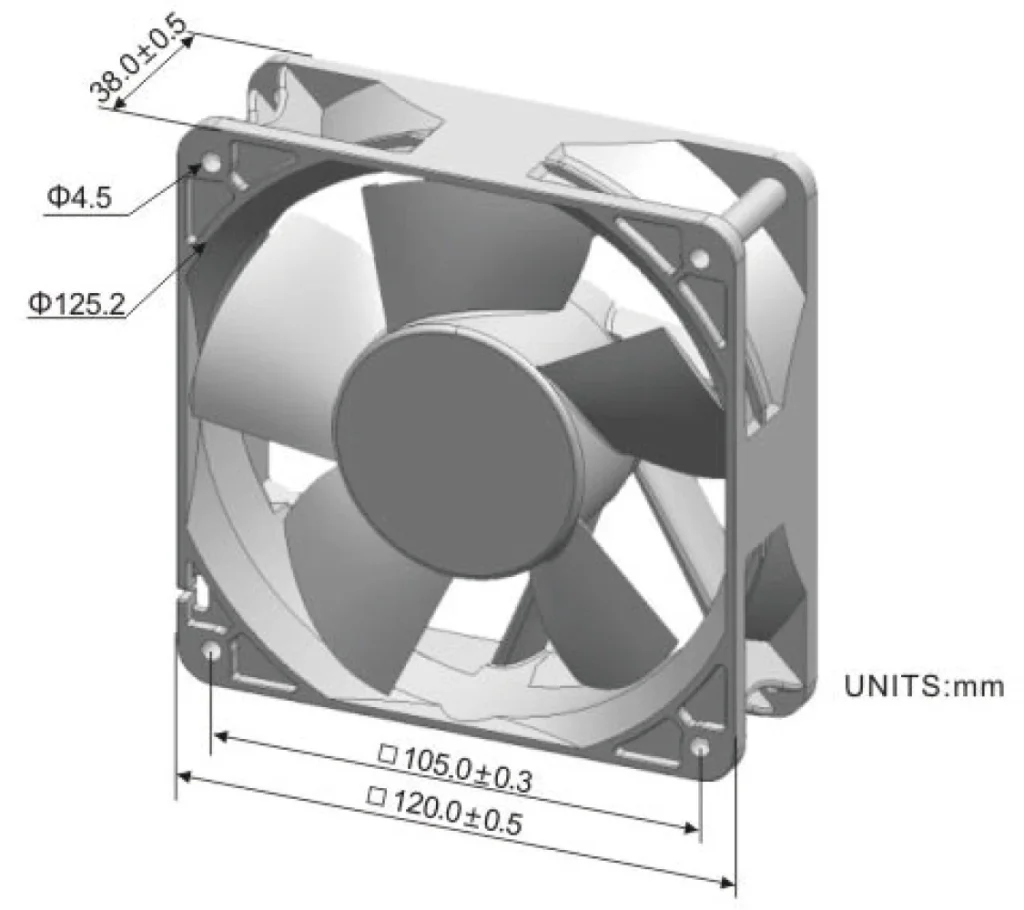

LWAD12038LX-10 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD12038LX-10 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD12038LX-10 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 120 mm, rated 12 V DC, maximum airflow 374.4 m³/h, maximum static pressure 376 Pa, noise 61.6 dB(A), input power 42 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD12038LX-10
Series	LWAD12038
Motor type	DC
Rated voltage	12 V
Current	3.5 A
Input power	42 W
Speed	5,500 rpm
Max. airflow	374.4 m³/h
Max. static pressure	376 Pa
Noise	61.6 dB(A)
Frame size	120 mm
Dimensions	120x38mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD12038: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (120 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD12038LX-10 this model	374.4 m³/h	376 Pa	5,500 rpm	42 W	61.6 dB(A)	12 V
LWFD12032HL-04	34.2 m³/h	105 Pa	1,500 rpm	7.2 W	38.6 dB(A)	48 V	View
LWFD12032HM-03	57 m³/h	291 Pa	2,500 rpm	12 W	49.7 dB(A)	48 V	View
LWFD3G120-072SZ-02	319 m³/h	247 Pa	2,200 rpm	65 W	57 dB(A)	310 V	View
LWFD3G120-072SZ-01	319 m³/h	247 Pa	2,200 rpm	65 W	57 dB(A)	310 V	View
LWFD3G120-072SH-01	359 m³/h	189 Pa	2,365 rpm	67 W	—	48 V	View
LWFD3G120-072SH-03	371 m³/h	309 Pa	2,400 rpm	95 W	60 dB(A)	48 V	View
LWFD3G120-072SM-02	371 m³/h	309 Pa	2,400 rpm	95 W	60 dB(A)	24 V	View
LWFD3G120-072SH-02	371 m³/h	309 Pa	2,400 rpm	95 W	60 dB(A)	48 V	View
LWFD3G120-072SM-01	371 m³/h	309 Pa	2,400 rpm	95 W	60 dB(A)	24 V	View
LWCD-120380MN-06	900 m³/h	68 Pa	1,350 rpm	48 W	56 dB(A)	24 V	View
LWCD-120490MN-06	1,160 m³/h	88 Pa	1,350 rpm	90 W	57 dB(A)	24 V	View
LWCD-120560MN-06	1,350 m³/h	100 Pa	1,350 rpm	110 W	57 dB(A)	24 V	View
LWCD-120680MN-06	1,600 m³/h	122 Pa	1,350 rpm	123 W	58 dB(A)	24 V	View
LWCD-120780MN-06	1,900 m³/h	140 Pa	1,350 rpm	144 W	60 dB(A)	24 V	View
