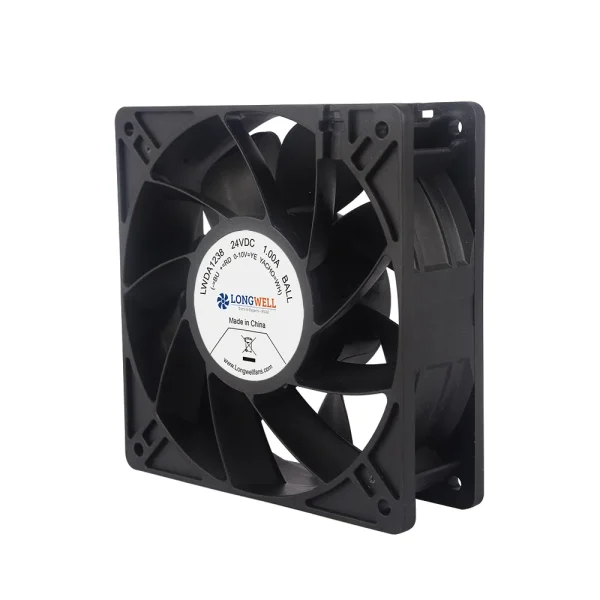

LWAD12038MH-05 product photo
LWAD12038HX-09 product photo
  • Frame size120 mm
  • Max airflow327.6 m³/h
  • Max static pressure240 Pa
  • Voltage24 V
  • Speed5,500 rpm
  • Input power24 W
  • Noise62.1 dB(A)

LWAD12038MH-05 DC Axial Cooling Fan 120 mm

120 mm | DC | Max airflow 327.6 m³/h | Max static pressure 240 Pa | 62.1 dB(A)

SKU: LWAD12038MH-05 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

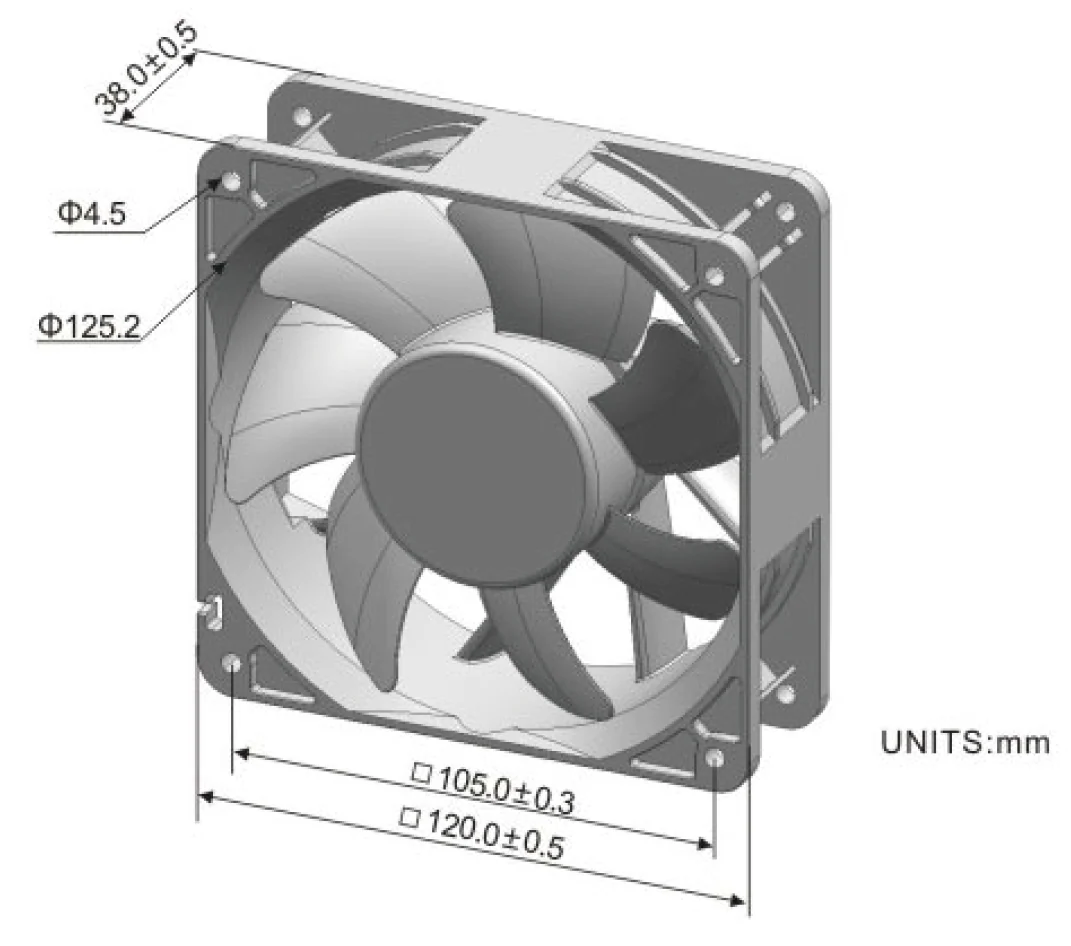

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAD12038MH-05 Dimensional drawing
Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWAD12038MH-05 Performance curve (P-Q)

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD12038MH-05 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 120 mm, rated 24 V DC, maximum airflow 327.6 m³/h, maximum static pressure 240 Pa, noise 62.1 dB(A), input power 24 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWAD12038MH-05
Series LWAD12038
Motor type DC
Rated voltage 24 V
Current 1 A
Input power 24 W
Speed 5,500 rpm
Max. airflow 327.6 m³/h
Max. static pressure 240 Pa
Noise 62.1 dB(A)
Frame size 120 mm
Dimensions 120x38mm
Impeller material Plastic(UL94-VO)

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAD12038: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (120 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAD12038MH-05 this model 327.6 m³/h240 Pa 5,500 rpm24 W62.1 dB(A)24 V
LWFD12032HL-04 34.2 m³/h105 Pa 1,500 rpm7.2 W38.6 dB(A)48 V View
LWFD12032HM-03 57 m³/h291 Pa 2,500 rpm12 W49.7 dB(A)48 V View
LWFD3G120-072SZ-02 319 m³/h247 Pa 2,200 rpm65 W57 dB(A)310 V View
LWFD3G120-072SZ-01 319 m³/h247 Pa 2,200 rpm65 W57 dB(A)310 V View
LWFD3G120-072SH-01 359 m³/h189 Pa 2,365 rpm67 W—48 V View
LWFD3G120-072SH-03 371 m³/h309 Pa 2,400 rpm95 W60 dB(A)48 V View
LWFD3G120-072SM-02 371 m³/h309 Pa 2,400 rpm95 W60 dB(A)24 V View
LWFD3G120-072SH-02 371 m³/h309 Pa 2,400 rpm95 W60 dB(A)48 V View
LWFD3G120-072SM-01 371 m³/h309 Pa 2,400 rpm95 W60 dB(A)24 V View
LWCD-120380MN-06 900 m³/h68 Pa 1,350 rpm48 W56 dB(A)24 V View
LWCD-120490MN-06 1,160 m³/h88 Pa 1,350 rpm90 W57 dB(A)24 V View
LWCD-120560MN-06 1,350 m³/h100 Pa 1,350 rpm110 W57 dB(A)24 V View
LWCD-120680MN-06 1,600 m³/h122 Pa 1,350 rpm123 W58 dB(A)24 V View
LWCD-120780MN-06 1,900 m³/h140 Pa 1,350 rpm144 W60 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
