Frame size120 mm4.7 in
Max airflow357.6 m³/h210 CFM
Max static pressure286 Pa1.15 in. wg
Voltage24 V
Speed6,000 rpm
Input power28.8 W
Noise64 dB(A)

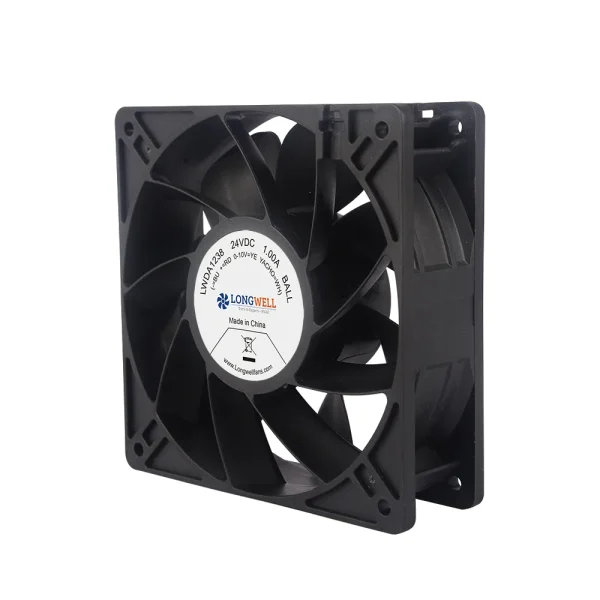

LWAD12038MX-04 DC Axial Cooling Fan 120 mm

120 mm | DC | Max airflow 357.6 m³/h | Max static pressure 286 Pa | 64 dB(A)

SKU: LWAD12038MX-04 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWAD12038MX-04

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD12038MX-04drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

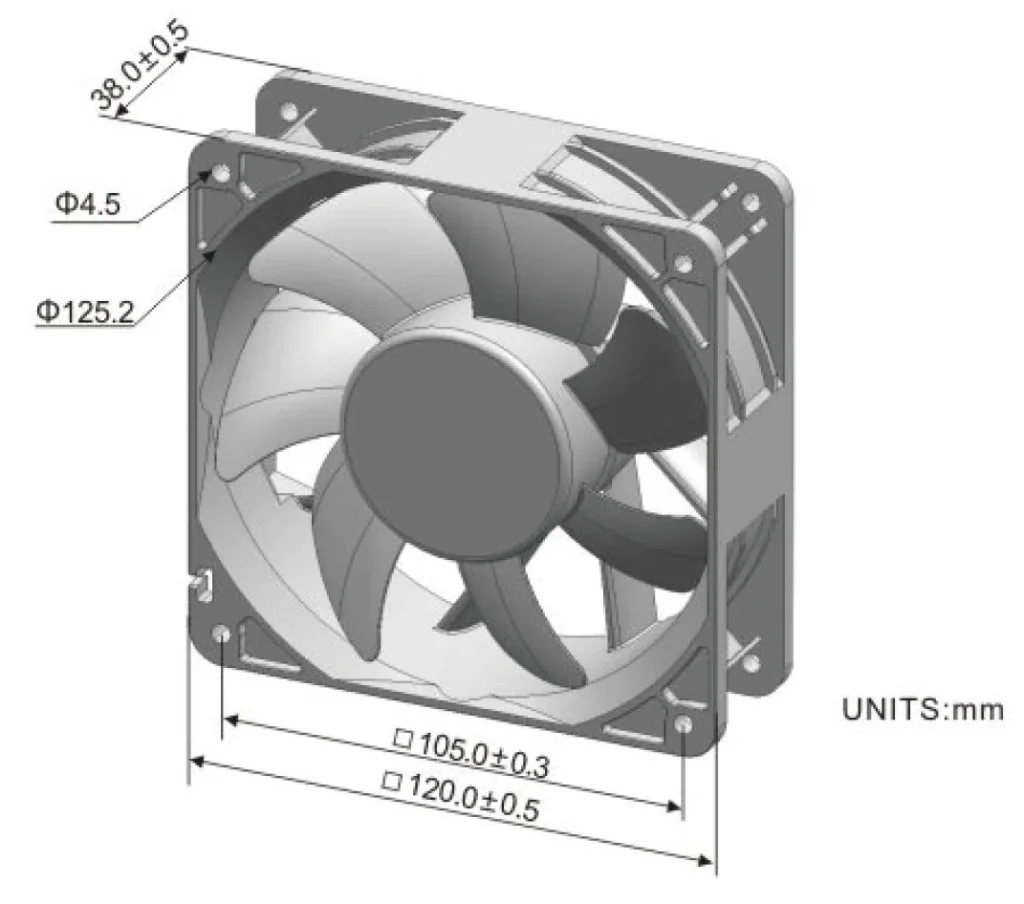

LWAD12038MX-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD12038MX-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD12038MX-04 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 120 mm, rated 24 V DC, maximum airflow 357.6 m³/h, maximum static pressure 286 Pa, noise 64 dB(A), input power 28.8 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD12038MX-04
Series	LWAD12038
Motor type	DC
Rated voltage	24 V
Current	1.2 A
Input power	28.8 W
Speed	6,000 rpm
Max. airflow	357.6 m³/h
Max. static pressure	286 Pa
Noise	64 dB(A)
Frame size	120 mm
Dimensions	120x38mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD12038: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (120 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD12038MX-04 this model	357.6 m³/h	286 Pa	6,000 rpm	28.8 W	64 dB(A)	24 V
LWFD12032HL-04	34.2 m³/h	105 Pa	1,500 rpm	7.2 W	38.6 dB(A)	48 V	View
LWFD12032MD-05	34.2 m³/h	105 Pa	1,500 rpm	4.8 W	38.6 dB(A)	24 V	View
LWFD12032LD-05	34.2 m³/h	105 Pa	1,500 rpm	3.6 W	38.6 dB(A)	12 V	View
LWFD12032ML-04	45.6 m³/h	186 Pa	2,000 rpm	8.4 W	44.8 dB(A)	24 V	View
LWFD12032LL-04	45.6 m³/h	186 Pa	2,000 rpm	6 W	44.8 dB(A)	12 V	View
LWFD12032HM-03	57 m³/h	291 Pa	2,500 rpm	12 W	49.7 dB(A)	48 V	View
LWFD12032MM-03	57 m³/h	291 Pa	2,500 rpm	9.6 W	49.7 dB(A)	24 V	View
LWFD12032LM-03	57 m³/h	291 Pa	2,500 rpm	8.4 W	49.7 dB(A)	12 V	View
LWFD12032HH-02	68.4 m³/h	419 Pa	3,000 rpm	14.4 W	53.7 dB(A)	48 V	View
LWFD12032MH-02	68.4 m³/h	419 Pa	3,000 rpm	14.4 W	53.7 dB(A)	24 V	View
LWFD12032LH-02	68.4 m³/h	419 Pa	3,000 rpm	12 W	53.7 dB(A)	12 V	View
LWFD12032HX-01	79.8 m³/h	570 Pa	3,500 rpm	24 W	57 dB(A)	48 V	View
LWFD12032MX-01	79.8 m³/h	570 Pa	3,500 rpm	24 W	57 dB(A)	24 V	View
LWFD12032LX-01	79.8 m³/h	570 Pa	3,500 rpm	24 W	57 dB(A)	12 V	View
