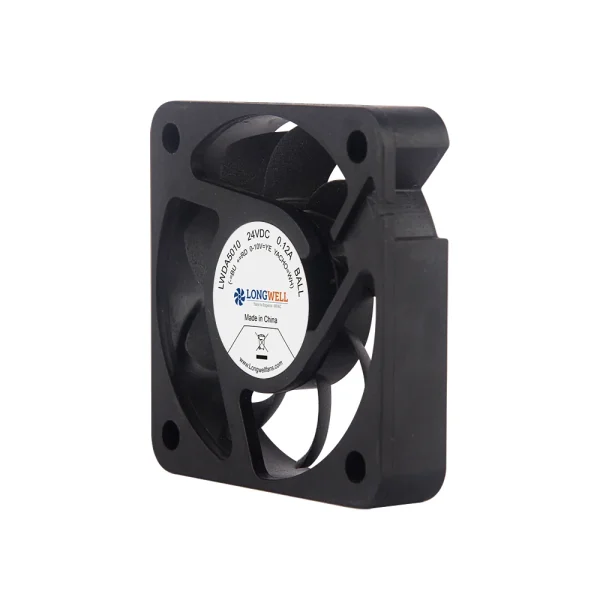

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- Frame size50 mm2.0 in
- Max airflow11.4 m³/h7 CFM
- Max static pressure15 Pa0.06 in. wg
- Voltage12 V
- Speed4,000 rpm
- Input power1.2 W
- Noise25.2 dB(A)
LWAD5010LL-04 DC Axial Cooling Fan 50 mm
50 mm | DC | Max airflow 11.4 m³/h | Max static pressure 15 Pa | 25.2 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

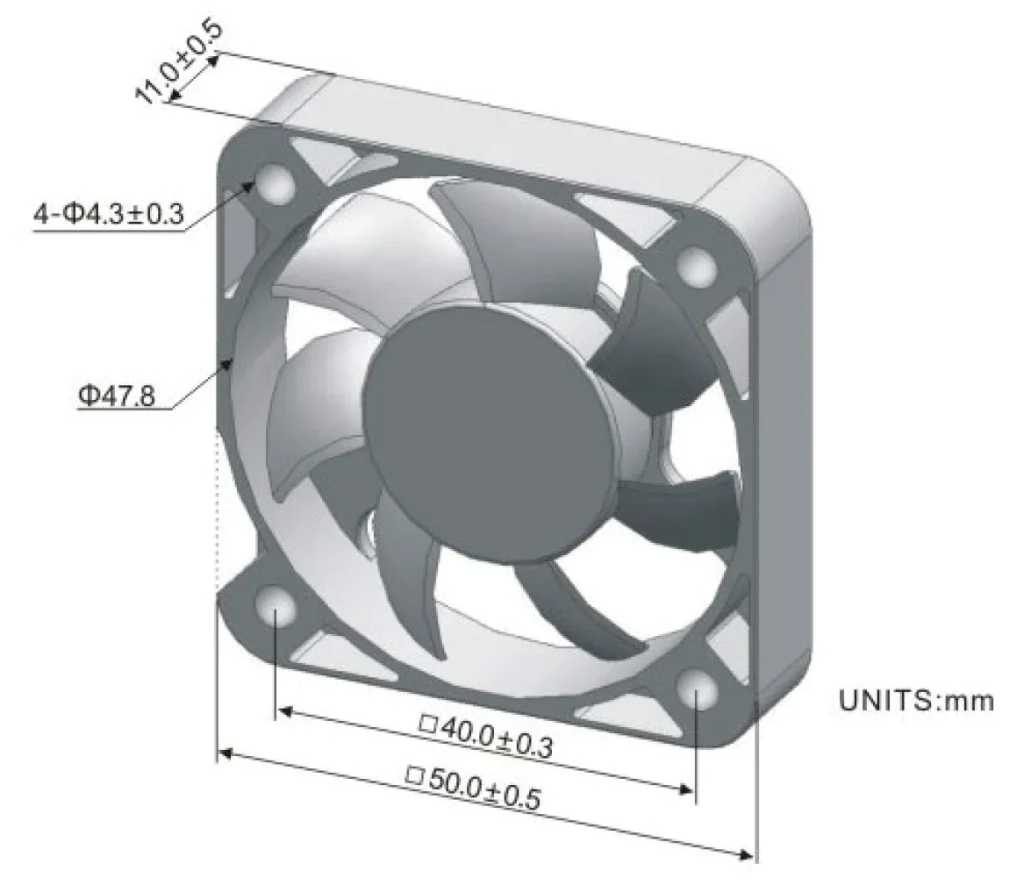

Drawing & Curve LWAD5010LL-04


Files for LWAD5010LL-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWAD5010LL-04
LWAD5010LL-04 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 50 mm, rated 12 V DC, maximum airflow 11.4 m³/h, maximum static pressure 15 Pa, noise 25.2 dB(A), input power 1.2 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWAD5010LL-04 |
|---|---|
| Series | LWAD5010 |
| Motor type | DC |
| Rated voltage | 12 V |
| Current | 0.1 A |
| Input power | 1.2 W |
| Speed | 4,000 rpm |
| Max. airflow | 11.4 m³/h |
| Max. static pressure | 15 Pa |
| Noise | 25.2 dB(A) |
| Frame size | 50 mm |
| Dimensions | 50x10mm |
| Impeller material | Plastic(UL94-VO) |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAD5010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
