Frame size50 mm2.0 in
Max airflow32.4 m³/h19 CFM
Max static pressure64 Pa0.26 in. wg
Voltage12 V
Speed6,000 rpm
Input power2.88 W
Noise36.9 dB(A)

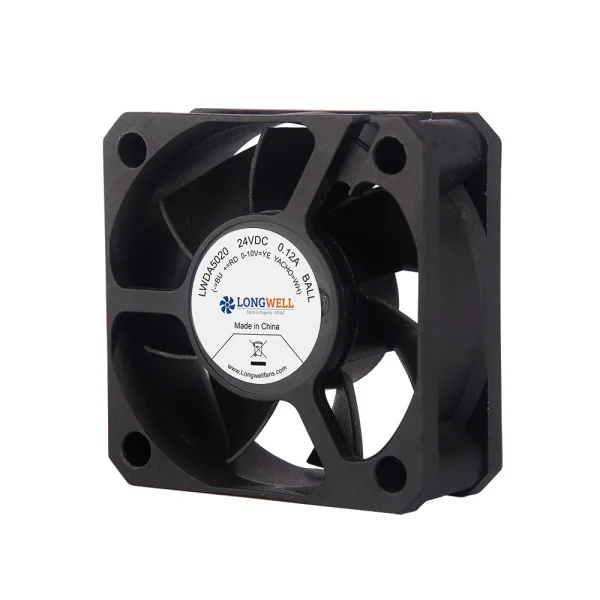

LWAD5020LH-02 DC Axial Cooling Fan 50 mm

50 mm | DC | Max airflow 32.4 m³/h | Max static pressure 64 Pa | 36.9 dB(A)

SKU: LWAD5020LH-02 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 50–70 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD5020LH-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD5020LH-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

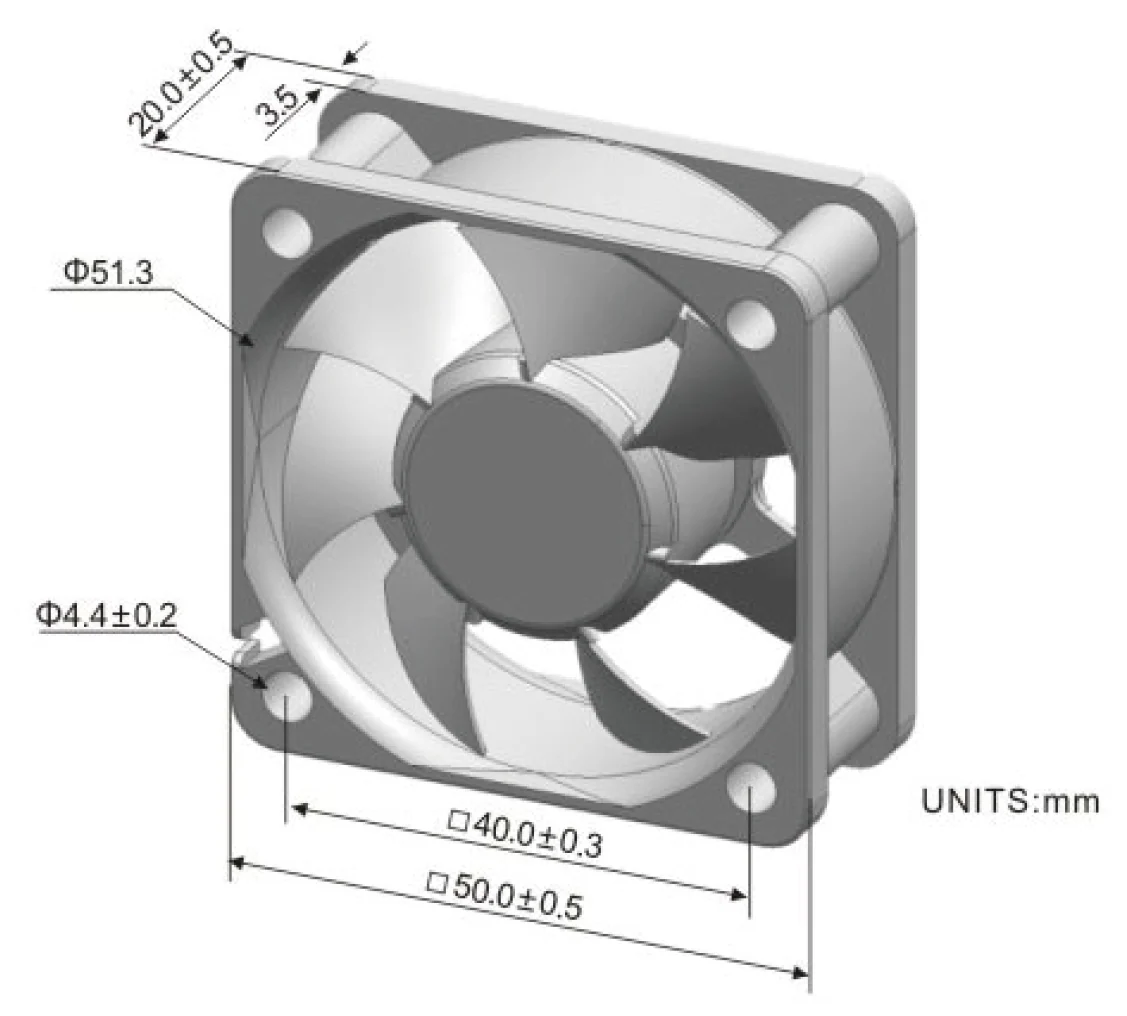

LWAD5020LH-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD5020LH-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD5020LH-02 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 50 mm, rated 12 V DC, maximum airflow 32.4 m³/h, maximum static pressure 64 Pa, noise 36.9 dB(A), input power 2.88 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD5020LH-02
Series	LWAD5020
Motor type	DC
Rated voltage	12 V
Current	0.24 A
Input power	2.88 W
Speed	6,000 rpm
Max. airflow	32.4 m³/h
Max. static pressure	64 Pa
Noise	36.9 dB(A)
Frame size	50 mm
Dimensions	50x20mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD5020: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (50 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD5020LH-02 this model	32.4 m³/h	64 Pa	6,000 rpm	2.88 W	36.9 dB(A)	12 V
LWCD-50150MN-07	88 m³/h	38 Pa	2,000 rpm	2.4 W	37 dB(A)	24 V	View
LWCD-50190MN-07	110 m³/h	36 Pa	2,000 rpm	3.36 W	38 dB(A)	24 V	View
LWCD-50190LN-06	110 m³/h	36 Pa	2,000 rpm	3.36 W	38 dB(A)	12 V	View
LWCD-50250MN-07	139 m³/h	34 Pa	2,000 rpm	4.32 W	39 dB(A)	24 V	View
LWCD-50250LN-06	139 m³/h	34 Pa	2,000 rpm	4.32 W	39 dB(A)	12 V	View
LWCD-50290MN-07	161 m³/h	30 Pa	2,000 rpm	5.28 W	40 dB(A)	24 V	View
LWCD-50290LN-06	161 m³/h	30 Pa	2,000 rpm	5.28 W	40 dB(A)	12 V	View
LWCD-50350MN-07	198 m³/h	26 Pa	2,000 rpm	6.24 W	41 dB(A)	24 V	View
LWCD-50350LN-06	198 m³/h	26 Pa	2,000 rpm	6.24 W	41 dB(A)	12 V	View
LWCD-50420MN-07	232 m³/h	20 Pa	2,000 rpm	7.2 W	42 dB(A)	24 V	View
LWCD-50420LN-06	232 m³/h	20 Pa	2,000 rpm	7.2 W	42 dB(A)	12 V	View
LWCD-50530MN-06	288 m³/h	21 Pa	2,000 rpm	7.92 W	43 dB(A)	24 V	View
LWCD-50610MN-06	332 m³/h	19 Pa	2,000 rpm	8.88 W	42 dB(A)	24 V	View
LWCD-50700MN-06	381 m³/h	20 Pa	2,000 rpm	9.84 W	43 dB(A)	24 V	View
