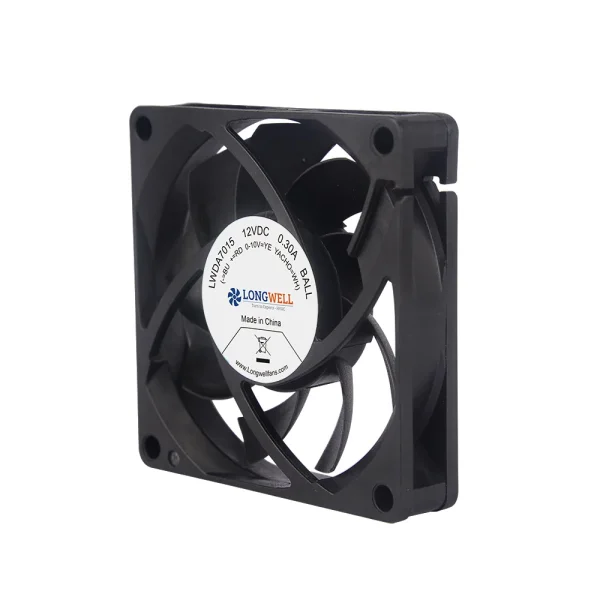

LWAD7015LL-04 product photo
LWAD7015ML-04 product photo
  • Frame size70 mm
  • Max airflow37.2 m³/h
  • Max static pressure20 Pa
  • Voltage12 V
  • Speed3,000 rpm
  • Input power2.4 W
  • Noise27 dB(A)

LWAD7015LL-04 DC Axial Cooling Fan 70 mm

70 mm | DC | Max airflow 37.2 m³/h | Max static pressure 20 Pa | 27 dB(A)

SKU: LWAD7015LL-04 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

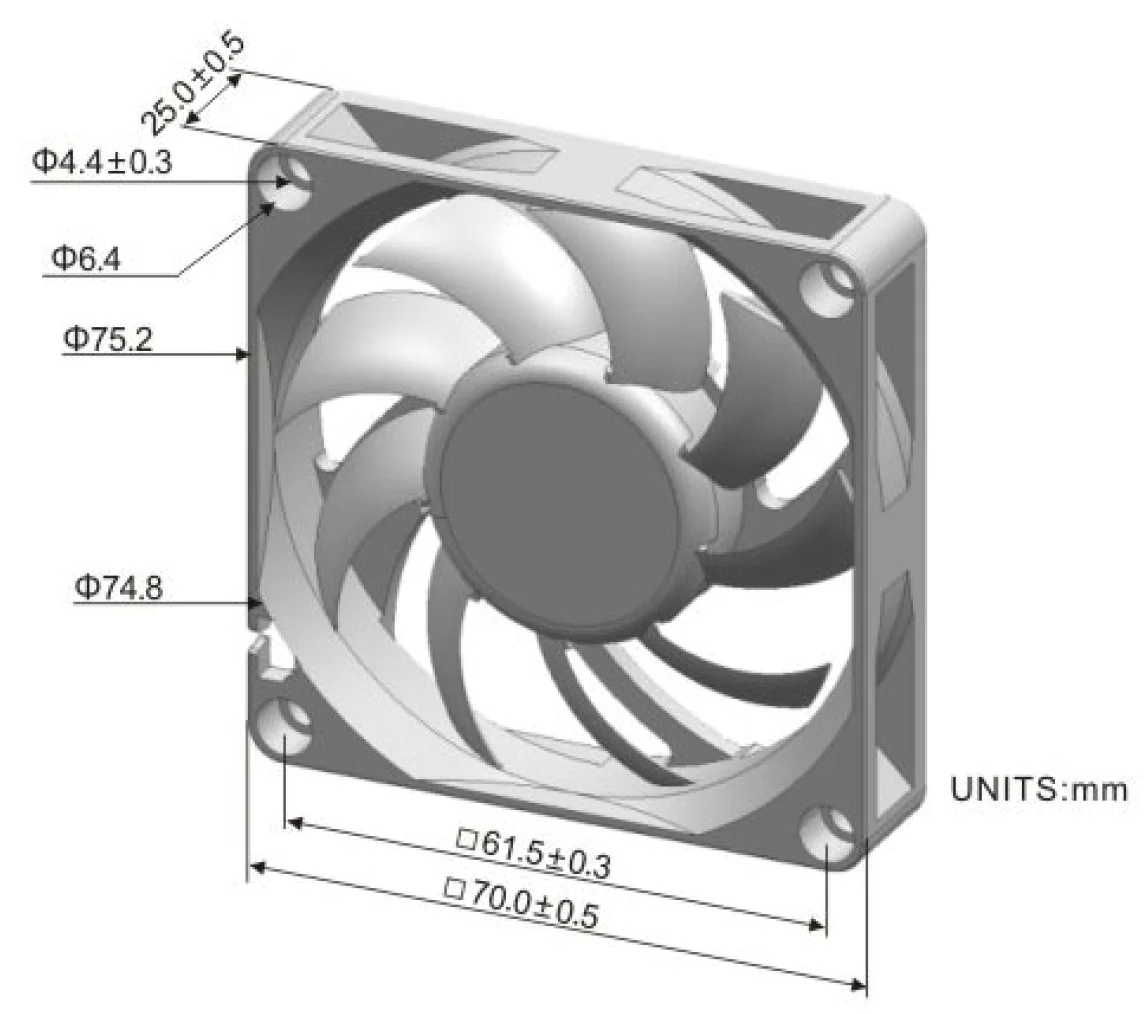

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAD7015LL-04 Dimensional drawing
Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWAD7015LL-04 Performance curve (P-Q)

Downloads for LWAD7015LL-04

PDFDatasheet · 684 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD7015LL-04 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 70 mm, rated 12 V DC, maximum airflow 37.2 m³/h, maximum static pressure 20 Pa, noise 27 dB(A), input power 2.4 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWAD7015LL-04
Series LWAD7015
Motor type DC
Rated voltage 12 V
Current 0.2 A
Input power 2.4 W
Speed 3,000 rpm
Max. airflow 37.2 m³/h
Max. static pressure 20 Pa
Noise 27 dB(A)
Humidity 5 % RH ~ 90% RH
Frame size 70 mm
Dimensions 70x15mm
Impeller material Plastic(UL94-VO)
Bearing Type : Two Ball Bearings

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAD7015: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (70 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAD7015LL-04 this model 37.2 m³/h20 Pa 3,000 rpm2.4 W27 dB(A)12 V
LWAD7025HD-05 69 m³/h51 Pa 4,000 rpm4.8 W40.6 dB(A)48 V View
LWAD7025MD-05 69 m³/h51 Pa 4,000 rpm4.8 W40.6 dB(A)24 V View
LWAD7025LD-05 69 m³/h51 Pa 4,000 rpm3.6 W40.6 dB(A)12 V View
LWAD7025HL-04 78 m³/h65 Pa 4,500 rpm7.2 W43.2 dB(A)48 V View
LWAD7025ML-04 78 m³/h65 Pa 4,500 rpm6 W43.2 dB(A)24 V View
LWAD7025LL-04 78 m³/h65 Pa 4,500 rpm4.8 W43.2 dB(A)12 V View
LWAD7025HM-03 86.4 m³/h80 Pa 5,000 rpm9.6 W45.4 dB(A)48 V View
LWAD7025MM-03 86.4 m³/h80 Pa 5,000 rpm7.2 W45.4 dB(A)24 V View
LWAD7025LM-03 86.4 m³/h80 Pa 5,000 rpm6 W45.4 dB(A)12 V View
LWAD7025HH-02 94.8 m³/h97 Pa 5,500 rpm12 W47.5 dB(A)48 V View
LWAD7025MH-02 94.8 m³/h97 Pa 5,500 rpm8.4 W47.5 dB(A)24 V View
LWAD7025LH-02 94.8 m³/h97 Pa 5,500 rpm7.2 W47.5 dB(A)12 V View
LWAD7025HX-01 103.8 m³/h115 Pa 6,000 rpm14.4 W49.4 dB(A)48 V View
LWAD7025MX-01 103.8 m³/h115 Pa 6,000 rpm9.6 W49.4 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
