Frame size92 mm3.6 in
Max airflow165 m³/h97 CFM
Max static pressure109 Pa0.44 in. wg
Voltage48 V
Speed4,000 rpm
Input power28.8 W
Noise49.6 dB(A)

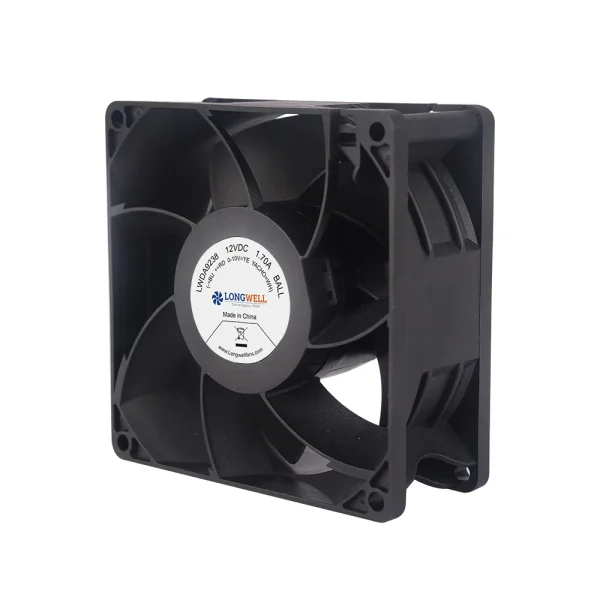

LWAD9238HL-04 DC Axial Cooling Fan 92 mm

92 mm | DC | Max airflow 165 m³/h | Max static pressure 109 Pa | 49.6 dB(A)

SKU: LWAD9238HL-04 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 80–92 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD9238HL-04

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD9238HL-04drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

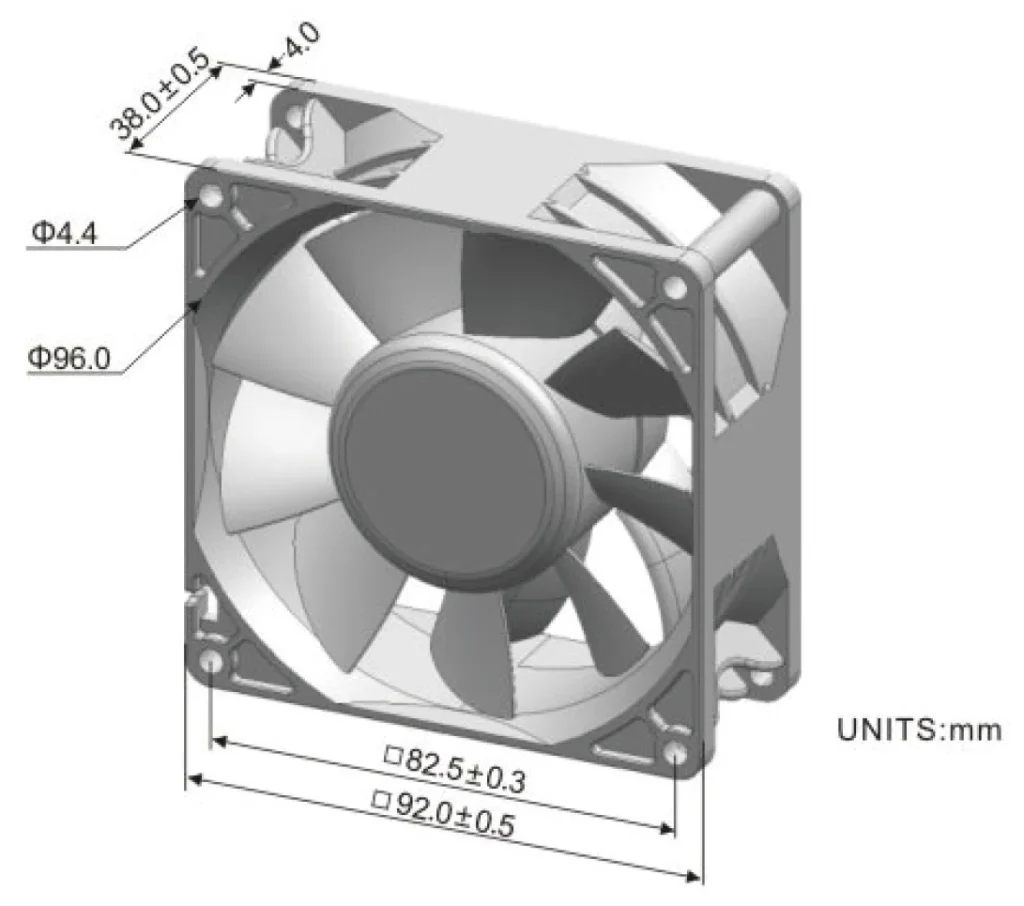

LWAD9238HL-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD9238HL-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD9238HL-04 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 92 mm, rated 48 V DC, maximum airflow 165 m³/h, maximum static pressure 109 Pa, noise 49.6 dB(A), input power 28.8 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD9238HL-04
Series	LWAD9238
Motor type	DC
Rated voltage	48 V
Current	0.6 A
Input power	28.8 W
Speed	4,000 rpm
Max. airflow	165 m³/h
Max. static pressure	109 Pa
Noise	49.6 dB(A)
Frame size	92 mm
Dimensions	92x38mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD9238: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (92 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD9238HL-04 this model	165 m³/h	109 Pa	4,000 rpm	28.8 W	49.6 dB(A)	48 V
LWAD9238HD-09	186.6 m³/h	197 Pa	7,000 rpm	19.2 W	58.2 dB(A)	48 V	View
LWAD9238MD-09	186.6 m³/h	197 Pa	7,000 rpm	14.4 W	58.2 dB(A)	24 V	View
LWAD9238LD-09	186.6 m³/h	197 Pa	7,000 rpm	14.4 W	58.2 dB(A)	12 V	View
LWAD9238HL-08	213.6 m³/h	257 Pa	8,000 rpm	28.8 W	61.1 dB(A)	48 V	View
LWAD9238ML-08	213.6 m³/h	257 Pa	8,000 rpm	19.2 W	61.1 dB(A)	24 V	View
LWAD9238LL-08	213.6 m³/h	257 Pa	8,000 rpm	18 W	61.1 dB(A)	12 V	View
LWAD9238HM-07	240 m³/h	325 Pa	9,000 rpm	38.4 W	63.6 dB(A)	48 V	View
LWAD9238MM-07	240 m³/h	325 Pa	9,000 rpm	24 W	63.6 dB(A)	24 V	View
LWAD9238LM-07	240 m³/h	325 Pa	9,000 rpm	24 W	63.6 dB(A)	12 V	View
