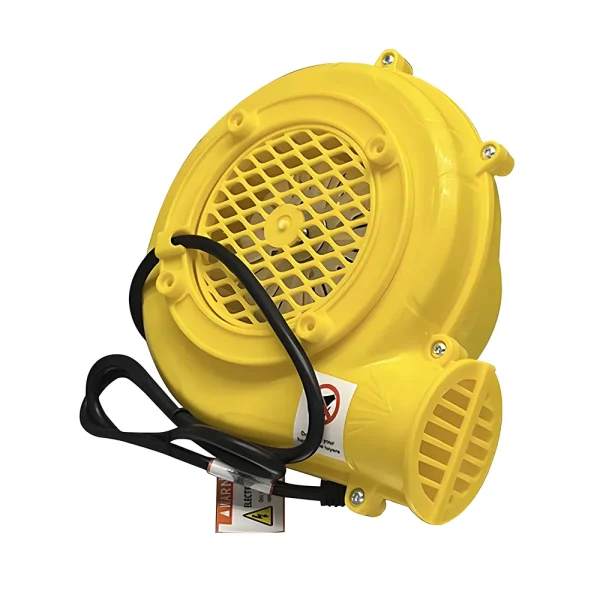

LWB-250E-01 is a LONGWELL Air Blower from the Air Blowers (Air Knife / Air Pump) range, frame size 31 mm, rated 230 V AC, maximum airflow 700 m³/h, maximum static pressure 900 Pa, input power 250 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWB-250E-01 |
|---|---|
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 250 W |
| Max. airflow | 700 m³/h |
| Max. static pressure | 900 Pa |
| Frame size | 31 mm |
| Nominal size | 90mm |
| Dimensions | 31×16×31cm |
| Net weight | 2.4kg |
| Gross weight | 2.8kg |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
