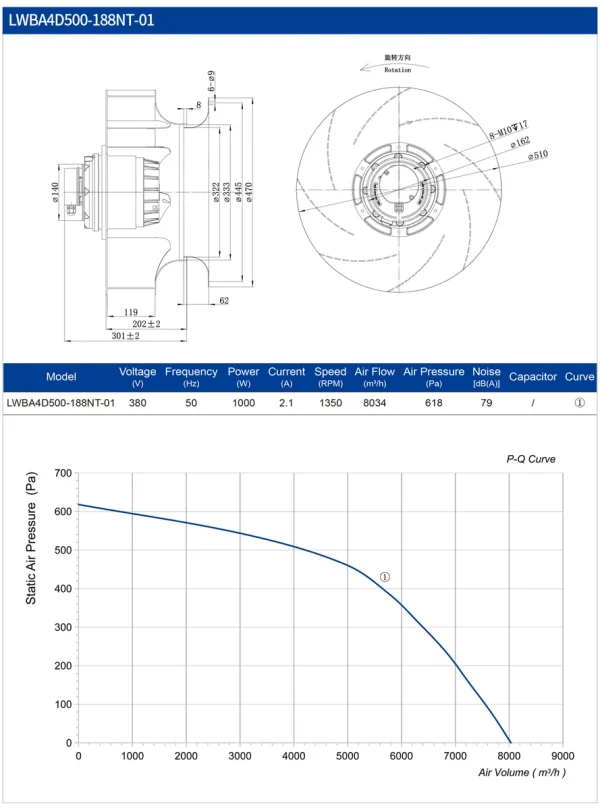

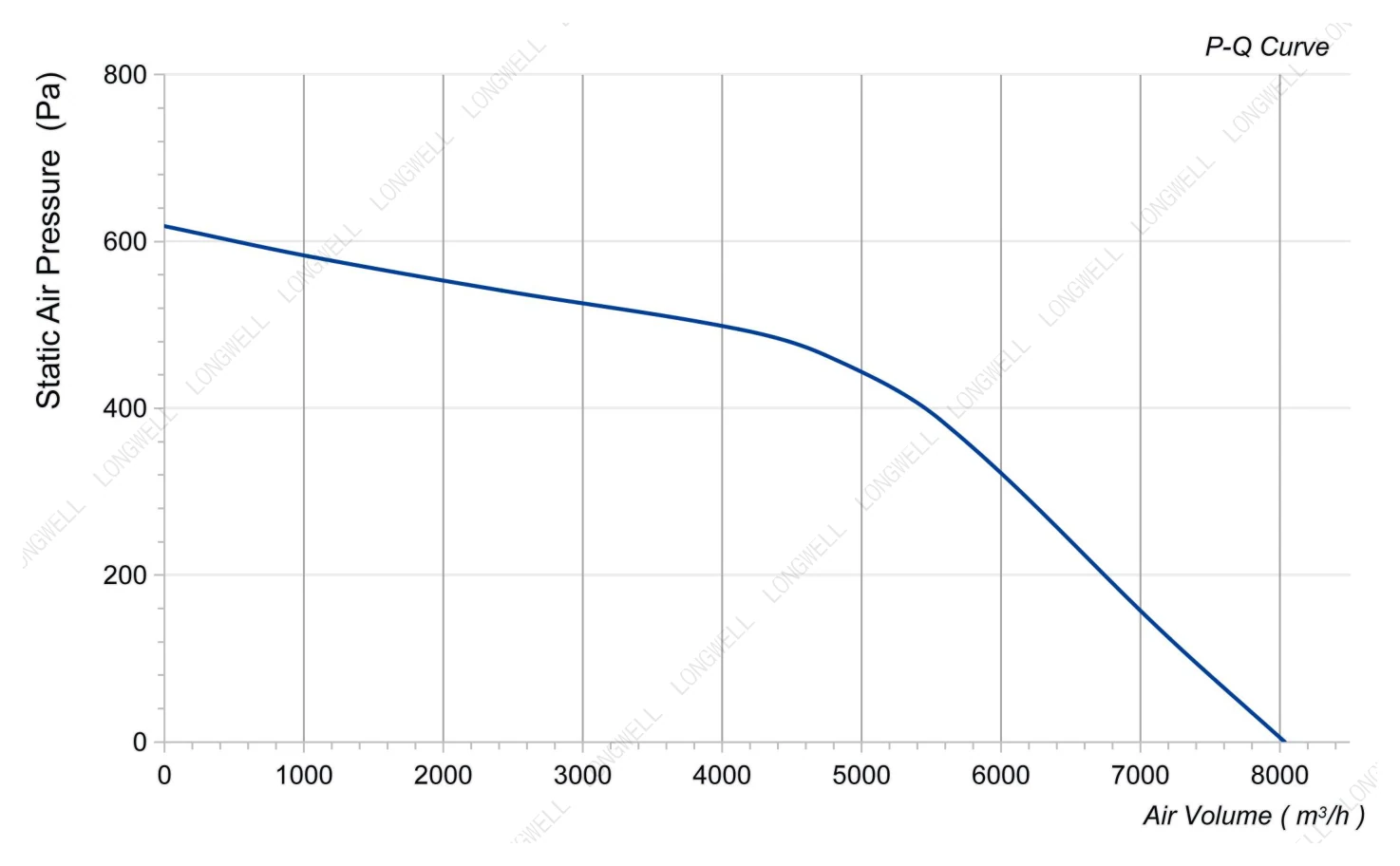

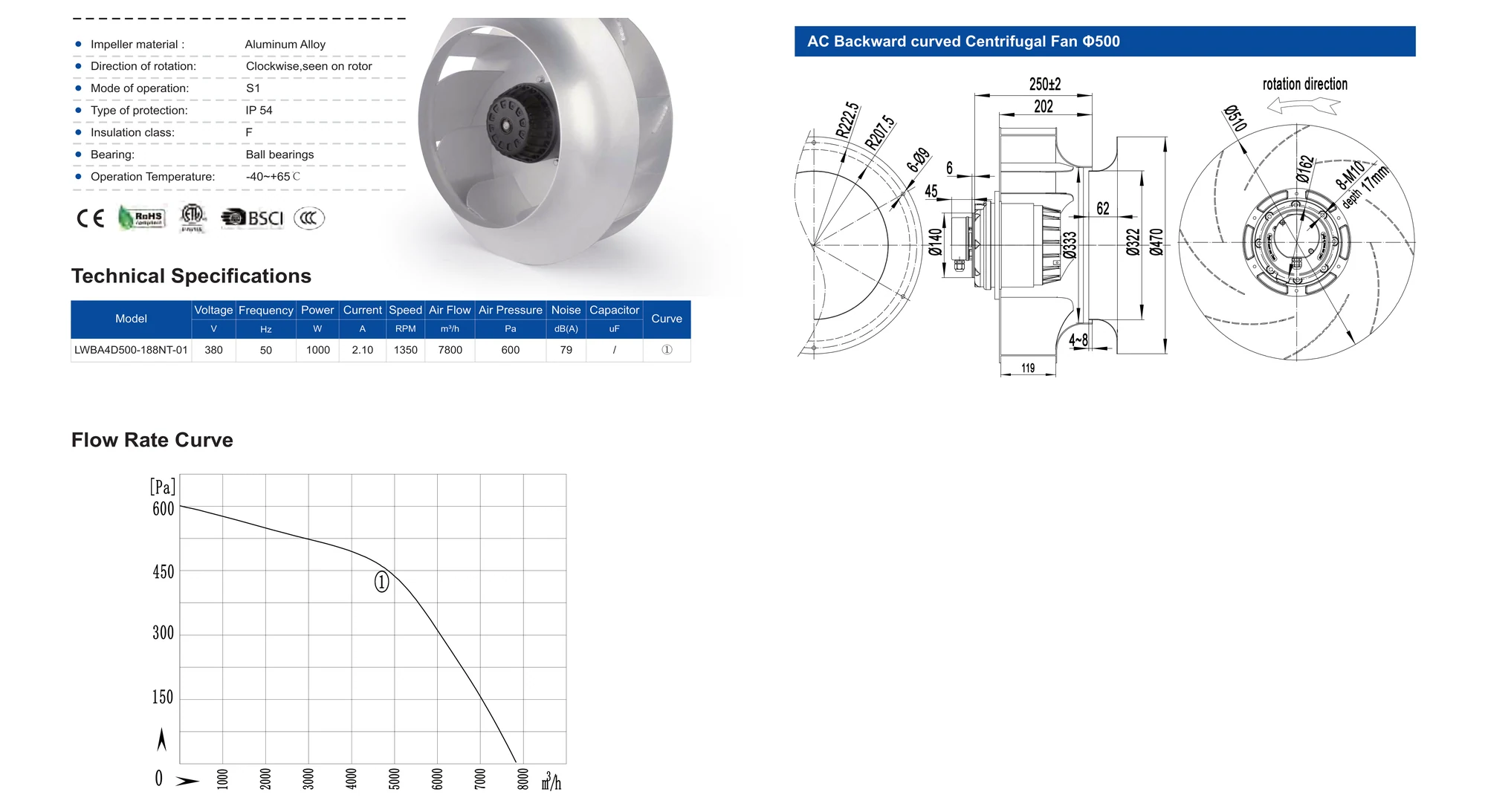

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ500 mm19.7 in
- Max airflow8,034 m³/h4,729 CFM
- Max static pressure618 Pa2.48 in. wg
- Voltage380 V
- Speed1,350 rpm
- Input power1,000 W1.34 hp
- Noise79 dB(A)
LWBA4D500-188NT-01 AC Backward Curved Centrifugal Fan Ø500 mm
Ø500 mm | AC | Max airflow 8,034 m³/h | Max static pressure 618 Pa | 79 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWBA4D500-188NT-01
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4D500-188NT-01 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø500 mm, rated 380 V AC, maximum airflow 8,034 m³/h, maximum static pressure 618 Pa, noise 79 dB(A), input power 1,000 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

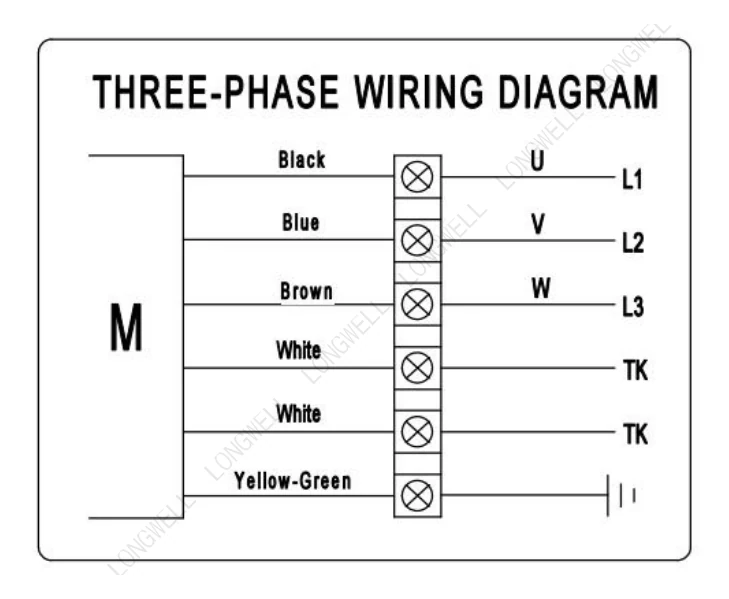

Technical data
| Model | LWBA4D500-188NT-01 |
|---|---|
| Series | LWBA4D500 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Current | 2.1 A |
| Input power | 1,000 W |
| Speed | 1,350 rpm |
| Max. airflow | 8,034 m³/h |
| Max. airflow (CFM) | 4,726 CFM |
| Max. static pressure | 618 Pa |
| Noise | 79 dB(A) |
| Ambient temperature | -40 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø500 mm |
| Rotor diameter | 188 |
| Impeller material | Aluminum Alloy |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mate |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4D500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø500 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA4D500-188NT-01 this model | 8,034 m³/h | 618 Pa | 1,350 rpm | 1,000 W | 79 dB(A) | 380 V | |
| LWA-500(20")U(S)M-01 | 150 m³/h | see curve | 1,350 rpm | 200 W | — | 110-120 V | View |
| LWA-500(20")U(S)M-02 | 165 m³/h | see curve | 1,350 rpm | 250 W | — | 110-120 V | View |
| LWBA6D500-138NT-03 | 5,356 m³/h | 361 Pa | 950 rpm | 450 W | 63 dB(A) | 380 V | View |
| LWEA500S(T)M-069E | 5,700 m³/h | see curve | 1,450 rpm | 550 W | — | 220 V | View |
| LWEAF500-01 | 5,700 m³/h | see curve | 1,450 rpm | 550 W | — | 220 V | View |
| LWBA6D500-138NT-04 | 5,817 m³/h | 412 Pa | 1,050 rpm | 550 W | 65 dB(A) | 380 V | View |
| LWMFAF500-01 | 7,800 m³/h | 2,250 Pa | — | — | 91 dB(A) | 380 V | View |
| LWFA-E-500-01 | 8,380 m³/h | 850 Pa | — | — | 75 dB(A) | — | View |
| LWFA6D500-188NT-01 | 9,064 m³/h | 916.7 Pa | 900 rpm | 4,400 W | 75 dB(A) | 380 V | View |
| LWEA500TM-164E | 9,133 m³/h | 185 Pa | 1,450 rpm | 750 W | — | 380 V | View |
| LWAA4D500S-7MKB-11 | 9,270 m³/h | see curve | 1,350 rpm | 800 W | 80 dB(A) | 380/400 V | View |
| LWBA4D500-188NT-05 | 9,377 m³/h | 872 Pa | 1,350 rpm | 1,300 W | 81.9 dB(A) | 380 V | View |
| LWBA4D500-188NT-02 | 9,785 m³/h | 773 Pa | 1,400 rpm | 1,500 W | 80 dB(A) | 380 V | View |
| LWFA-E-500-02 | 11,000 m³/h | 910 Pa | — | — | 82 dB(A) | — | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
