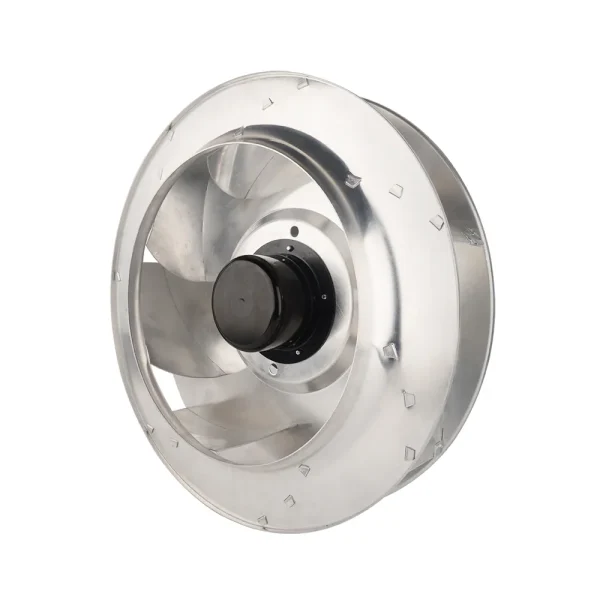

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ400 mm15.7 in
Max airflow3,059 m³/h1,800 CFM
Max static pressure433 Pa1.74 in. wg
Voltage48 V
Speed1,260 rpm
Input power190 W
Noise73 dB(A)

LWBD3G400-102NH-03 DC Backward Curved Centrifugal Fan Ø400 mm

Ø400 mm | DC | Max airflow 3,059 m³/h | Max static pressure 433 Pa | 73 dB(A)

SKU: LWBD3G400-102NH-03 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø400–560 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueDC DC Backward centrifugal fans · SKU on PDF p. 16

All files for LWBD3G400-102NH-034 files · direct download

PDFFull product catalogue · model on PDF p. 16 WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWBD3G400-102NH-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBD3G400-102NH-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBD3G400-102NH-03

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 48 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWBD3G400-102NH-03

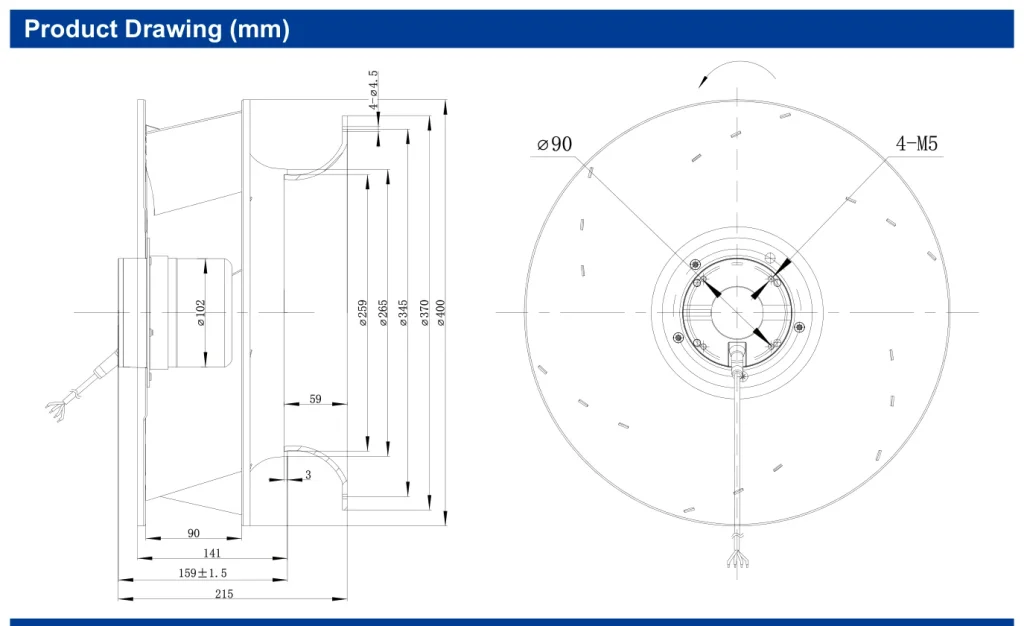

LWBD3G400-102NH-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

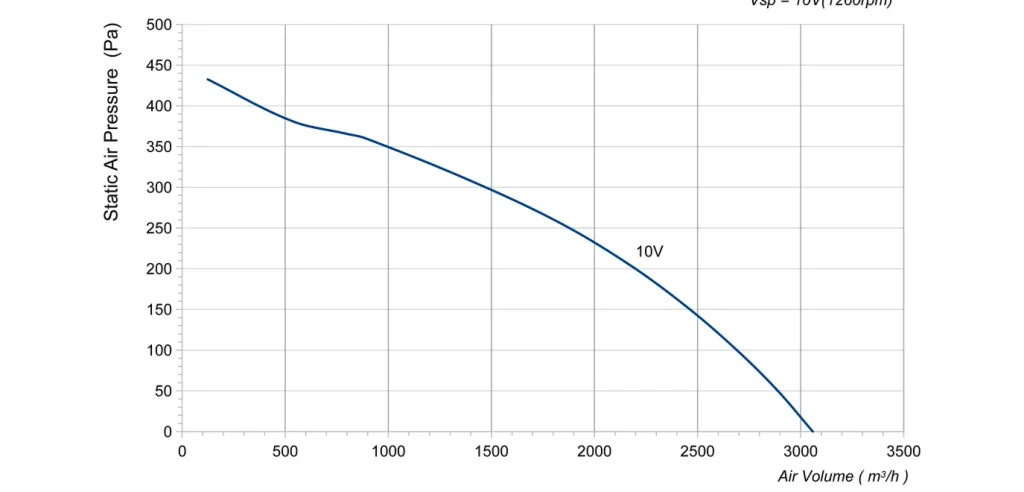

LWBD3G400-102NH-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWBD3G400-102NH-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBD3G400-102NH-03

LWBD3G400-102NH-03 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø400 mm, rated 48 V DC, maximum airflow 3,059 m³/h, maximum static pressure 433 Pa, noise 73 dB(A), input power 190 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWBD3G400-102NH-03
Series	LWBD3G400
Motor type	DC
Rated voltage	48 V
Current	4 A
Input power	190 W
Speed	1,260 rpm
Max. airflow	3,059 m³/h
Max. static pressure	433 Pa
Noise	73 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø400 mm
Rotor diameter	102 mm
Impeller material	Sheet Aluminum
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBD3G400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
