  • ImpellerØ150 mm5.9 in
  • Max airflow546 m³/h321 CFM
  • Max static pressure464 Pa1.86 in. wg
  • Voltage230 V
  • Speed2,300 rpm
  • Input power183 W
  • Noise63 dB(A)

LWFA2E150-092SS-01 AC Single Inlet Forward Centrifugal Blower Ø150 mm

Ø150 mm | AC | Max airflow 546 m³/h | Max static pressure 464 Pa | 63 dB(A)

SKU: LWFA2E150-092SS-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

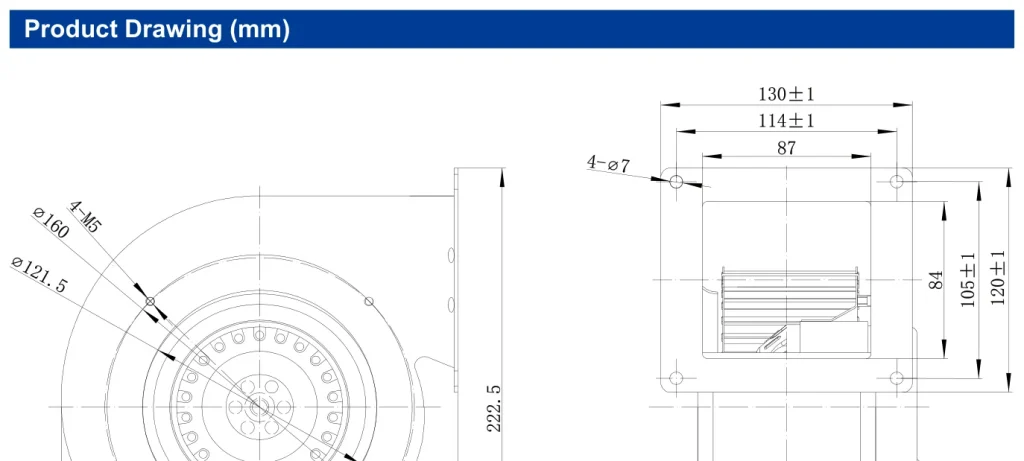

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWFA2E150-092SS-01 Dimensional drawing

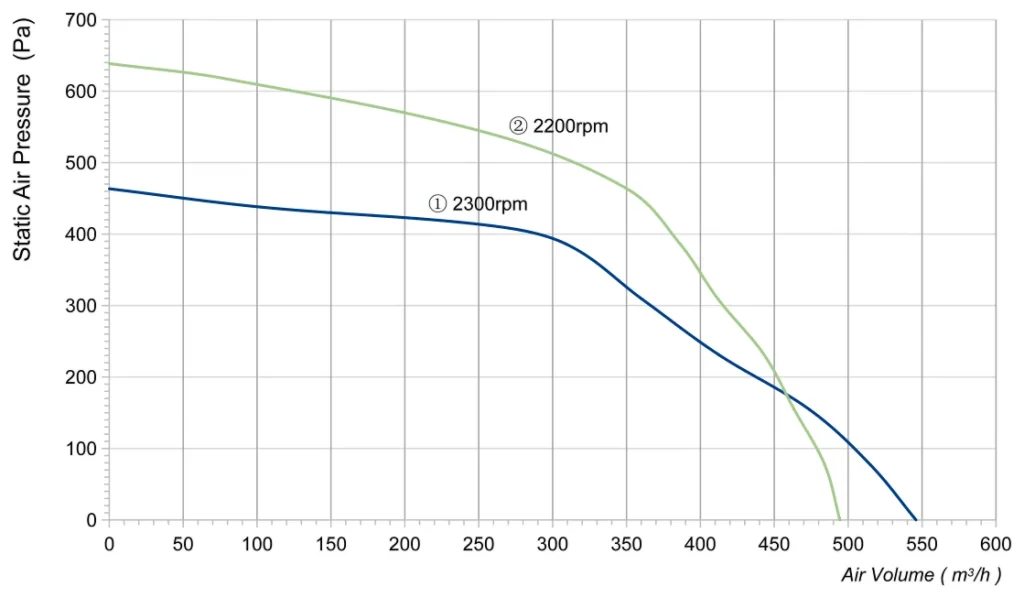

Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWFA2E150-092SS-01 Performance curve (P-Q)

Series catalogue

PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MB

Covers the whole series, not only this model.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA2E150-092SS-01 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø150 mm, rated 230 V AC, maximum airflow 546 m³/h, maximum static pressure 464 Pa, noise 63 dB(A), input power 183 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWFA2E150-092SS-01
Series LWFA2E150
Motor type AC
Phase 1-phase
Rated voltage 230 V
Frequency 50 Hz
Current 0.83 A
Input power 183 W
Speed 2,300 rpm
Max. airflow 546 m³/h
Max. static pressure 464 Pa
Noise 63 dB(A)
Ambient temperature -30 ~ 60 °C
Impeller diameter Ø150 mm
Rotor diameter 92
Impeller material Galvanised sheet steel
Insulation class F
Bearing Maintenance-free ball bearings
Duty S1

Typical applications

  • Air handling units (AHU) and rooftop units (RTU)
  • Data-center CRAH / CRAC units and fan walls
  • Dust extraction and process ventilation
  • Fan filter units and air purifiers

Series LWFA2E150: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø150 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWFA2E150-092SS-01 this model 546 m³/h464 Pa 2,300 rpm183 W63 dB(A)230 V
LWDA-150 (6")U-MWN-01 437 m³/hsee curve 3,400 rpm55 W58 dB(A)110-120 V View
LWDA-150 (6")U-MWN-03 437 m³/hsee curve 3,400 rpm55 W53 dB(A)110-120 V View
LWDA-150S-MBN-12 457 m³/h368 Pa 2,160 rpm72 W61 dB(A)230 V View
LWDA-150(6")S-PWN-12 530 m³/h137 Pa 2,050 rpm41 W30 dB(A)230 V View
LWDA-150(6")U-PWN-14 535 m³/h302 Pa 2,050 rpm44 W30 dB(A)115 V View
LWDA-150S-PWN-13 556 m³/h309 Pa 2,550 rpm80 W27 dB(A)230 V View
LWDA-150 (6")S-MWN-02 620 m³/hsee curve 2,900 rpm41 W55 dB(A)220-240 V View
LWDA-150 (6")S-MWN-04 620 m³/hsee curve 2,900 rpm41 W50 dB(A)220-240 V View
LWDA-150(6")S-PWN-11 660 m³/h168 Pa 2,400 rpm59 W32 dB(A)230 V View
LWDA-150(6")U-PWN-13 674 m³/h355 Pa 2,480 rpm59 W32 dB(A)115 V View
LWDA-150(6")S-MWN-08 780 m³/h70 Pa 2,800 rpm40 W52 dB(A)220 V View
LWCA-150700SN-06 2,500 m³/h85 Pa 800 rpm180 W71 dB(A)230 V View
LWCA-1501000SN-06 3,000 m³/h110 Pa 800 rpm195 W72 dB(A)230 V View
LWCA-1501200SN-06 4,000 m³/h135 Pa 800 rpm210 W75 dB(A)230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
