Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

Frame size50 mm2.0 in
Max airflow4.8 m³/h3 CFM
Max static pressure52 Pa0.21 in. wg
Voltage24 V
Speed4,500 rpm
Input power0.96 W
Noise27.9 dB(A)

LWFD5010MD-05 DC Centrifugal Blower 50 mm

50 mm | DC | Max airflow 4.8 m³/h | Max static pressure 52 Pa | 27.9 dB(A)

SKU: LWFD5010MD-05 Categories: Cooling Fans & Blowers, DC Centrifugal Blowers, Frame Ø40–60 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWFD5010MD-051 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Aspirating smoke detection Medical electronics Fuel cells Dishwashers All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWFD5010MD-05

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFD5010MD-05datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFD5010MD-05

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

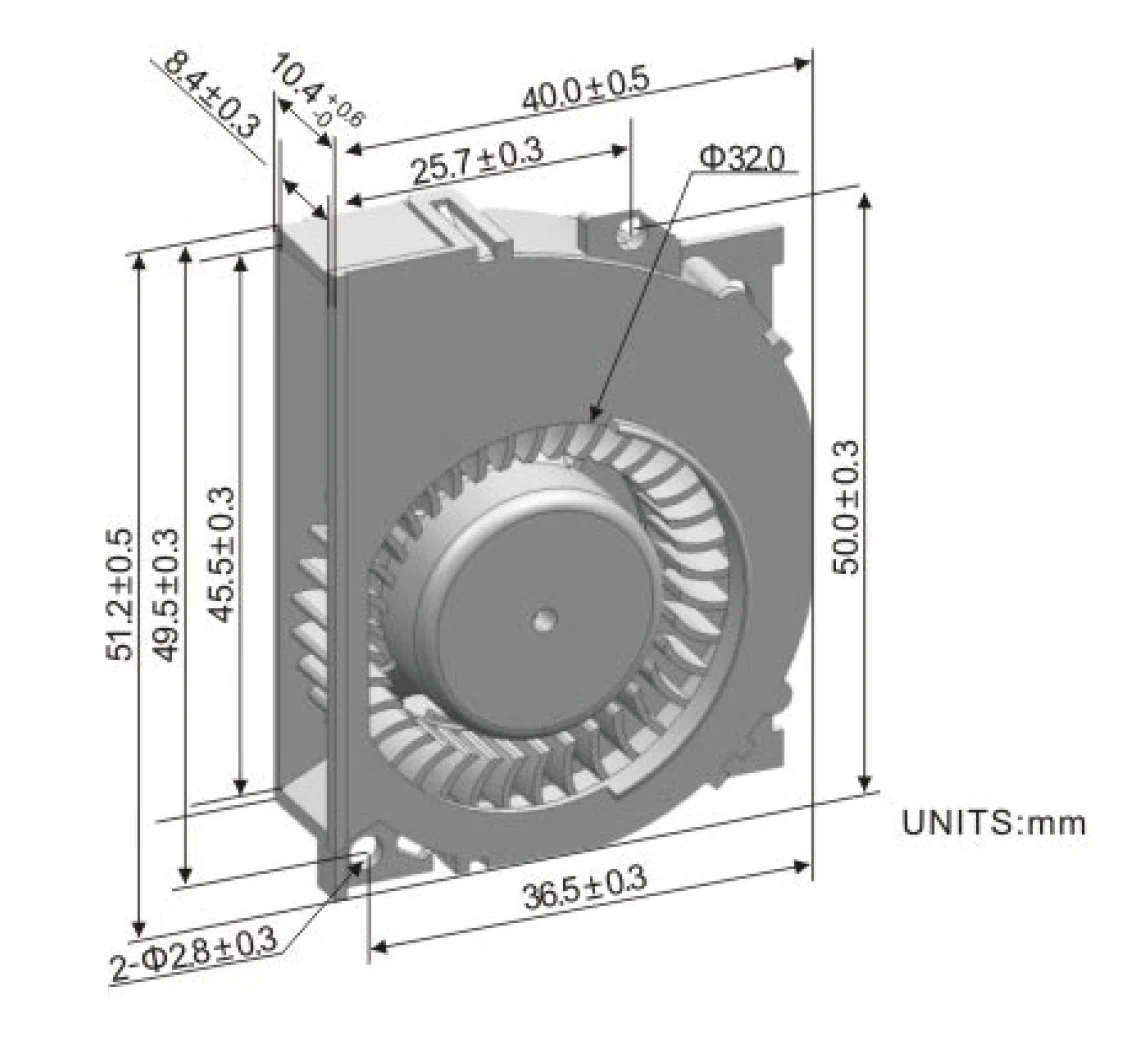

Dimensional drawing LWFD5010MD-05

LWFD5010MD-05 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWFD5010MD-05: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFD5010MD-05

LWFD5010MD-05 is a LONGWELL DC Centrifugal Blower from the DC Centrifugal Blowers range, frame size 50 mm, rated 24 V DC, maximum airflow 4.8 m³/h, maximum static pressure 52 Pa, noise 27.9 dB(A), input power 0.96 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWFD5010MD-05
Series	LWFD5010
Motor type	DC
Rated voltage	24 V
Current	0.04 A
Input power	0.96 W
Speed	4,500 rpm
Max. airflow	4.8 m³/h
Max. static pressure	52 Pa
Noise	27.9 dB(A)
Frame size	50 mm
Dimensions	50x10mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWFD5010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWFD5010MD-05

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same frame size (50 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFD5010MD-05 this model	4.8 m³/h	52 Pa	4,500 rpm	0.96 W	27.9 dB(A)	24 V
LWFD5025MD-05	7.2 m³/h	56 Pa	3,500 rpm	1.44 W	28 dB(A)	24 V	View
LWFD5025LD-05	7.2 m³/h	56 Pa	3,500 rpm	1.2 W	28 dB(A)	12 V	View
LWFD5025KD-05	7.2 m³/h	56 Pa	3,500 rpm	1 W	28 dB(A)	5 V	View
LWFD5025ML-04	8.4 m³/h	73 Pa	4,000 rpm	1.92 W	30.9 dB(A)	24 V	View
LWFD5025LL-04	8.4 m³/h	73 Pa	4,000 rpm	1.44 W	30.9 dB(A)	12 V	View
LWFD5025KL-04	8.4 m³/h	73 Pa	4,000 rpm	1.25 W	30.9 dB(A)	5 V	View
LWFD5025MM-03	9 m³/h	93 Pa	4,500 rpm	2.4 W	33.4 dB(A)	24 V	View
LWFD5025LM-03	9 m³/h	93 Pa	4,500 rpm	1.8 W	33.4 dB(A)	12 V	View
LWFD5025KM-03	9 m³/h	93 Pa	4,500 rpm	1.5 W	33.4 dB(A)	5 V	View
LWFD5025MH-02	10.2 m³/h	114 Pa	5,000 rpm	2.88 W	35.7 dB(A)	24 V	View
LWFD5025LH-02	10.2 m³/h	114 Pa	5,000 rpm	2.4 W	35.7 dB(A)	12 V	View
LWFD5025KH-02	10.2 m³/h	114 Pa	5,000 rpm	2 W	35.7 dB(A)	5 V	View
LWFD5025MX-01	10.8 m³/h	128 Pa	5,300 rpm	4.32 W	37 dB(A)	24 V	View
LWFD5025LX-01	10.8 m³/h	128 Pa	5,300 rpm	3 W	37 dB(A)	12 V	View
