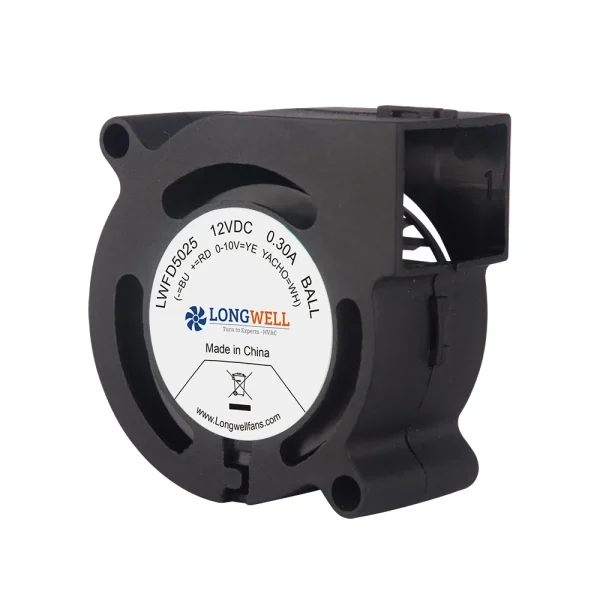

LWFD5025KX-01 product photo
LWFD5025KX-01 product photo
LWFD5025ML-04 product photo
  • Frame size50 mm
  • Max airflow10.8 m³/h
  • Max static pressure128 Pa
  • Voltage5 V
  • Speed5,300 rpm
  • Input power2.5 W
  • Noise37 dB(A)

LWFD5025KX-01 DC Centrifugal Blower 50 mm

50 mm | DC | Max airflow 10.8 m³/h | Max static pressure 128 Pa | 37 dB(A)

SKU: LWFD5025KX-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

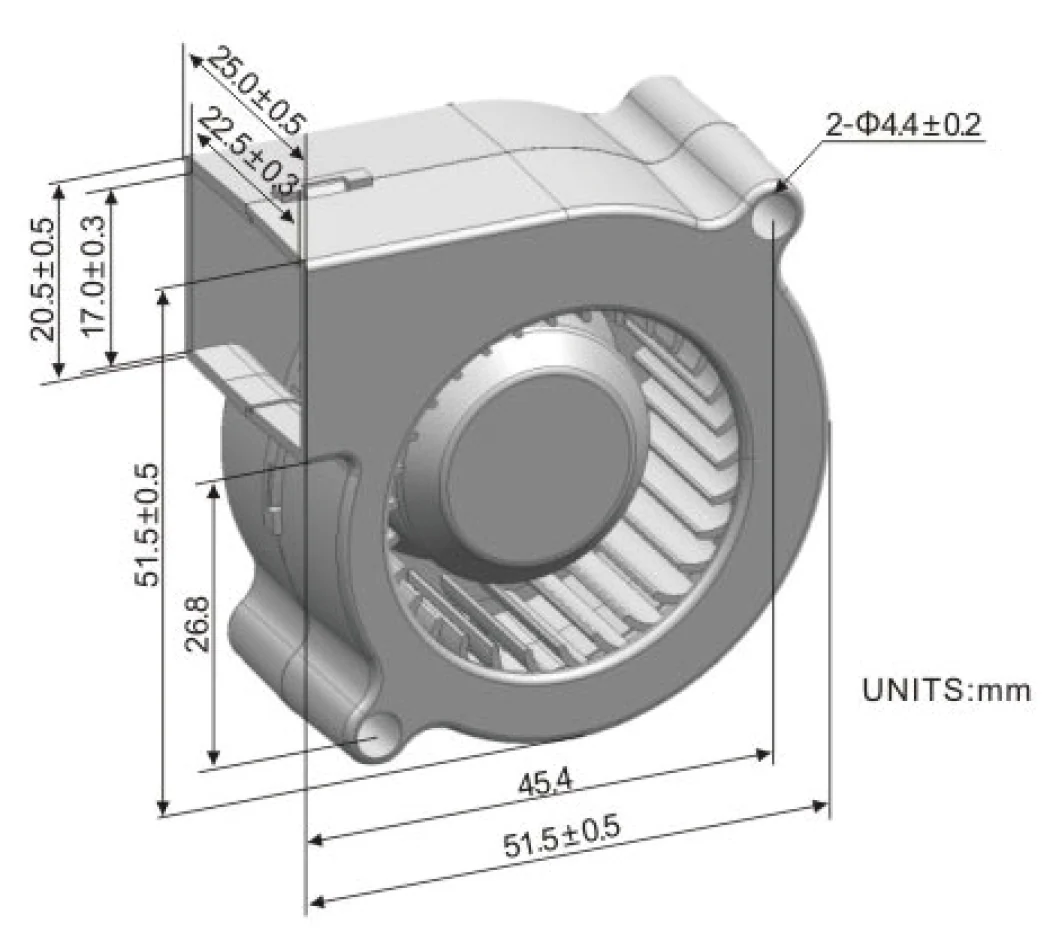

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWFD5025KX-01 Dimensional drawing
Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWFD5025KX-01 Performance curve (P-Q)

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFD5025KX-01 is a LONGWELL DC Centrifugal Blower from the DC Centrifugal Blowers range, frame size 50 mm, rated 5 V DC, maximum airflow 10.8 m³/h, maximum static pressure 128 Pa, noise 37 dB(A), input power 2.5 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWFD5025KX-01
Series LWFD5025
Motor type DC
Rated voltage 5 V
Current 0.5 A
Input power 2.5 W
Speed 5,300 rpm
Max. airflow 10.8 m³/h
Max. static pressure 128 Pa
Noise 37 dB(A)
Frame size 50 mm
Dimensions 50x25mm
Impeller material Plastic(UL94-VO)

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWFD5025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (50 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWFD5025KX-01 this model 10.8 m³/h128 Pa 5,300 rpm2.5 W37 dB(A)5 V
LWCD-50150MN-07 88 m³/h38 Pa 2,000 rpm2.4 W37 dB(A)24 V View
LWCD-50190MN-07 110 m³/h36 Pa 2,000 rpm3.36 W38 dB(A)24 V View
LWCD-50190LN-06 110 m³/h36 Pa 2,000 rpm3.36 W38 dB(A)12 V View
LWCD-50250MN-07 139 m³/h34 Pa 2,000 rpm4.32 W39 dB(A)24 V View
LWCD-50250LN-06 139 m³/h34 Pa 2,000 rpm4.32 W39 dB(A)12 V View
LWCD-50290MN-07 161 m³/h30 Pa 2,000 rpm5.28 W40 dB(A)24 V View
LWCD-50290LN-06 161 m³/h30 Pa 2,000 rpm5.28 W40 dB(A)12 V View
LWCD-50350MN-07 198 m³/h26 Pa 2,000 rpm6.24 W41 dB(A)24 V View
LWCD-50350LN-06 198 m³/h26 Pa 2,000 rpm6.24 W41 dB(A)12 V View
LWCD-50420MN-07 232 m³/h20 Pa 2,000 rpm7.2 W42 dB(A)24 V View
LWCD-50420LN-06 232 m³/h20 Pa 2,000 rpm7.2 W42 dB(A)12 V View
LWCD-50530MN-06 288 m³/h21 Pa 2,000 rpm7.92 W43 dB(A)24 V View
LWCD-50610MN-06 332 m³/h19 Pa 2,000 rpm8.88 W42 dB(A)24 V View
LWCD-50700MN-06 381 m³/h20 Pa 2,000 rpm9.84 W43 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
