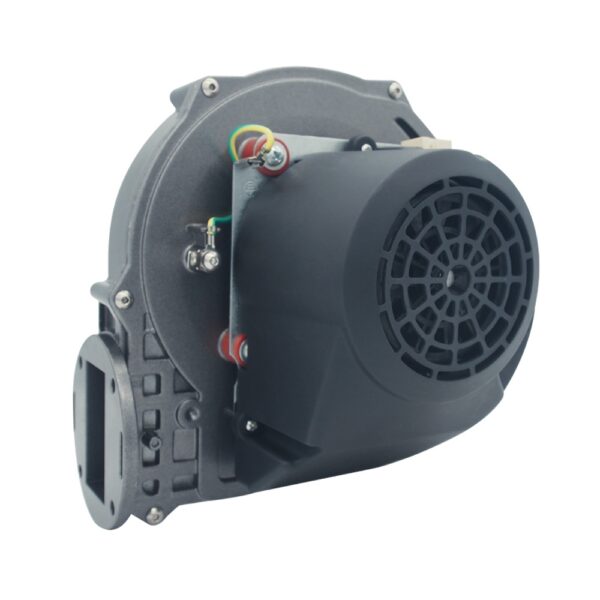

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- Max airflow190 m³/h112 CFM
- Max static pressure3,500 Pa14.05 in. wg
- Voltage230 V
- Speed8,500 rpm
- Input power130 W
LWGE148S-02 Gas Blower
Max airflow 190 m³/h | Max static pressure 3,500 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
PDFRequest datasheetsent by an engineer within 1 business dayPDFFull product catalogueAC DC EC AC DC EC Gas Blower · SKU on PDF p. 15
All files for LWGE148S-023 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Drying, heat treatment & ovens · Range hoods & ovens — all case studies on longwellfans.com
Typical applications: Heating equipment · Fan burners · Commercial condensing boilers · Condensing boilers — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWGE148S-02 is a LONGWELL Gas Blower from the Gas Blowers range, rated 230 V, maximum airflow 190 m³/h, maximum static pressure 3,500 Pa, input power 130 W.
Technical data
| Model | LWGE148S-02 |
|---|---|
| Phase | 1-phase |
| Rated voltage | 230 V |
| Input power | 130 W |
| Speed | 8,500 rpm |
| Max. airflow | 190 m³/h |
| Max. static pressure | 3,500 Pa |
Typical applications
- Condensing gas boilers
- Gas water heaters
- Premix burners
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
