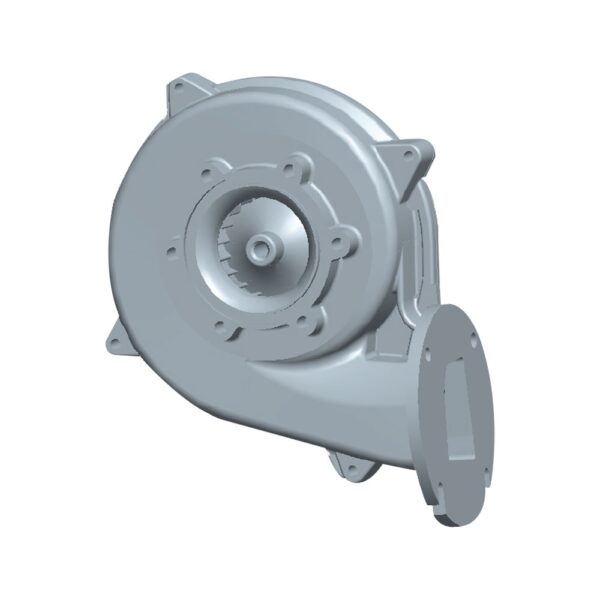

LWGE77S-01 is a LONGWELL Gas Blower from the Gas Blowers range, rated 230 V, maximum airflow 87 m³/h, maximum static pressure 2,350 Pa.
Technical data
| Model | LWGE77S-01 |
|---|---|
| Phase | 1-phase |
| Rated voltage | 230 V |
| Speed | 10,000 rpm |
| Max. airflow | 87 m³/h |
| Max. static pressure | 2,350 Pa |
Typical applications
- Condensing gas boilers
- Gas water heaters
- Premix burners
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
