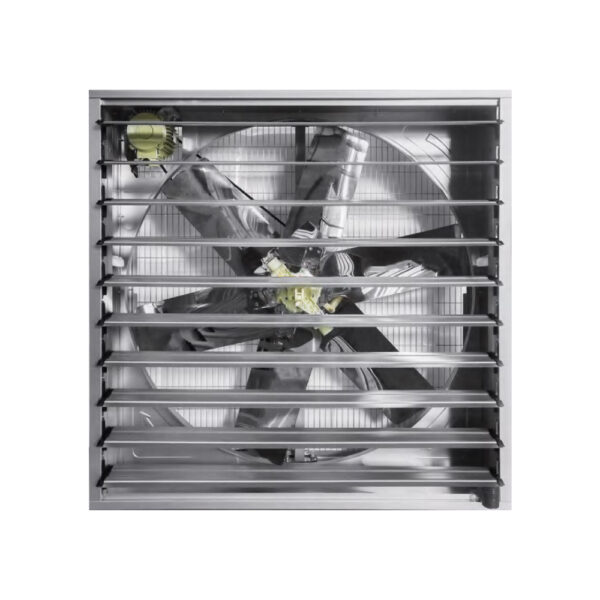

LWPVB-1270(50")T-03 is a LONGWELL Poultry Farm Fan from the Poultry & Livestock Fans range, rated 380 V, maximum airflow 40,125 m³/h, input power 1,100 W.
Technical data
| Model | LWPVB-1270(50")T-03 |
|---|---|
| Phase | 3-phase |
| Rated voltage | 380 V |
| Input power | 1,100 W |
| Max. airflow | 40,125 m³/h |
Typical applications
- Poultry houses
- Dairy and pig barns
- Greenhouses
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
