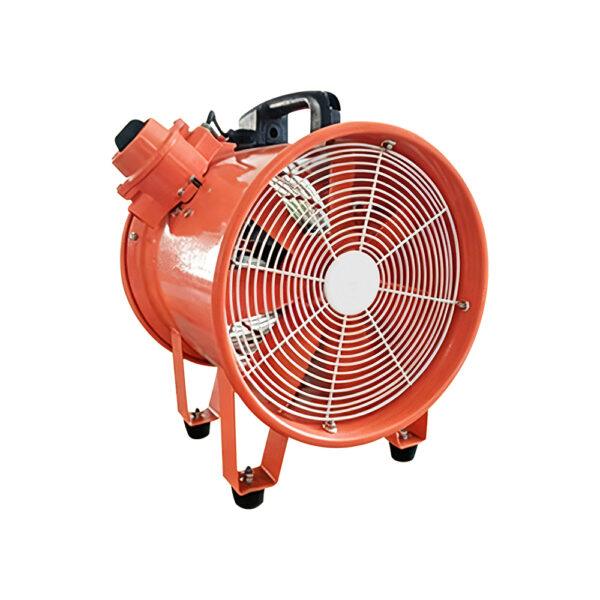

Representative image of the series — the ratings of this model are given in the data table below.
- Max airflow2,100 m³/h1,236 CFM
- Voltage220 V
- Speed2,900 rpm
- Input power900 W1.21 hp
LWSFPEX-4A-0.9-2P-1-001 AC Explosion-Proof Fan
AC | Max airflow 2,100 m³/h
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Technical description LWSFPEX-4A-0.9-2P-1-001
LWSFPEX-4A-0.9-2P-1-001 is a LONGWELL AC Explosion-Proof Fan from the Explosion-Proof Fans range, rated 220 V AC, maximum airflow 2,100 m³/h, input power 900 W.
Technical data
| Model | LWSFPEX-4A-0.9-2P-1-001 |
|---|---|
| Series | LWSFPEX |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Input power | 900 W |
| Speed | 2,900 rpm |
| Max. airflow | 2,100 m³/h |
Typical applications
- Oil & gas facilities
- Chemical and pharmaceutical plants
- Paint shops and battery plants
Series LWSFPEX: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWSFPEX-4A-0.9-2P-1-001
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives at a similar dutySimilar airflow, different construction or motor platform
LWCE-120900SN-06Ø120 mm · 2,100 m³/h · 161 Pa · ECsimilar duty
LWDA-250(10")S-MWN-06Ø250 mm · 2,100 m³/h · 215 Pa · ACsimilar duty

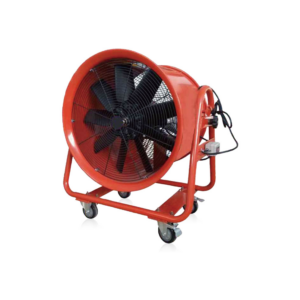

LWA-250(10")U(S)M-03Ø250 mm · 2,100 m³/h · 215 Pa · ACsimilar duty
LWFA-E-250-02Ø250 mm · 2,100 m³/h · 215 Pa · ACsimilar duty
LWFA-E-280-02Ø280 mm · 2,100 m³/h · 220 Pa · ACsimilar duty
LWBE(RT)280-NW-022,100 m³/hsimilar dutySee all Explosion-Proof Fans · select by duty point
