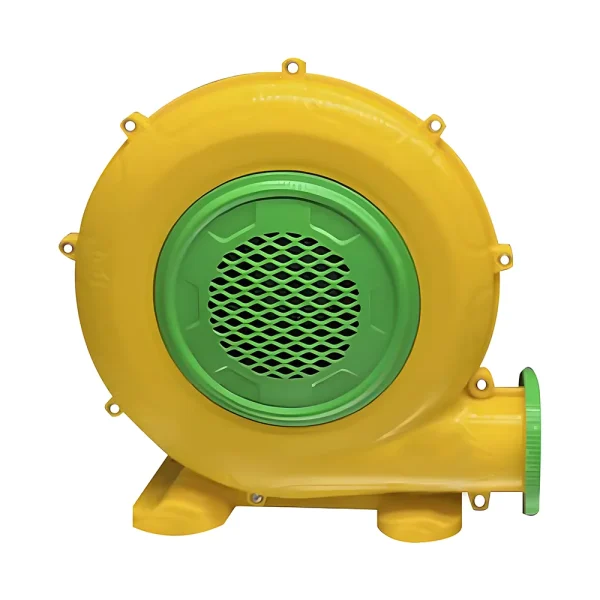

LWA-370-04 product photo
  • Frame size37 mm
  • Max airflow760 m³/h
  • Max static pressure1,500 Pa
  • Voltage220-240 V
  • Speed2,850 rpm
  • Input power370 W

LWA-370-04 Air Blower 37 mm

37 mm | AC | Max airflow 760 m³/h | Max static pressure 1,500 Pa

SKU: LWA-370-04 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

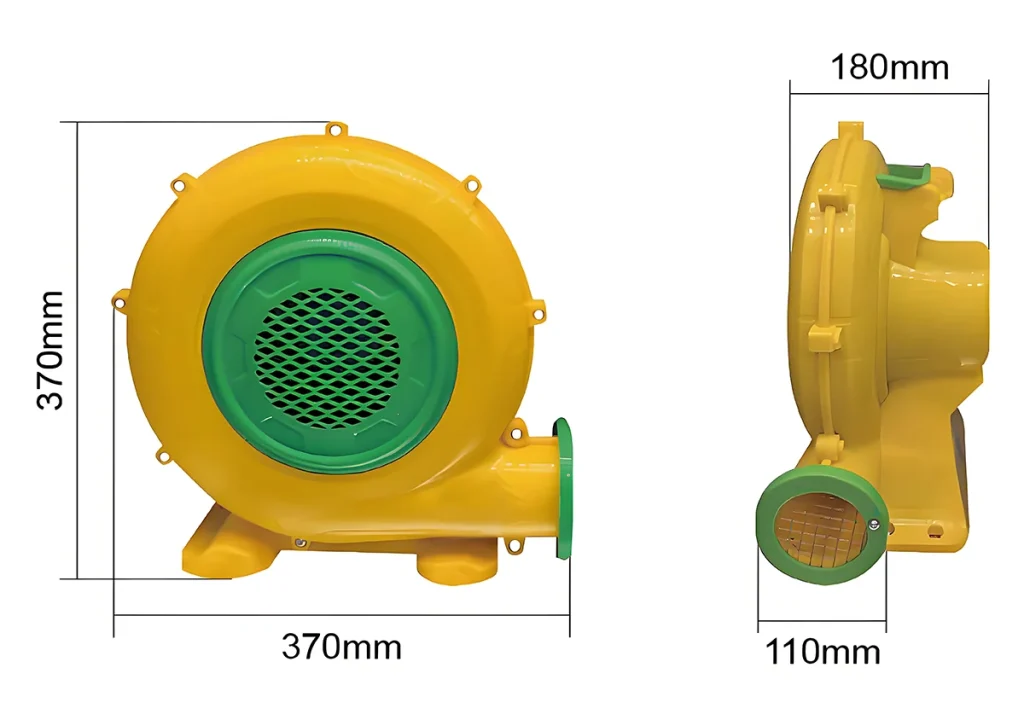

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWA-370-04 Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-370-04 is a LONGWELL Air Blower from the Air Blowers (Air Knife / Air Pump) range, frame size 37 mm, rated 220-240 V AC, maximum airflow 760 m³/h, maximum static pressure 1,500 Pa, input power 370 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWA-370-04
Motor type AC
Phase 1-phase
Rated voltage 220-240 V
Frequency 50 Hz
Input power 370 W
Speed 2,850 rpm
Max. airflow 760 m³/h
Max. static pressure 1,500 Pa
Frame size 37 mm
Nominal size 110mm
Dimensions 37×18×37cm
Net weight 4.1kg
Gross weight 5.1kg

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (37 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWA-370-04 this model 760 m³/h1,500 Pa 2,850 rpm370 W—220-240 V
LWA-370-03 750 m³/h1,500 Pa —370 W—230 V View
LWA-370-01 750 m³/h1,500 Pa —370 W—230 V View
LWA-370-02 760 m³/h1,650 Pa —370 W—120 V View
LWA-550-04 800 m³/h1,800 Pa 2,850 rpm550 W—220-240 V View
LWA-550-03 800 m³/h1,800 Pa —550 W—230 V View
LWA-480-01 800 m³/h1,800 Pa —480 W—120 V View
LWA-550-01 800 m³/h1,800 Pa —550 W—230 V View
LWA-550-02 850 m³/h1,900 Pa —550 W—120 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
