Industrial Axial Fan dimensional drawing (shared by several models)

ImpellerØ300 mm11.8 in
Max airflow3,000 m³/h1,766 CFM
Max static pressure230 Pa0.92 in. wg
Voltage110-120 V
Speed2,800 rpm
Input power370 W

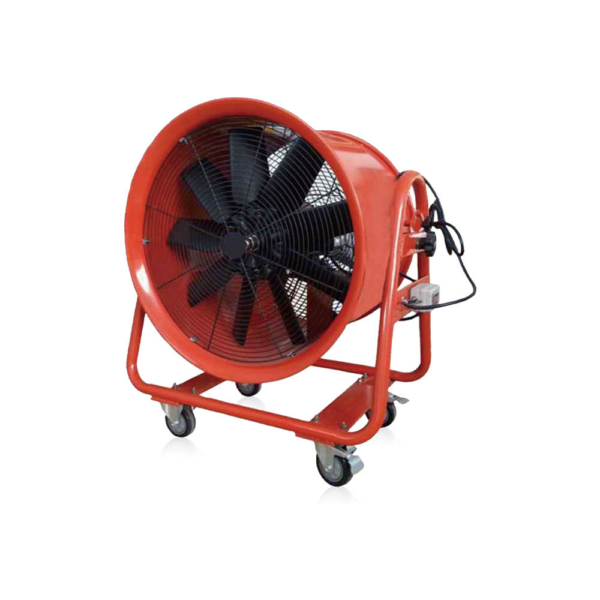

LWA-300(12″)U(S)M-04 Industrial Axial Fan Ø300 mm

Ø300 mm | AC | Max airflow 3,000 m³/h | Max static pressure 230 Pa

SKU: LWA-300(12")U(S)M-04 Categories: Axial Fans, Impeller Ø190–390 mm, Industrial Axial Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWA-300(12")U(S)M-041 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Proven in: Heat pump fan programme · Telecom & power cabinet cooling · Cold chain supermarket retrofit · Dry-type transformer cooling — all case studies on longwellfans.com

Typical applications: Roof exhaust · Cooling towers · Harvest stores · Industrial machinery — all industries

Get a quote · LWA-300(12")U(S)M-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWA-300(12")U(S)M-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 12-month warranty
How ordering works →

Drawings & downloads
Technical description

LWA-300(12")U(S)M-04 Catalogue data table — **Catalogue data table**Series table from the catalogue — read the row for this model. Dimensions are given on the drawing of the same size.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-300(12")U(S)M-04 is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø300 mm, rated 110-120 V AC, maximum airflow 3,000 m³/h, maximum static pressure 230 Pa, input power 370 W.

Technical data

Model	LWA-300(12")U(S)M-04
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	50 Hz
Input power	370 W
Speed	2,800 rpm
Max. airflow	3,000 m³/h
Max. static pressure	230 Pa
Impeller diameter	Ø300 mm
Blade diameter	300mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø300 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-300(12")U(S)M-04 this model	3,000 m³/h	230 Pa	2,800 rpm	370 W	—	110-120 V
LWA-300(12")U(S)M-01	35 m³/h	see curve	1,350 rpm	100 W	—	110-120 V	View
LWA-300(12")U(S)M-02	46 m³/h	see curve	1,350 rpm	120 W	—	110-120 V	View
LWA-300(12")U(S)M-03	65 m³/h	see curve	2,800 rpm	370 W	—	110-120 V	View
LWAA4E300S-5MKB-13	1,803 m³/h	see curve	1,350 rpm	90 W	54 dB(A)	220/230 V	View
LWAA4E300S-5MEW-15	1,906 m³/h	see curve	1,370 rpm	85 W	—	220 V	View
LWAA4E300S-5MKB-14	2,060 m³/h	see curve	1,600 rpm	115 W	55 dB(A)	220/230 V	View
LWAA4E300S-5MEB-02	2,060 m³/h	see curve	1,600 rpm	115 W	55 dB(A)	220/230 V	View
LWEA300S(T)M-067E	2,280 m³/h	see curve	1,450 rpm	180 W	—	220 V	View
LWEAF300-01	2,280 m³/h	see curve	1,450 rpm	180 W	—	220 V	View
LWAA2E300S-5MEW-14	2,575 m³/h	see curve	2,300 rpm	180 W	60 dB(A)	220 V	View
LWAA2E300S-5MEW-07	3,090 m³/h	391 Pa	2,750 rpm	270 W	72 dB(A)	220 V	View
LWAA2D300S-5MEW-05	3,090 m³/h	see curve	2,750 rpm	270 W	72 dB(A)	380/400 V	View
LWAA2D300S-5MEW-06	3,296 m³/h	see curve	3,100 rpm	400 W	73 dB(A)	380/400 V	View
LWAA2E300S-5MEW-08	3,502 m³/h	see curve	3,000 rpm	400 W	73 dB(A)	220 V	View
