- Frame size43 mm1.7 in
- Max airflow850 m³/h500 CFM
- Max static pressure1,950 Pa7.83 in. wg
- Voltage230 V
- Input power680 W

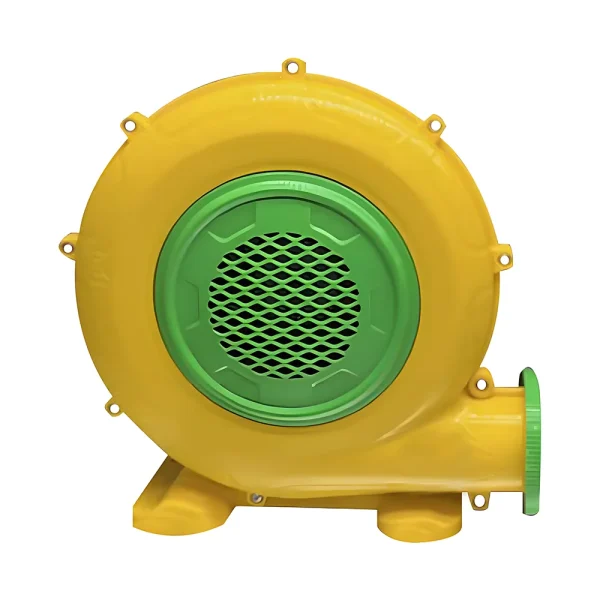

LWA-680-01 Air Blower 43 mm
43 mm | AC | Max airflow 850 m³/h | Max static pressure 1,950 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
LWA-680-01 is a LONGWELL Air Blower from the Air Blowers (Air Knife / Air Pump) range, frame size 43 mm, rated 230 V AC, maximum airflow 850 m³/h, maximum static pressure 1,950 Pa, input power 680 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWA-680-01 |
|---|---|
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 680 W |
| Max. airflow | 850 m³/h |
| Max. static pressure | 1,950 Pa |
| Frame size | 43 mm |
| Nominal size | 120mm |

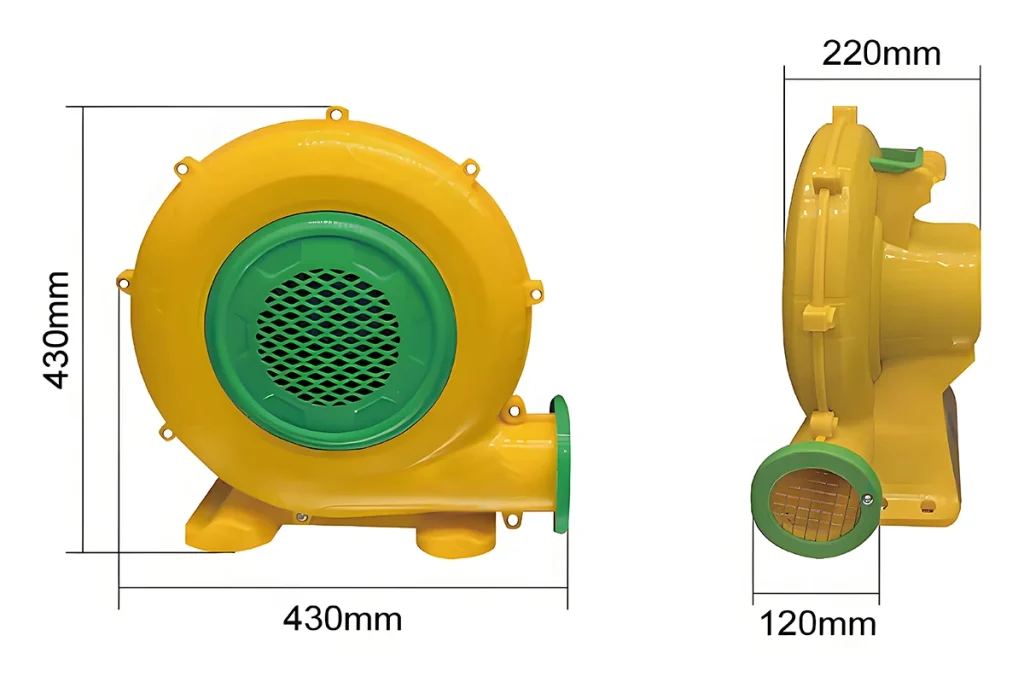

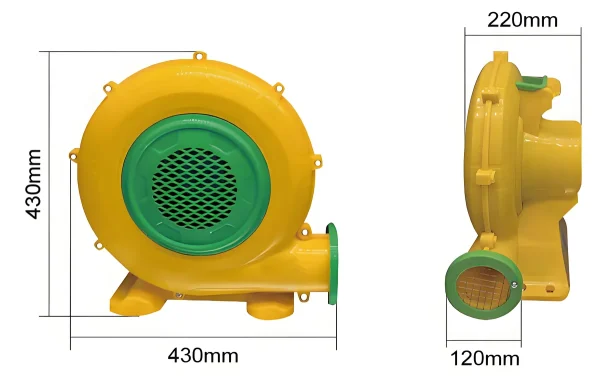

| Dimensions | 43×22×43cm |
| Net weight | 6kg |
| Gross weight | 7.6kg |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same frame size (43 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWA-680-01 this model | 850 m³/h | 1,950 Pa | — | 680 W | — | 230 V | |
| LWA-680-04 | 850 m³/h | 1,950 Pa | 2,850 rpm | 680 W | — | 220-240 V | View |
| LWA-680-03 | 850 m³/h | 1,950 Pa | — | 680 W | — | 230 V | View |
| LWA-750-04 | 900 m³/h | 2,550 Pa | 2,850 rpm | 750 W | — | 220-240 V | View |
| LWA-750-03 | 900 m³/h | 2,200 Pa | — | 750 W | — | 230 V | View |
| LWA-680-02 | 900 m³/h | 2,200 Pa | — | 680 W | — | 120 V | View |
| LWA-750-02 | 960 m³/h | 2,550 Pa | — | 750 W | — | 120 V | View |
| LWA-950-04 | 1,050 m³/h | 2,600 Pa | 2,850 rpm | 950 W | — | 220-240 V | View |
| LWA-950-03 | 1,050 m³/h | 2,400 Pa | — | 950 W | — | 230 V | View |
| LWA-950-02 | 1,050 m³/h | 2,600 Pa | — | 950 W | — | 120 V | View |
| LWA-950-01 | 1,050 m³/h | 2,400 Pa | — | 950 W | — | 230 V | View |
| LWA-1100-04 | 1,200 m³/h | 2,650 Pa | 2,850 rpm | 1,100 W | — | 220-240 V | View |
| LWA-1100-03 | 1,200 m³/h | 2,550 Pa | — | 1,100 W | — | 230 V | View |
| LWA-1100-02 | 1,200 m³/h | 2,650 Pa | — | 1,100 W | — | 120 V | View |
| LWA-1100-01 | 1,200 m³/h | 2,550 Pa | — | 1,100 W | — | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
