Frame size43 mm1.7 in
Max airflow1,050 m³/h618 CFM
Max static pressure2,400 Pa9.64 in. wg
Voltage230 V
Input power950 W1.27 hp

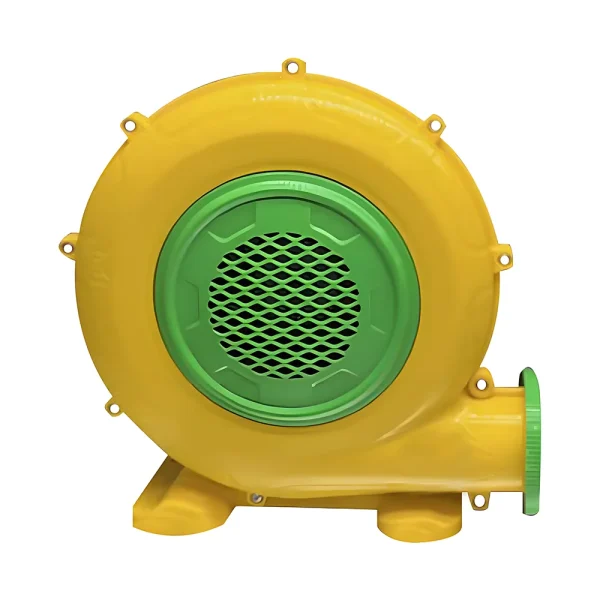

LWA-950-01 Air Blower 43 mm

43 mm | AC | Max airflow 1,050 m³/h | Max static pressure 2,400 Pa

SKU: LWA-950-01 Categories: Air Blowers (Air Knife / Air Pump), Cooling Fans & Blowers, Impeller Ø43–49 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWA-950-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWA-950-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

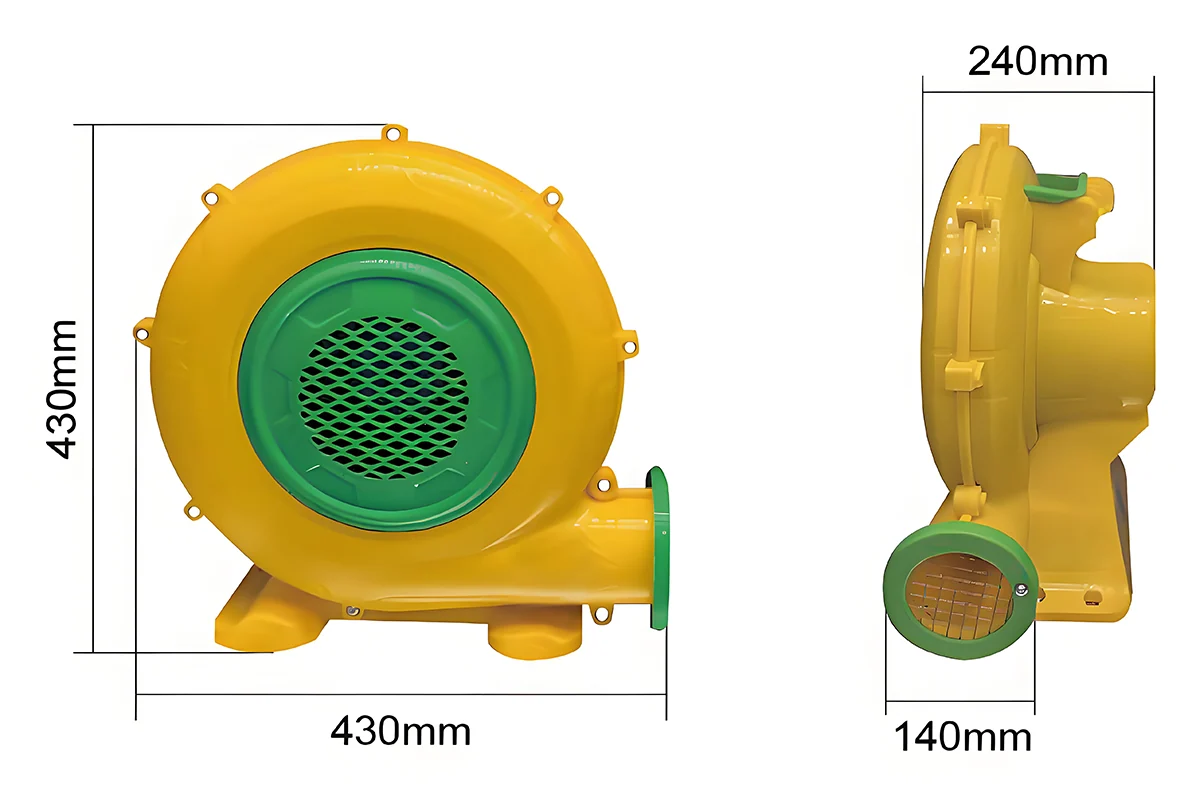

LWA-950-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-950-01 is a LONGWELL Air Blower from the Air Blowers (Air Knife / Air Pump) range, frame size 43 mm, rated 230 V AC, maximum airflow 1,050 m³/h, maximum static pressure 2,400 Pa, input power 950 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWA-950-01
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Input power	950 W
Max. airflow	1,050 m³/h
Max. static pressure	2,400 Pa
Frame size	43 mm
Nominal size	140mm
Dimensions	43×24×43cm
Net weight	7.2kg
Gross weight	8.8kg

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (43 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-950-01 this model	1,050 m³/h	2,400 Pa	—	950 W	—	230 V
LWCA-4390SN-07	41 m³/h	18 Pa	2,700 rpm	14 W	37 dB(A)	230 V	View
LWCA-4390UN-06	48 m³/h	22 Pa	3,000 rpm	17 W	37 dB(A)	115 V	View
LWCA-43150SN-07	61 m³/h	16 Pa	2,500 rpm	15 W	38 dB(A)	230 V	View
LWCA-43190SN-07	70 m³/h	14 Pa	2,400 rpm	15 W	38 dB(A)	230 V	View
LWCA-43150UN-06	72 m³/h	22 Pa	3,000 rpm	17 W	38 dB(A)	115 V	View
LWCA-43190UN-06	86 m³/h	22 Pa	2,900 rpm	18 W	39 dB(A)	115 V	View
LWCA-43250SN-07	90 m³/h	15 Pa	2,500 rpm	19 W	38 dB(A)	230 V	View
LWCA-43250UN-06	110 m³/h	21 Pa	2,800 rpm	22 W	39 dB(A)	115 V	View
LWCA-43290SN-07	115 m³/h	11 Pa	2,300 rpm	19 W	37 dB(A)	230 V	View
LWCA-43350SN-07	130 m³/h	15 Pa	2,400 rpm	21 W	39 dB(A)	230 V	View
LWCA-43290UN-06	135 m³/h	21 Pa	2,800 rpm	23 W	40 dB(A)	115 V	View
LWCA-43350UN-06	150 m³/h	19 Pa	2,700 rpm	21 W	41 dB(A)	115 V	View
LWCA-43420SN-07	163 m³/h	21 Pa	2,300 rpm	21 W	40 dB(A)	230 V	View
LWCA-43420UN-06	170 m³/h	20 Pa	2,600 rpm	22 W	42 dB(A)	115 V	View
