Frame size30 mm1.2 in
Max airflow3.6 m³/h2 CFM
Max static pressure109 Pa0.44 in. wg
Voltage12 V
Speed6,000 rpm
Input power0.96 W
Noise54 dB(A)

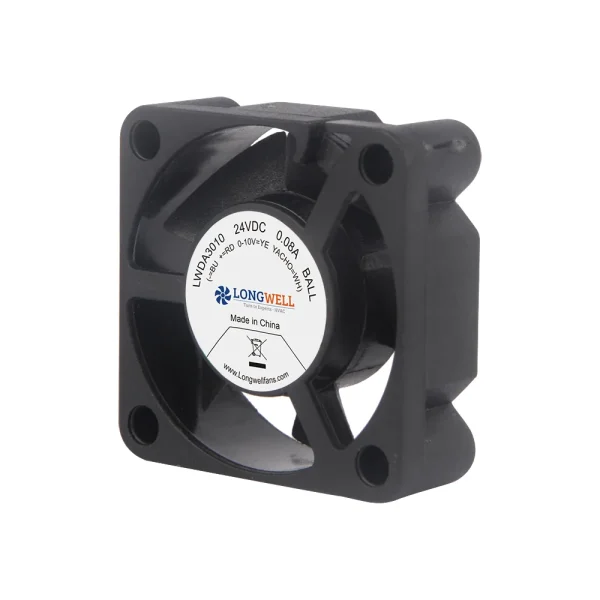

LWAD3010LD-05 DC Axial Cooling Fan 30 mm

30 mm | DC | Max airflow 3.6 m³/h | Max static pressure 109 Pa | 54 dB(A)

SKU: LWAD3010LD-05 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 25–40 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWAD3010LD-05

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD3010LD-05drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

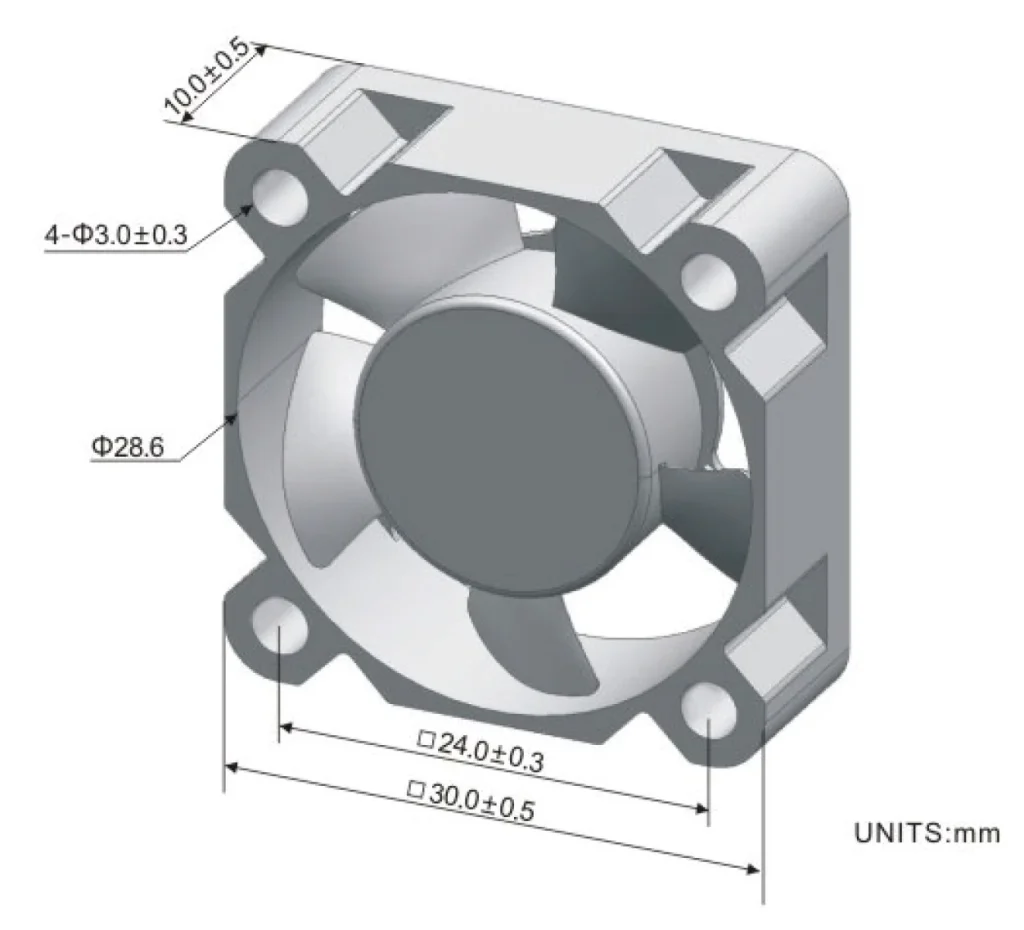

LWAD3010LD-05 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD3010LD-05 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD3010LD-05 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 30 mm, rated 12 V DC, maximum airflow 3.6 m³/h, maximum static pressure 109 Pa, noise 54 dB(A), input power 0.96 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD3010LD-05
Series	LWAD3010
Motor type	DC
Rated voltage	12 V
Current	0.08 A
Input power	0.96 W
Speed	6,000 rpm
Max. airflow	3.6 m³/h
Max. static pressure	109 Pa
Noise	54 dB(A)
Frame size	30 mm
Dimensions	30x10mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD3010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (30 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD3010LD-05 this model	3.6 m³/h	109 Pa	6,000 rpm	0.96 W	54 dB(A)	12 V
LWAD3010KD-05	3.6 m³/h	104 Pa	6,000 rpm	0.75 W	49 dB(A)	5 V	View
LWAD3010LL-04	4.8 m³/h	108 Pa	8,000 rpm	1.2 W	53 dB(A)	12 V	View
LWAD3010KL-04	4.8 m³/h	103 Pa	8,000 rpm	1 W	48 dB(A)	5 V	View
LWAD3010LM-03	6 m³/h	107 Pa	10,000 rpm	1.44 W	52 dB(A)	12 V	View
LWAD3010KM-03	6 m³/h	102 Pa	10,000 rpm	1.25 W	47 dB(A)	5 V	View
LWAD3010LH-02	7.8 m³/h	106 Pa	13,000 rpm	1.8 W	—	12 V	View
LWAD3010KH-02	7.8 m³/h	101 Pa	13,000 rpm	1.5 W	46 dB(A)	5 V	View
LWAD3010LX-01	9 m³/h	105 Pa	15,000 rpm	2.04 W	50 dB(A)	12 V	View
LWAD3010KX-01	9 m³/h	100 Pa	15,000 rpm	1.75 W	45 dB(A)	5 V	View
