Frame size30 mm1.2 in
Max airflow7.8 m³/h5 CFM
Max static pressure106 Pa0.43 in. wg
Voltage12 V
Speed13,000 rpm
Input power1.8 W

LWAD3010LH-02 DC Axial Cooling Fan 30 mm

30 mm | DC | Max airflow 7.8 m³/h | Max static pressure 106 Pa

SKU: LWAD3010LH-02 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 25–40 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD3010LH-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD3010LH-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

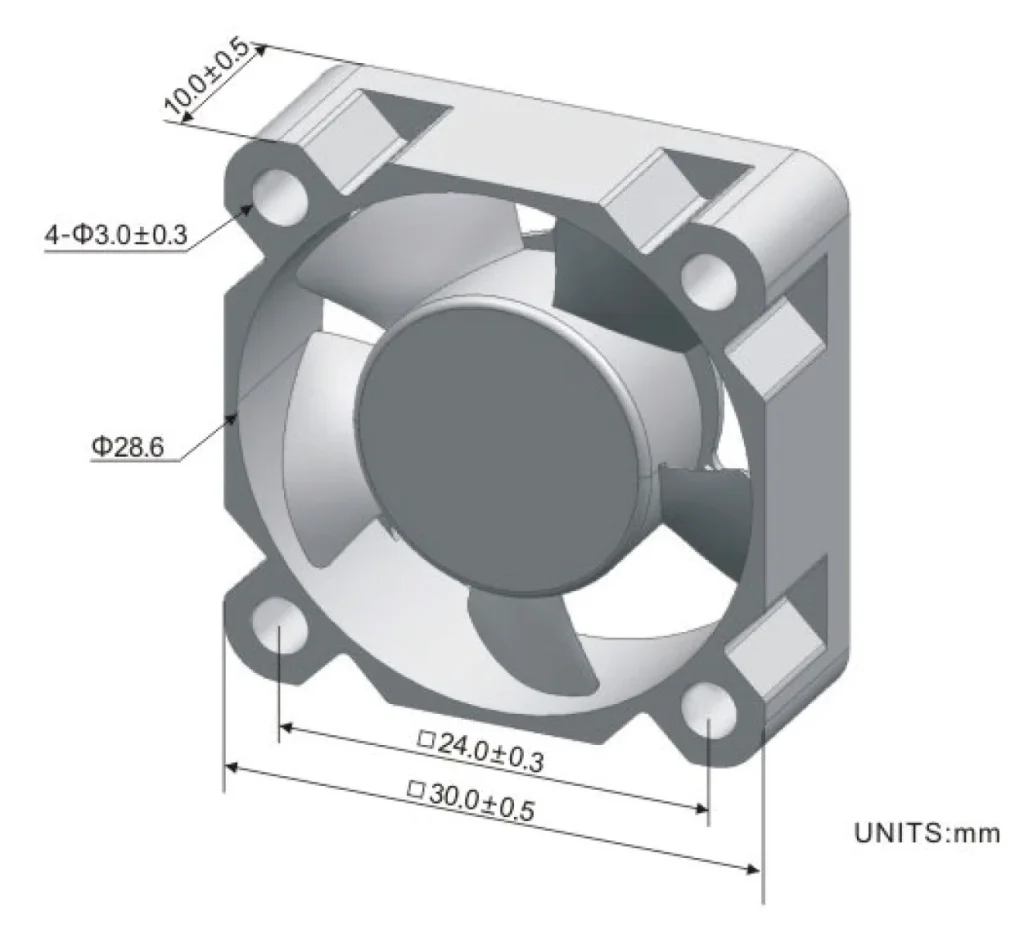

LWAD3010LH-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWAD3010LH-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD3010LH-02 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 30 mm, rated 12 V DC, maximum airflow 7.8 m³/h, maximum static pressure 106 Pa, input power 1.8 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD3010LH-02
Series	LWAD3010
Motor type	DC
Rated voltage	12 V
Current	0.15 A
Input power	1.8 W
Speed	13,000 rpm
Max. airflow	7.8 m³/h
Max. static pressure	106 Pa
Frame size	30 mm
Dimensions	30x10mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD3010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (30 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD3010LH-02 this model	7.8 m³/h	106 Pa	13,000 rpm	1.8 W	—	12 V
LWCD-30290MN-07	85 m³/h	15 Pa	2,400 rpm	1.68 W	33 dB(A)	24 V	View
LWCD-30350MN-07	105 m³/h	16 Pa	2,400 rpm	1.92 W	34 dB(A)	24 V	View
LWCD-30350LN-06	105 m³/h	16 Pa	2,400 rpm	1.56 W	34 dB(A)	12 V	View
LWCD-30420MN-07	125 m³/h	17 Pa	2,400 rpm	2.16 W	34 dB(A)	24 V	View
LWCD-30420LN-06	125 m³/h	17 Pa	2,400 rpm	1.68 W	34 dB(A)	12 V	View
LWCD-30530MN-06	137 m³/h	17 Pa	2,400 rpm	2.88 W	32 dB(A)	24 V	View
LWCD-30610MN-06	158 m³/h	18 Pa	2,400 rpm	3.12 W	33 dB(A)	24 V	View
LWCD-30650MN-06	168 m³/h	18 Pa	2,400 rpm	3.12 W	34 dB(A)	24 V	View
LWCD-30718MN-06	185 m³/h	19 Pa	2,400 rpm	3.36 W	35 dB(A)	24 V	View
LWCD-30800MN-06	207 m³/h	19 Pa	2,400 rpm	1.32 W	36 dB(A)	24 V	View
LWCD-30854MN-06	221 m³/h	20 Pa	2,400 rpm	4.56 W	36 dB(A)	24 V	View
LWCD-30920MN-06	238 m³/h	20 Pa	2,400 rpm	5.04 W	37 dB(A)	24 V	View
LWCD-30986MN-06	255 m³/h	21 Pa	2,400 rpm	5.28 W	37 dB(A)	24 V	View
LWCD-301082MN-06	279 m³/h	21 Pa	2,400 rpm	5.76 W	38 dB(A)	24 V	View
