- Frame size50 mm2.0 in
- Max airflow34.8 m³/h20 CFM
- Max static pressure75 Pa0.30 in. wg
- Voltage5 V
- Speed6,500 rpm
- Input power3 W
- Noise38.6 dB(A)

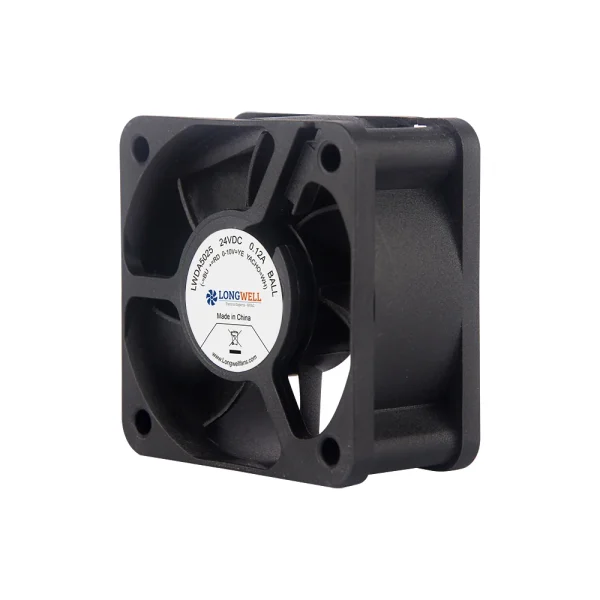

LWAD5025KX-01 DC Axial Cooling Fan 50 mm
50 mm | DC | Max airflow 34.8 m³/h | Max static pressure 75 Pa | 38.6 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

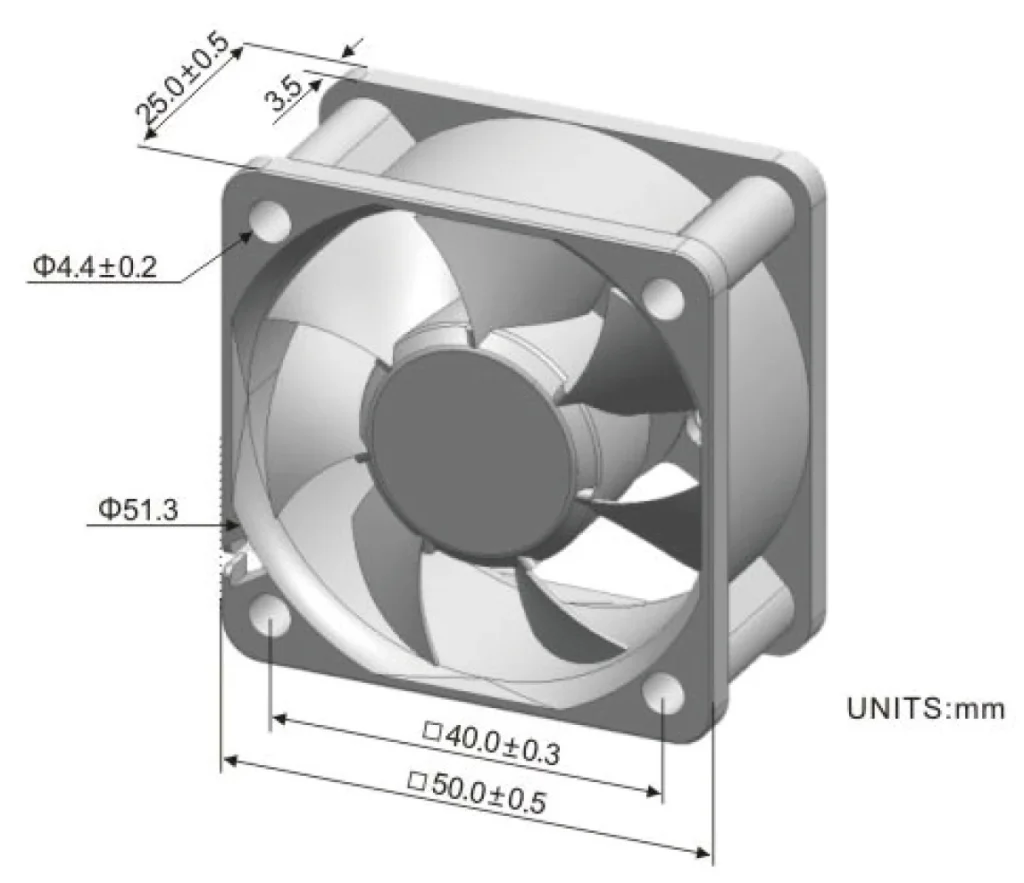

Drawing & Curve LWAD5025KX-01


Files for LWAD5025KX-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWAD5025KX-01
LWAD5025KX-01 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 50 mm, rated 5 V DC, maximum airflow 34.8 m³/h, maximum static pressure 75 Pa, noise 38.6 dB(A), input power 3 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWAD5025KX-01 |
|---|---|
| Series | LWAD5025 |
| Motor type | DC |
| Rated voltage | 5 V |
| Current | 0.6 A |
| Input power | 3 W |
| Speed | 6,500 rpm |
| Max. airflow | 34.8 m³/h |
| Max. static pressure | 75 Pa |
| Noise | 38.6 dB(A) |
| Frame size | 50 mm |
| Dimensions | 50x25mm |
| Impeller material | Plastic(UL94-VO) |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAD5025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWAD5025KX-01
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)








Alternatives with the same frame size (50 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAD5025KX-01 this model | 34.8 m³/h | 75 Pa | 6,500 rpm | 3 W | 38.6 dB(A) | 5 V | |
| LWFD5015LL-06 | 3.1 m³/h | 37.9 Pa | 2,600 rpm | 0.96 W | 21 dB(A) | 12 V | View |
| LWFD5015ML-06 | 4.2 m³/h | 68.6 Pa | 3,500 rpm | 1.2 W | 26.5 dB(A) | 24 V | View |
| LWFD5015LL-07 | 4.2 m³/h | 68.6 Pa | 3,500 rpm | 1.2 W | 26.5 dB(A) | 12 V | View |
| LWFD5015ML-08B.S | 4.8 m³/h | 60.21 Pa | 4,500 rpm | 1.44 W | 27 dB(A) | 24 V | View |
| LWFD5015LL-08B.S | 4.8 m³/h | 60.21 Pa | 4,500 rpm | 1.44 W | 27 dB(A) | 12 V | View |
| LWFD5015MM-07B.S | 5.4 m³/h | 71.59 Pa | 5,000 rpm | 1.92 W | 34 dB(A) | 24 V | View |
| LWFD5015MM-07 | 5.4 m³/h | 107.9 Pa | 4,500 rpm | 1.68 W | 32.5 dB(A) | 24 V | View |
| LWFD5015LM-08 | 5.4 m³/h | 107.9 Pa | 4,500 rpm | 1.68 W | 32.5 dB(A) | 12 V | View |
| LWFD5015LM-07B.S | 5.4 m³/h | 71.59 Pa | 5,000 rpm | 1.8 W | 34 dB(A) | 12 V | View |
| LWFD5015MH-06B.S | 6 m³/h | 87.97 Pa | 5,500 rpm | 2.4 W | 38 dB(A) | 24 V | View |
| LWFD5015MH-08 | 6.6 m³/h | 176.5 Pa | 5,500 rpm | 2.4 W | 38 dB(A) | 24 V | View |
| LWFD5015LH-09 | 6.6 m³/h | 176.5 Pa | 5,500 rpm | 2.16 W | 38 dB(A) | 12 V | View |
| LWFD5015MH-09 | 7.8 m³/h | 215.7 Pa | 6,500 rpm | 3.12 W | 45 dB(A) | 24 V | View |
| LWFD5015LH-10 | 7.8 m³/h | 215.7 Pa | 6,500 rpm | 2.64 W | 45 dB(A) | 12 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Other models in the LWAD5025 seriesSame impeller, different speed grade or wiring
LWAD5025KH-0250 mm · 32.4 m³/h · 64 Pa · DCsame series
LWAD5025KM-0350 mm · 29.4 m³/h · 54 Pa · DCsame series
LWAD5025KL-0450 mm · 27 m³/h · 44 Pa · DCsame series
LWAD5025KD-0550 mm · 24 m³/h · 36 Pa · DCsame series
LWAD5025LX-0150 mm · 34.8 m³/h · 75 Pa · DCsame series
LWAD5025LH-0250 mm · 32.4 m³/h · 64 Pa · DCsame seriesAdjacent sizesOne size up when airflow is short, one size down when it is too much
LWFD4508KM-0245 mm · 2.5 m³/h · 72.1 Pa · DCadjacent size
LWFD4508LH-0345 mm · 2.9 m³/h · 97 Pa · DCadjacent size
LWFD4508LL-0145 mm · 2 m³/h · 46.1 Pa · DCadjacent size
LWFD4508KL-0145 mm · 2 m³/h · 46.1 Pa · DCadjacent size
LWFD4508KH-0345 mm · 2.9 m³/h · 97 Pa · DCadjacent size
LWFD4508KH-0445 mm · 3 m³/h · 100 Pa · DCadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWAD4020LX-0640 mm · 34.8 m³/h · 95 Pa · DCsimilar duty
LWAD4020MX-0640 mm · 34.8 m³/h · 100 Pa · DCsimilar duty
LWAD4028LX-0140 mm · 34.8 m³/h · 235 Pa · DCsimilar duty
LWAD4028MX-0140 mm · 34.8 m³/h · 235 Pa · DCsimilar duty
LWAD5020KX-0150 mm · 34.8 m³/h · 75 Pa · DCsimilar duty
LWAD5020LX-0150 mm · 34.8 m³/h · 75 Pa · DCsimilar dutySee all Cooling Fans & Blowers · select by duty point
