- Frame size60 mm
- Max airflow34.2 m³/h
- Max static pressure41 Pa
- Voltage48 V
- Speed4,000 rpm
- Input power4.8 W
- Noise34.6 dB(A)

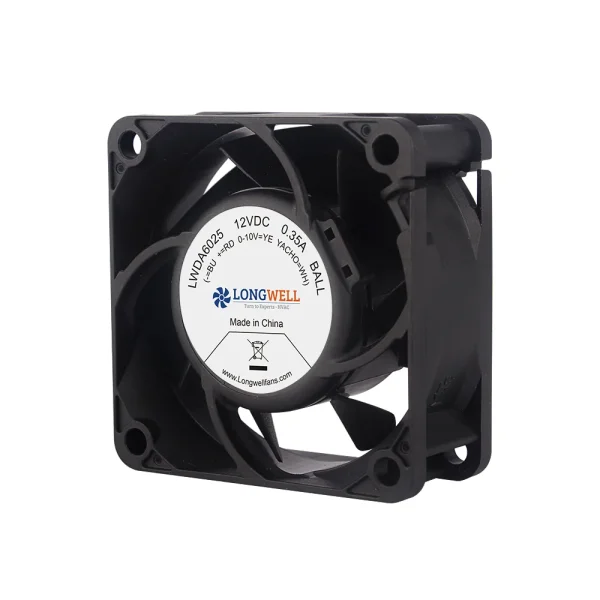

LWAD6025HD-06 DC Axial Cooling Fan 60 mm
60 mm | DC | Max airflow 34.2 m³/h | Max static pressure 41 Pa | 34.6 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAD6025HD-06 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 60 mm, rated 48 V DC, maximum airflow 34.2 m³/h, maximum static pressure 41 Pa, noise 34.6 dB(A), input power 4.8 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWAD6025HD-06 |
|---|---|
| Series | LWAD6025 |
| Motor type | DC |
| Rated voltage | 48 V |
| Current | 0.1 A |
| Input power | 4.8 W |
| Speed | 4,000 rpm |
| Max. airflow | 34.2 m³/h |
| Max. static pressure | 41 Pa |
| Noise | 34.6 dB(A) |
| Frame size | 60 mm |

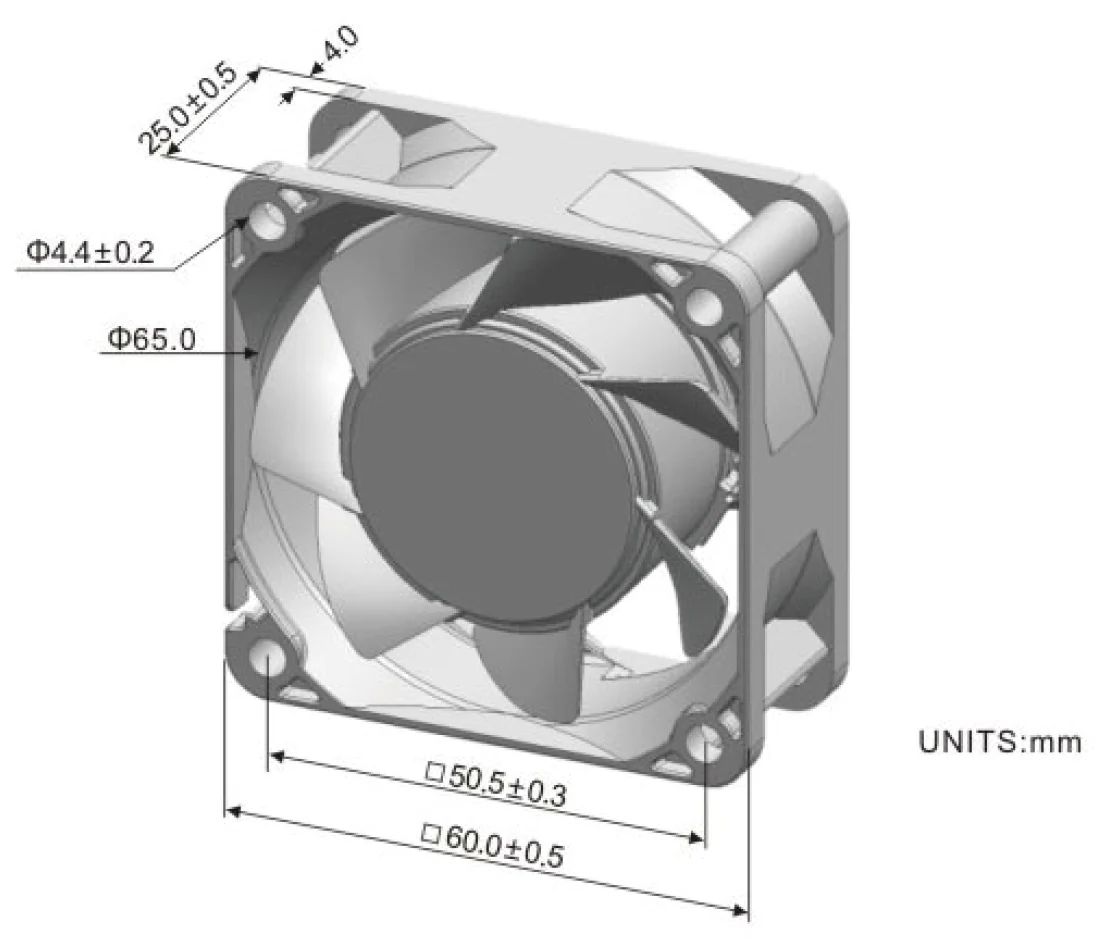

| Dimensions | 60x25mm |
| Impeller material | Plastic(UL94-VO) |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAD6025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same frame size (60 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAD6025HD-06 this model | 34.2 m³/h | 41 Pa | 4,000 rpm | 4.8 W | 34.6 dB(A) | 48 V | |
| LWCD-60300MN-07 | 207 m³/h | 34 Pa | 2,000 rpm | 11.04 W | 41 dB(A) | 24 V | View |
| LWCD-60300LN-06 | 207 m³/h | 34 Pa | 2,000 rpm | 9.6 W | 41 dB(A) | 12 V | View |
| LWCD-60360MN-07 | 240 m³/h | 34 Pa | 2,000 rpm | 12.24 W | 42 dB(A) | 24 V | View |
| LWCD-60360LN-06 | 240 m³/h | 34 Pa | 2,000 rpm | 11.4 W | 42 dB(A) | 12 V | View |
| LWCD-60420MN-07 | 355 m³/h | 35 Pa | 2,000 rpm | 12.72 W | 43 dB(A) | 24 V | View |
| LWCD-60420LN-06 | 355 m³/h | 35 Pa | 2,000 rpm | 1.32 W | 43 dB(A) | 12 V | View |
| LWCD-60520MN-06 | 414 m³/h | 28 Pa | 1,800 rpm | 24.9 W | 45 dB(A) | 24 V | View |
| LWCD-60610MN-06 | 486 m³/h | 29 Pa | 1,800 rpm | 26.4 W | 46 dB(A) | 24 V | View |
| LWCD-60640MN-06 | 510 m³/h | 29 Pa | 1,800 rpm | 27.12 W | 47 dB(A) | 24 V | View |
| LWCD-60700MN-06 | 558 m³/h | 30 Pa | 1,800 rpm | 28.08 W | 47 dB(A) | 24 V | View |
| LWCD-60750MN-06 | 597 m³/h | 31 Pa | 1,800 rpm | 28.8 W | 48 dB(A) | 24 V | View |
| LWCD-60870MN-06 | 693 m³/h | 32 Pa | 1,800 rpm | 30 W | 50 dB(A) | 24 V | View |
| LWCD-601100MN-06 | 857 m³/h | 34 Pa | 1,800 rpm | 31.2 W | 51 dB(A) | 24 V | View |
| LWCD-601300MN-06 | 1,012 m³/h | 35 Pa | 1,800 rpm | 32.64 W | 52 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
