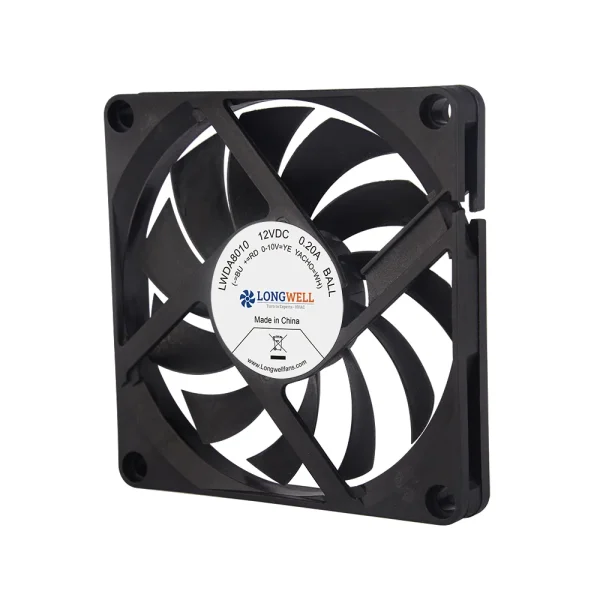

LWAD8010LM-03 product photo
LWAD8015ML-04 product photo
  • Frame size80 mm
  • Max airflow59.4 m³/h
  • Max static pressure23 Pa
  • Voltage12 V
  • Speed30,000 rpm
  • Input power1.92 W
  • Noise33.8 dB(A)

LWAD8010LM-03 DC Axial Cooling Fan 80 mm

80 mm | DC | Max airflow 59.4 m³/h | Max static pressure 23 Pa | 33.8 dB(A)

SKU: LWAD8010LM-03 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

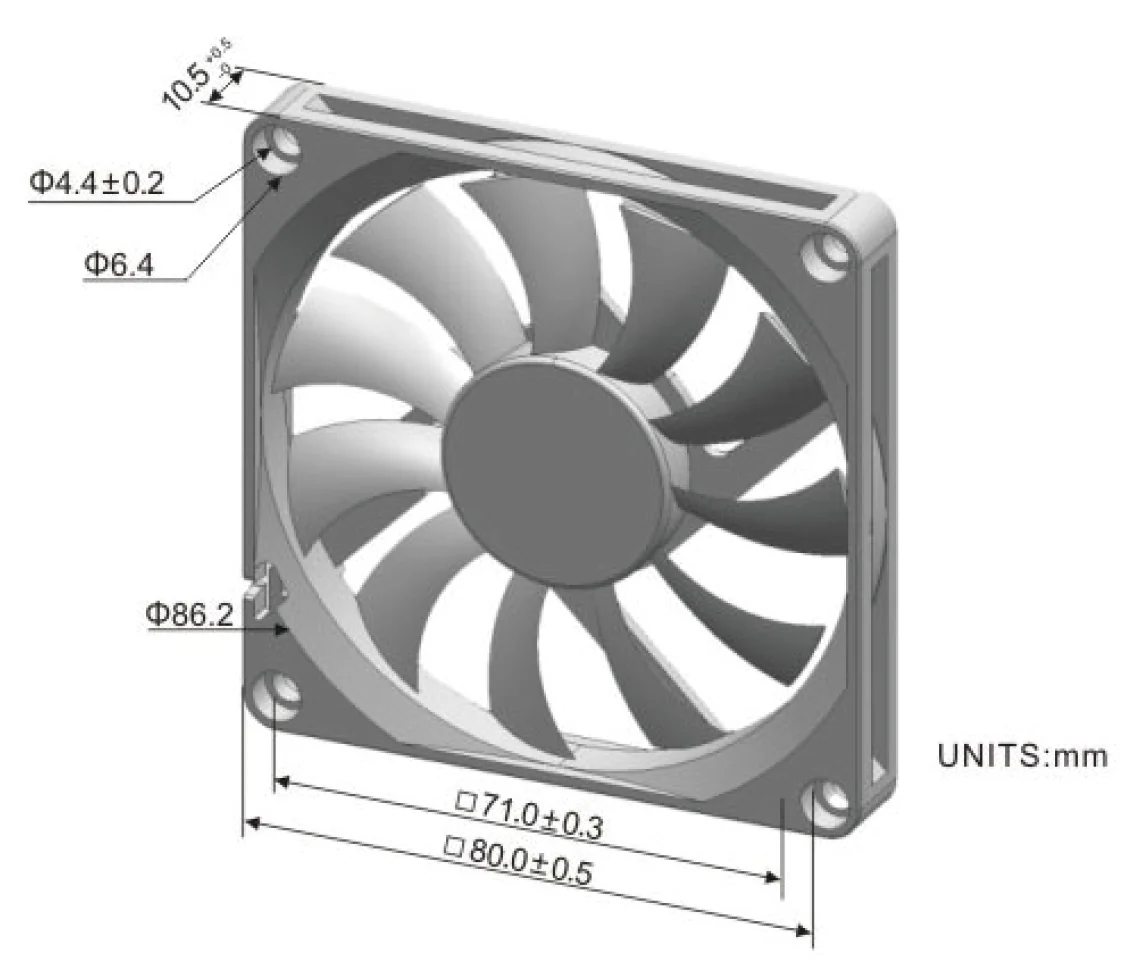

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAD8010LM-03 Dimensional drawing

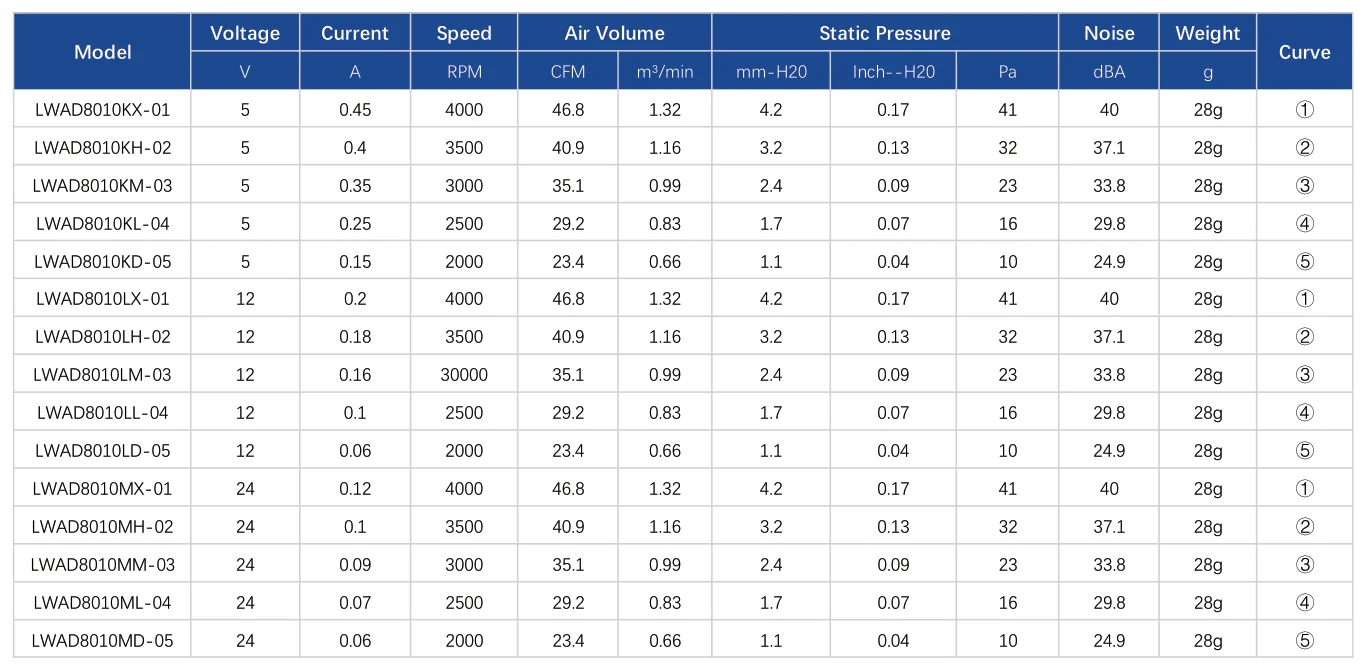

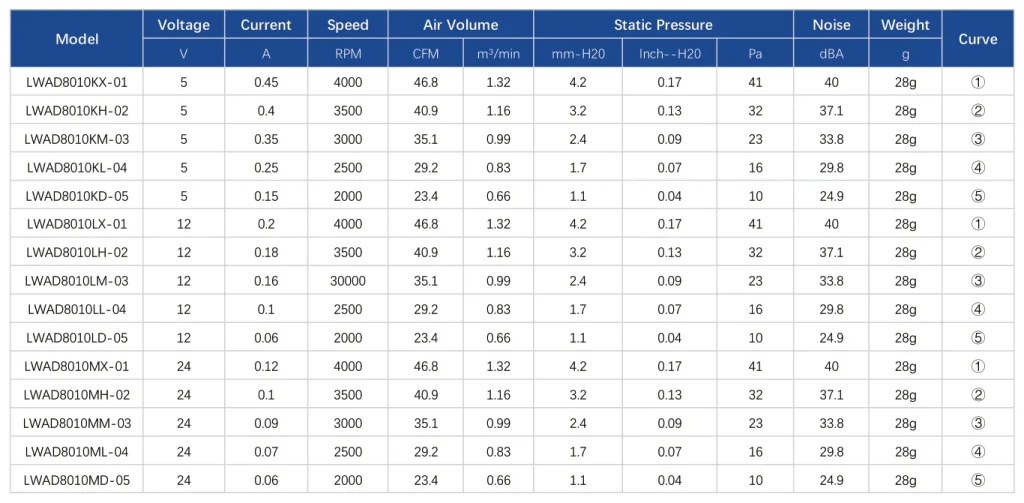

Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWAD8010LM-03 Performance curve (P-Q)

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD8010LM-03 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 80 mm, rated 12 V DC, maximum airflow 59.4 m³/h, maximum static pressure 23 Pa, noise 33.8 dB(A), input power 1.92 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWAD8010LM-03
Series LWAD8010
Motor type DC
Rated voltage 12 V
Current 0.16 A
Input power 1.92 W
Speed 30,000 rpm
Max. airflow 59.4 m³/h
Max. static pressure 23 Pa
Noise 33.8 dB(A)
Frame size 80 mm
Dimensions 80x10mm
Impeller material Plastic(UL94-VO)

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAD8010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (80 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAD8010LM-03 this model 59.4 m³/h23 Pa 30,000 rpm1.92 W33.8 dB(A)12 V
LWAD8038HD-12 97.8 m³/h133 Pa 6,000 rpm9.6 W47.4 dB(A)48 V View
LWAD8038MD-12 97.8 m³/h133 Pa 6,000 rpm7.2 W47.4 dB(A)24 V View
LWAD8038HL-11 114 m³/h181 Pa 7,000 rpm12 W50.7 dB(A)48 V View
LWAD8038HM-10 130.8 m³/h236 Pa 8,000 rpm14.4 W53.6 dB(A)48 V View
LWAD8038HH-09 147 m³/h299 Pa 9,000 rpm16.8 W56.2 dB(A)48 V View
LWAD8038HX-08 163.2 m³/h369 Pa 10,000 rpm48 W58.5 dB(A)48 V View
LWAD8038HX-07 179.4 m³/h446 Pa 11,000 rpm48 W60.6 dB(A)48 V View
LWAD8038HX-06 195.6 m³/h531 Pa 12,000 rpm48 W62.4 dB(A)48 V View
LWAD8038HX-05 220.2 m³/h672 Pa 13,500 rpm48 W65 dB(A)48 V View
LWCD-80350MN-06 465 m³/h39 Pa 1,500 rpm13 W53 dB(A)24 V View
LWCD-80520MN-06 650 m³/h59 Pa 1,500 rpm23 W54 dB(A)24 V View
LWCD-80620MN-06 800 m³/h70 Pa 1,500 rpm31 W55 dB(A)24 V View
LWCD-80720MN-06 1,000 m³/h82 Pa 1,500 rpm33 W55 dB(A)24 V View
LWCD-80820MN-06 1,250 m³/h93 Pa 1,500 rpm45 W56 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
