Frame size92 mm3.6 in
Max airflow108.6 m³/h64 CFM
Max static pressure55 Pa0.22 in. wg
Voltage24 V
Speed3,500 rpm
Input power7.2 W
Noise41.1 dB(A)

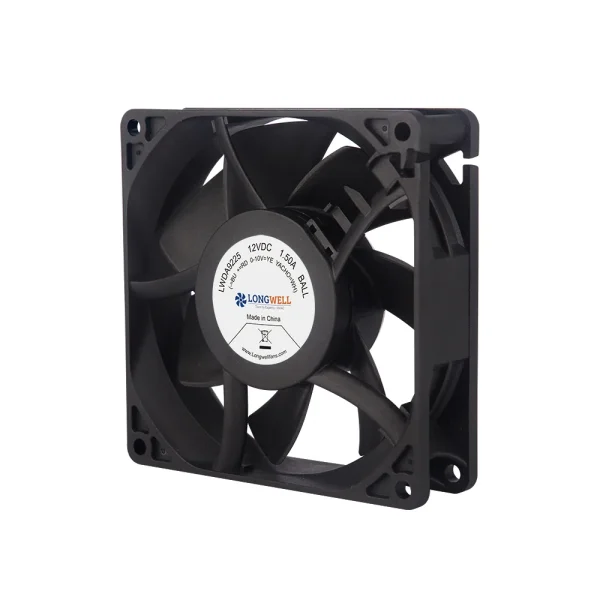

LWAD9225MM-07 DC Axial Cooling Fan 92 mm

92 mm | DC | Max airflow 108.6 m³/h | Max static pressure 55 Pa | 41.1 dB(A)

SKU: LWAD9225MM-07 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 80–92 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD9225MM-07

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD9225MM-07drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

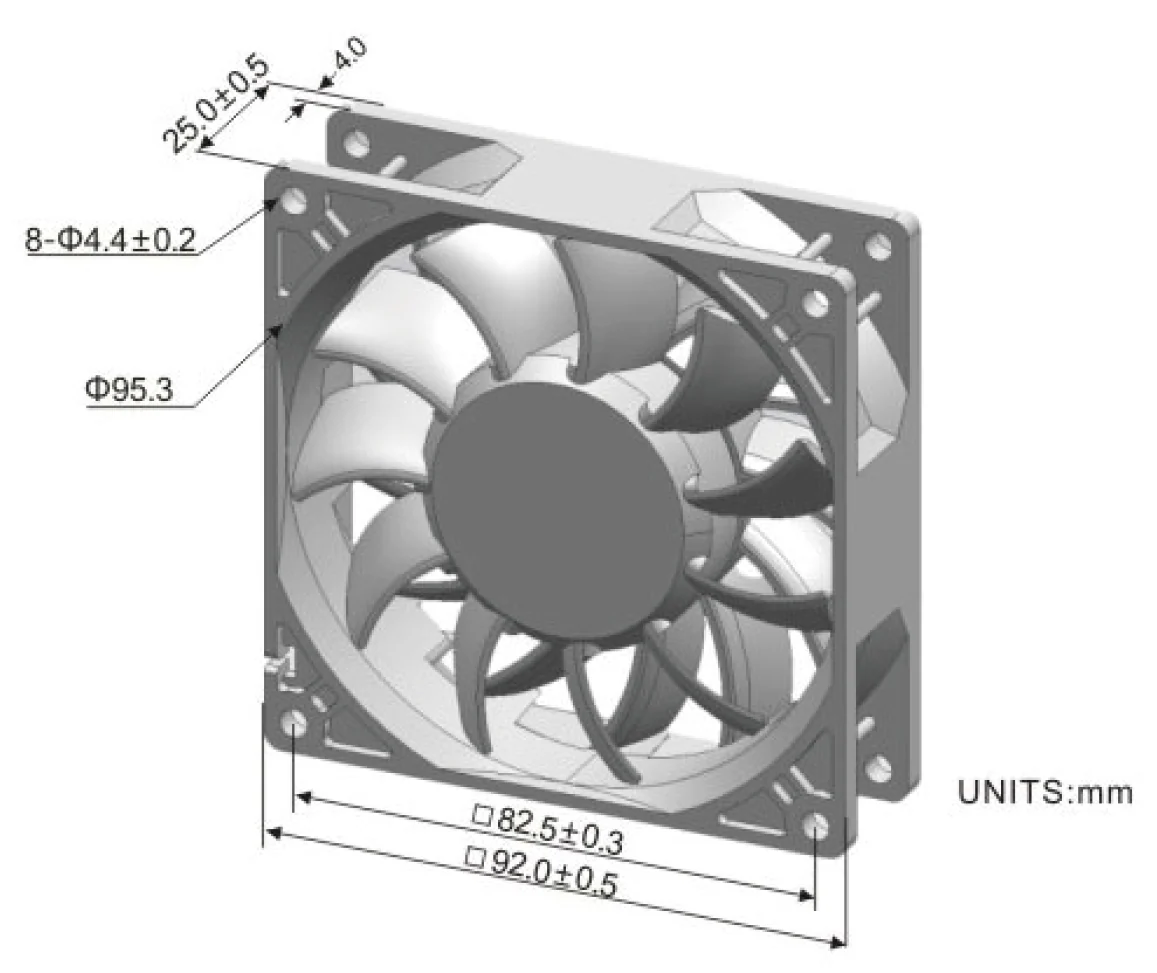

LWAD9225MM-07 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD9225MM-07 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 92 mm, rated 24 V DC, maximum airflow 108.6 m³/h, maximum static pressure 55 Pa, noise 41.1 dB(A), input power 7.2 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD9225MM-07
Series	LWAD9225
Motor type	DC
Rated voltage	24 V
Current	0.3 A
Input power	7.2 W
Speed	3,500 rpm
Max. airflow	108.6 m³/h
Max. static pressure	55 Pa
Noise	41.1 dB(A)
Frame size	92 mm
Dimensions	92x25mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD9225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (92 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD9225MM-07 this model	108.6 m³/h	55 Pa	3,500 rpm	7.2 W	41.1 dB(A)	24 V
LWAD9238HD-09	186.6 m³/h	197 Pa	7,000 rpm	19.2 W	58.2 dB(A)	48 V	View
LWAD9238MD-09	186.6 m³/h	197 Pa	7,000 rpm	14.4 W	58.2 dB(A)	24 V	View
LWAD9238LD-09	186.6 m³/h	197 Pa	7,000 rpm	14.4 W	58.2 dB(A)	12 V	View
LWAD9238HL-08	213.6 m³/h	257 Pa	8,000 rpm	28.8 W	61.1 dB(A)	48 V	View
LWAD9238ML-08	213.6 m³/h	257 Pa	8,000 rpm	19.2 W	61.1 dB(A)	24 V	View
LWAD9238LL-08	213.6 m³/h	257 Pa	8,000 rpm	18 W	61.1 dB(A)	12 V	View
LWAD9238HM-07	240 m³/h	325 Pa	9,000 rpm	38.4 W	63.6 dB(A)	48 V	View
LWAD9238MM-07	240 m³/h	325 Pa	9,000 rpm	24 W	63.6 dB(A)	24 V	View
LWAD9238LM-07	240 m³/h	325 Pa	9,000 rpm	24 W	63.6 dB(A)	12 V	View
LWAD9238HH-06	267 m³/h	401 Pa	10,000 rpm	48 W	65.9 dB(A)	48 V	View
LWAD9238MH-06	267 m³/h	401 Pa	10,000 rpm	36 W	65.9 dB(A)	24 V	View
LWAD9238LH-06	267 m³/h	401 Pa	10,000 rpm	36 W	65.9 dB(A)	12 V	View
LWAD9238HX-05	293.4 m³/h	486 Pa	11,000 rpm	57.6 W	68 dB(A)	48 V	View
LWAD9238MX-05	293.4 m³/h	486 Pa	11,000 rpm	48 W	68 dB(A)	24 V	View
