Frame size120 mm4.7 in
Max airflow108.21 m³/h64 CFM
Max static pressure90.98 Pa0.37 in. wg
Voltage100-240 V
Speed3,500 rpm
Noise47 dB(A)

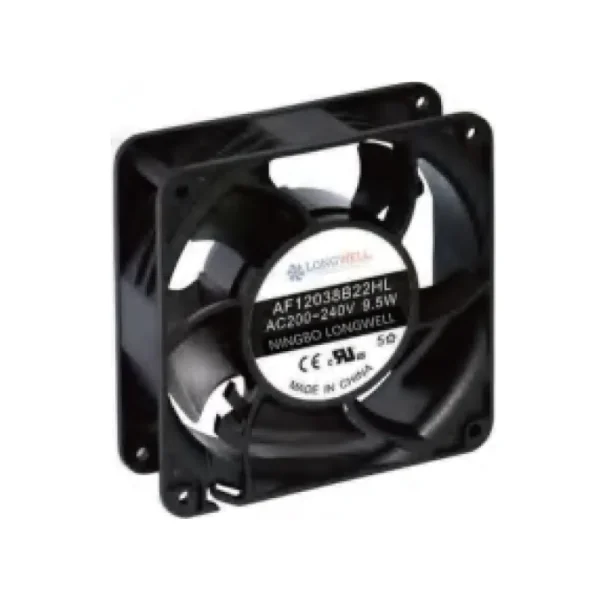

LWAE12038SH-01 EC Cooling Fan 120 mm

120 mm | EC | Max airflow 108.21 m³/h | Max static pressure 90.98 Pa | 47 dB(A)

SKU: LWAE12038SH-01 Categories: Cooling Fans & Blowers, EC Cooling Fans, Impeller Ø120–254 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWAE12038SH-012 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Automation cabinets Data-center cooling Drive & control cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAE12038SH-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE12038SH-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

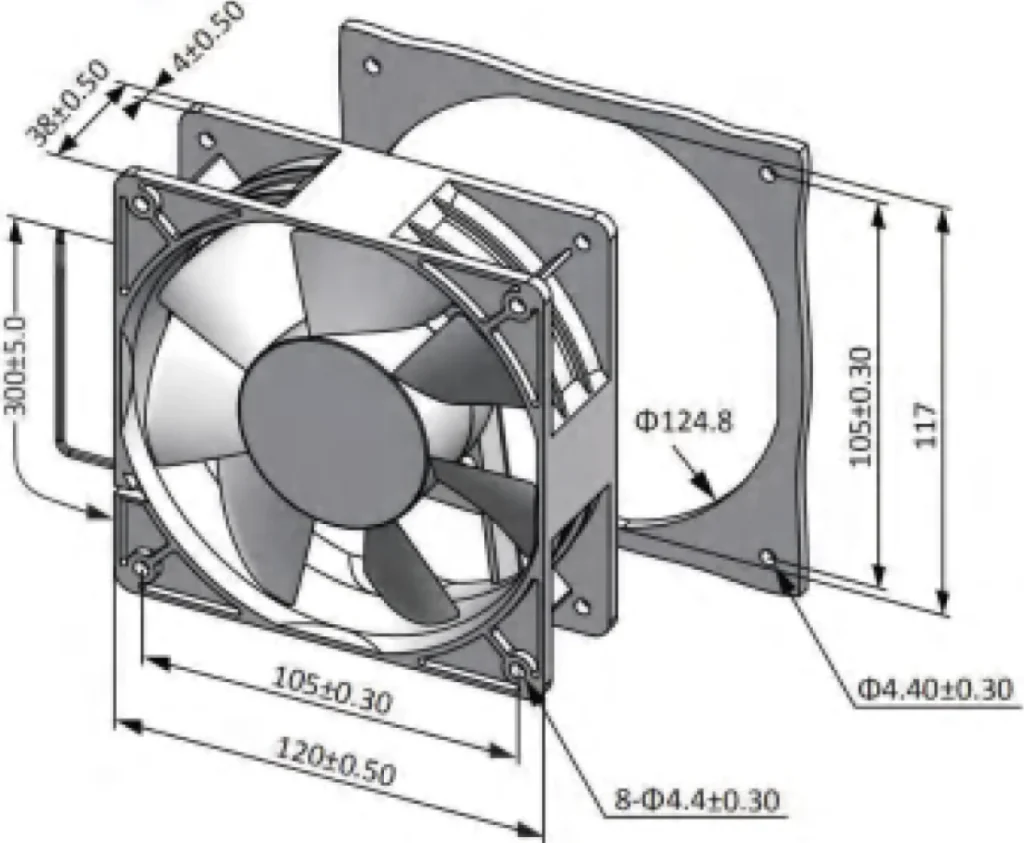

Dimensional drawing LWAE12038SH-01

LWAE12038SH-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWAE12038SH-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE12038SH-01

LWAE12038SH-01 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 120 mm, rated 100-240 V EC, maximum airflow 108.21 m³/h, maximum static pressure 90.98 Pa, noise 47 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE12038SH-01
Series	LWAE12038
Motor type	EC
Phase	1-phase
Rated voltage	100-240 V
Current	0.18 A
Speed	3,500 rpm
Max. airflow	108.21 m³/h
Max. static pressure	90.98 Pa
Noise	47 dB(A)
Humidity	5 % RH ~ 90% RH
Frame size	120 mm
Dimensions	120x38mm
Bearing	Type : Two Ball Bearings

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAE12038: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
