Frame size120 mm4.7 in
Max airflow104 m³/h60.93 CFM
Max static pressure27.38 Pa0.11 in. wg
Voltage100-240 V
Speed2,200 rpm
Noise32.9 dB(A)

LWAE12025SL-03 EC Cooling Fan 120 mm

120 mm | EC | Max airflow 60.93 m³/h | Max static pressure 27.38 Pa | 32.9 dB(A)

SKU: LWAE12025SL-03 Categories: Cooling Fans & Blowers, EC Cooling Fans, Impeller Ø120–254 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAE12025SL-031 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Automation cabinets Data-center cooling Drive & control cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAE12025SL-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE12025SL-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWAE12025SL-03

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 100-240 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

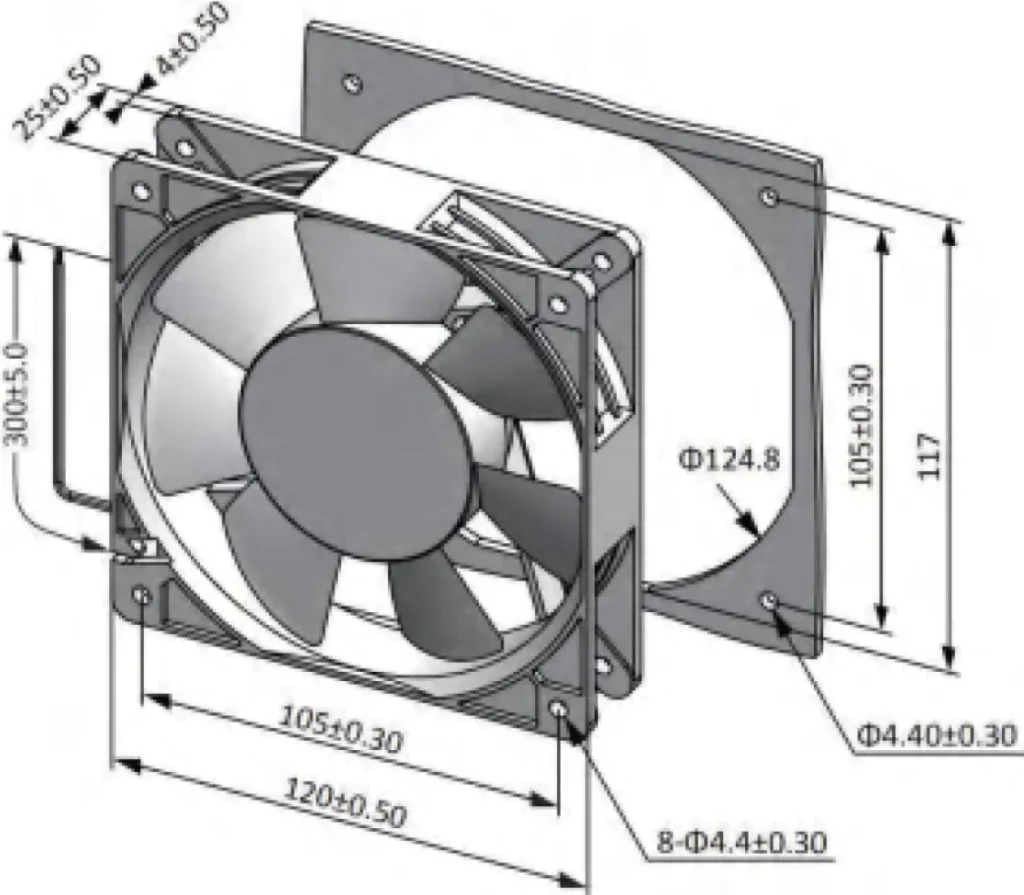

Dimensional drawing LWAE12025SL-03

LWAE12025SL-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWAE12025SL-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE12025SL-03

LWAE12025SL-03 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 120 mm, rated 100-240 V EC, maximum airflow 60.93 m³/h, maximum static pressure 27.38 Pa, noise 32.9 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE12025SL-03
Series	LWAE12025
Motor type	EC
Phase	1-phase
Rated voltage	100-240 V
Current	0.06 A
Speed	2,200 rpm
Max. airflow	104 m³/h
Max. airflow (CFM)	60.93 CFM
Max. static pressure	27.38 Pa
Noise	32.9 dB(A)
Frame size	120 mm
Dimensions	120x25mm

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAE12025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWAE12025SL-03

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same frame size (120 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAE12025SL-03 this model	104 m³/h	27.38 Pa	2,200 rpm	—	32.9 dB(A)	100-240 V
LWAE12038SL-03	77 m³/h	54.33 Pa	2,500 rpm	—	40 dB(A)	100-240 V	View
LWAE12038SM-02	91.03 m³/h	73.74 Pa	3,000 rpm	—	43 dB(A)	100-240 V	View
LWAE12038SL-06	94.72 m³/h	59.07 Pa	2,500 rpm	—	40 dB(A)	100-240 V	View
LWAE12038SH-01	108.21 m³/h	90.98 Pa	3,500 rpm	—	47 dB(A)	100-240 V	View
LWAE12038SM-05	115.01 m³/h	80.53 Pa	3,000 rpm	—	43 dB(A)	100-240 V	View
LWAE12025SM-02	121 m³/h	36.65 Pa	2,600 rpm	—	36.5 dB(A)	100-240 V	View
LWAE12038SH-04	139.1 m³/h	111.47 Pa	3,500 rpm	—	47 dB(A)	100-240 V	View
LWAE12025SH-01	145 m³/h	51.53 Pa	3,000 rpm	—	39.6 dB(A)	100-240 V	View
