LWAE3G200ST-5PEW-04 product photo
  • ImpellerØ200 mm
  • Max airflow886 m³/h
  • Voltage220 V
  • Speed2,600 rpm
  • Input power80 W
  • Noise54 dB(A)

LWAE3G200ST-5PEW-04 EC Axial Fan Ø200 mm

Ø200 mm | EC | Max airflow 886 m³/h | 54 dB(A)

SKU: LWAE3G200ST-5PEW-04 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

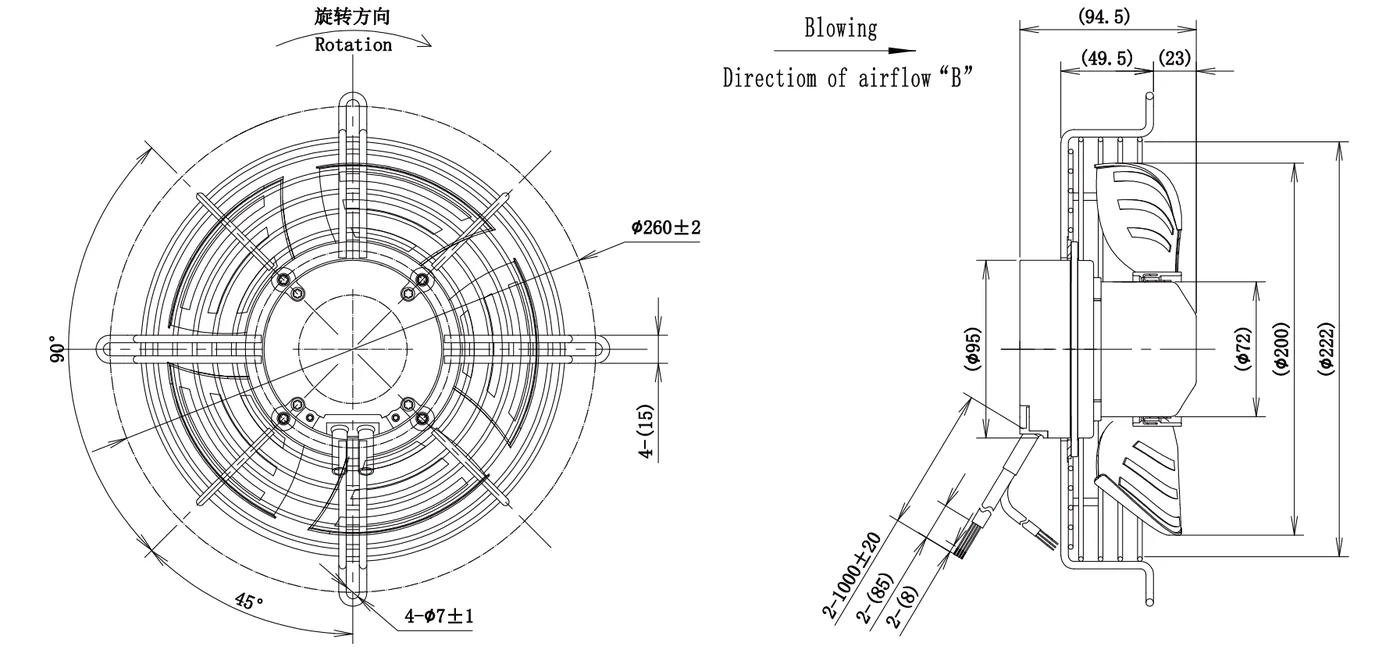

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAE3G200ST-5PEW-04 Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE3G200ST-5PEW-04 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø200 mm, rated 220 V EC, maximum airflow 886 m³/h, noise 54 dB(A), input power 80 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model LWAE3G200ST-5PEW-04
Series LWAE3G200
Motor type EC
Phase 1-phase
Rated voltage 220 V
Frequency 50 Hz
Current 0.6 A
Input power 80 W
Speed 2,600 rpm
Max. airflow 886 m³/h
Noise 54 dB(A)
Ambient temperature -25 ~ 60 °C
Impeller diameter Ø200 mm
Impeller material PA66
Protection class IP54
Insulation class B
Bearing Maintenance-free ball bearings
Duty S1

Typical applications

  • Condensers, evaporators and dry coolers
  • Heat-pump and chiller outdoor units
  • Building and workshop ventilation
  • Cooling towers and transformer cooling

Series LWAE3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø200 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAE3G200ST-5PEW-04 this model 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V
LWAE20060SL-03 303.51 m³/h62.92 Pa 1,600 rpm—49.8 dB(A)220 V View
LWAE20060SM-02 380.73 m³/h96.14 Pa 2,100 rpm—56.4 dB(A)220 V View
LWAE20060SH-01 474.97 m³/h143.08 Pa 2,600 rpm—61.7 dB(A)220 V View
LWDE-200 (8")U-MWN-01 700 m³/hsee curve 3,300 rpm140 W61 dB(A)110-120 V View
LWDE-200 (8")U-MWN-03 700 m³/hsee curve 3,300 rpm140 W59 dB(A)110-120 V View
LWAE3G200ST-5PGW-06 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200SS-5PGW-05 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200SS-5PEW-03 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWDE-200S-MBN-09 1,210 m³/h1,030 Pa 2,700 rpm170 W71 dB(A)230 V View
LWDE-200 (8")S-MWN-02 1,310 m³/hsee curve 3,300 rpm140 W61 dB(A)220-240 V View
LWDE-200 (8")S-MWN-04 1,310 m³/hsee curve 3,300 rpm140 W59 dB(A)220-240 V View
LWFE3G200-102SS-01 1,638 m³/h700 Pa 1,800 rpm510 W73 dB(A)230 V View
LWFE3G200-102DS-01 2,060 m³/h1,030 Pa 1,150 rpm300 W64 dB(A)230 V View
LWFE3G200-102DS-02 2,575 m³/h464 Pa 1,300 rpm390 W66 dB(A)230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
