ImpellerØ190 mm7.5 in
Max airflow1,500 m³/h883 CFM
Max static pressure250 Pa1.00 in. wg
Voltage220 V
Speed2,800 rpm
Input power150 W

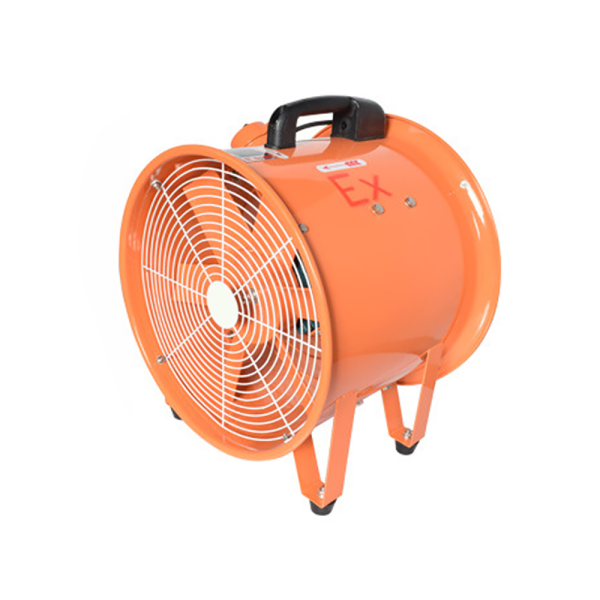

LWA-200S(T)M-03E Industrial Axial Fan Ø190 mm

Ø190 mm | AC | Max airflow 1,500 m³/h | Max static pressure 250 Pa

SKU: LWA-200S(T)M-03E Categories: Axial Fans, Impeller Ø190–390 mm, Industrial Axial Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWA-200S(T)M-03E2 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Roof exhaust Cooling towers Harvest stores Industrial machinery All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWA-200S(T)M-03E

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWA-200S(T)M-03Edatasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Dimensional drawing LWA-200S(T)M-03E

LWA-200S(T)M-03E Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWA-200S(T)M-03E: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWA-200S(T)M-03E

LWA-200S(T)M-03E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø190 mm, rated 220 V AC, maximum airflow 1,500 m³/h, maximum static pressure 250 Pa, input power 150 W.

Technical data

Model	LWA-200S(T)M-03E
Motor type	AC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Input power	150 W
Speed	2,800 rpm
Max. airflow	1,500 m³/h
Max. static pressure	250 Pa
Impeller diameter	Ø190 mm
Blade diameter	190mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
