EC Cooling Fan dimensional drawing (shared by several models)

EC Cooling Fan performance curve (shared by several models)

Frame size60 mm2.4 in
Max airflow11.32 m³/h7 CFM
Max static pressure39.84 Pa0.16 in. wg
Voltage100-240 V
Speed3,500 rpm
Noise24 dB(A)

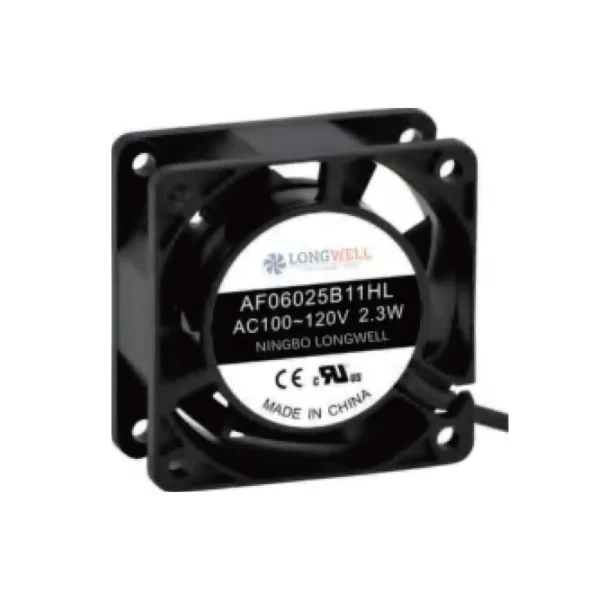

LWAE6025SL-03 EC Cooling Fan 60 mm

60 mm | EC | Max airflow 11.32 m³/h | Max static pressure 39.84 Pa | 24 dB(A)

SKU: LWAE6025SL-03 Categories: Cooling Fans & Blowers, EC Cooling Fans, Impeller Ø60–92 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAE6025SL-032 files · direct download

WEBPCatalogue data table WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Automation cabinets Data-center cooling Drive & control cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAE6025SL-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE6025SL-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Catalogue table & Curve LWAE6025SL-03

LWAE6025SL-03 Catalogue data table — **Catalogue data table**Series table from the catalogue — read the row for this model. Dimensions are given on the drawing of the same size.

LWAE6025SL-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWAE6025SL-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE6025SL-03

LWAE6025SL-03 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 60 mm, rated 100-240 V EC, maximum airflow 11.32 m³/h, maximum static pressure 39.84 Pa, noise 24 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE6025SL-03
Series	LWAE6025
Motor type	EC
Phase	1-phase
Rated voltage	100-240 V
Current	0.04 A
Speed	3,500 rpm
Max. airflow	11.32 m³/h
Max. static pressure	39.84 Pa
Noise	24 dB(A)
Frame size	60 mm
Dimensions	60x25mm

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAE6025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
