- Frame size92 mm
- Max airflow39.52 m³/h
- Max static pressure35.9 Pa
- Voltage100-240 V
- Speed2,500 rpm
- Noise24 dB(A)

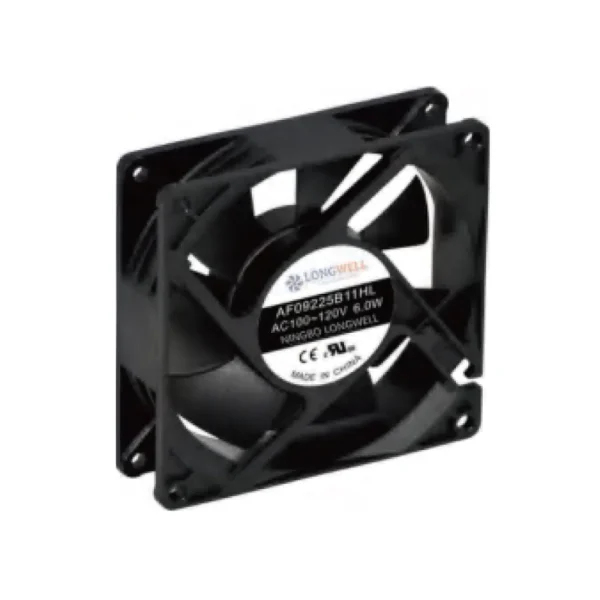

LWAE9225SL-03 EC Cooling Fan 92 mm
92 mm | EC | Max airflow 39.52 m³/h | Max static pressure 35.9 Pa | 24 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAE9225SL-03 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 92 mm, rated 100-240 V EC, maximum airflow 39.52 m³/h, maximum static pressure 35.9 Pa, noise 24 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE9225SL-03 |
|---|---|
| Series | LWAE9225 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 100-240 V |
| Current | 0.04 A |
| Speed | 2,500 rpm |
| Max. airflow | 39.52 m³/h |
| Max. static pressure | 35.9 Pa |
| Noise | 24 dB(A) |
| Frame size | 92 mm |
| Dimensions | 92x25mm |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAE9225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same frame size (92 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE9225SL-03 this model | 39.52 m³/h | 35.9 Pa | 2,500 rpm | — | 24 dB(A) | 100-240 V | |
| LWAE9225SM-02 | 49.41 m³/h | 52.28 Pa | 3,000 rpm | — | 27 dB(A) | 100-240 V | View |
| LWAE9238SL-03 | 59.73 m³/h | 49.05 Pa | 2,500 rpm | — | 42 dB(A) | 100-240 V | View |
| LWAE9225SH-01 | 59.9 m³/h | 73.84 Pa | 3,500 rpm | — | 31 dB(A) | 100-240 V | View |
| LWAE9238SM-02 | 67.01 m³/h | 61.98 Pa | 3,000 rpm | — | 49 dB(A) | 100-240 V | View |
| LWAE9238SH-01 | 82.19 m³/h | 84.41 Pa | 3,500 rpm | — | 52 dB(A) | 100-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
