Frame size92 mm3.6 in
Max airflow82.19 m³/h48 CFM
Max static pressure84.41 Pa0.34 in. wg
Voltage100-240 V
Speed3,500 rpm
Noise52 dB(A)

LWAE9238SH-01 EC Cooling Fan 92 mm

92 mm | EC | Max airflow 82.19 m³/h | Max static pressure 84.41 Pa | 52 dB(A)

SKU: LWAE9238SH-01 Categories: Cooling Fans & Blowers, EC Cooling Fans, Impeller Ø60–92 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAE9238SH-011 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Automation cabinets Data-center cooling Drive & control cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAE9238SH-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE9238SH-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Dimensional drawing LWAE9238SH-01

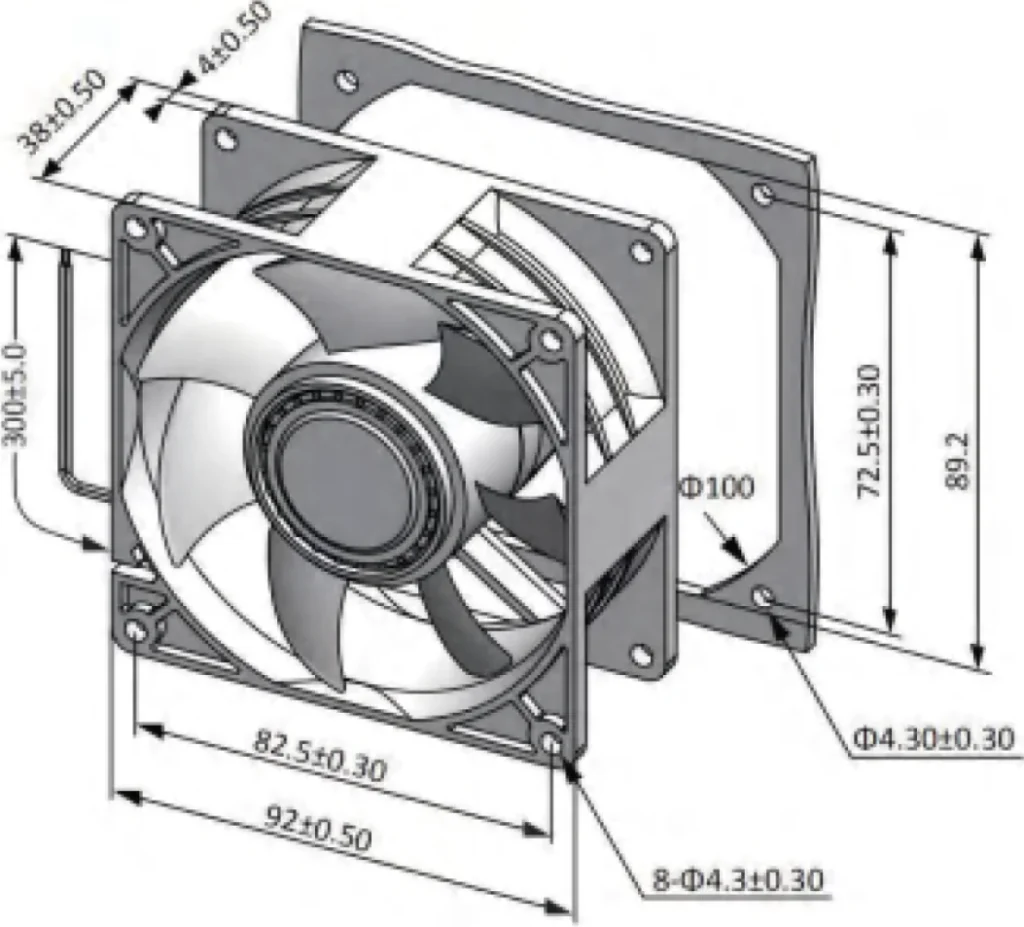

LWAE9238SH-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWAE9238SH-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE9238SH-01

LWAE9238SH-01 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 92 mm, rated 100-240 V EC, maximum airflow 82.19 m³/h, maximum static pressure 84.41 Pa, noise 52 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE9238SH-01
Series	LWAE9238
Motor type	EC
Phase	1-phase
Rated voltage	100-240 V
Current	0.11 A
Speed	3,500 rpm
Max. airflow	82.19 m³/h
Max. static pressure	84.41 Pa
Noise	52 dB(A)
Frame size	92 mm
Dimensions	92x38mm

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAE9238: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
