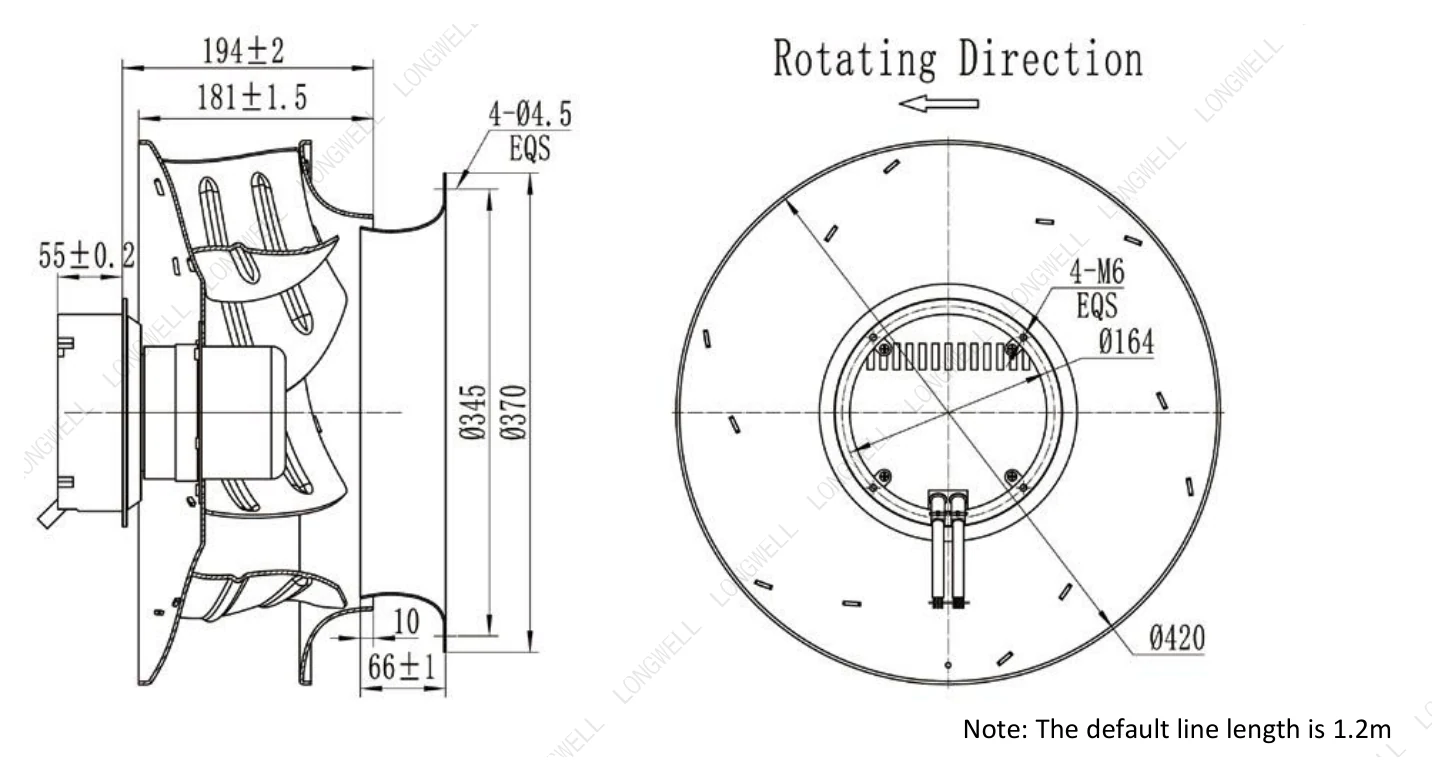

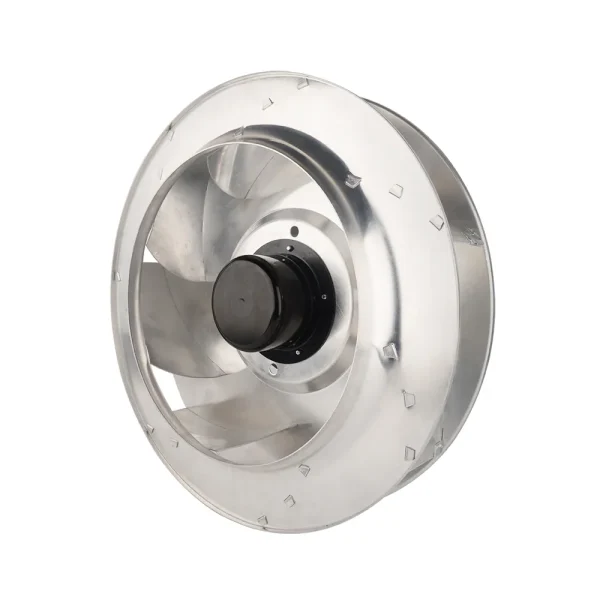

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ400 mm15.7 in
- Max airflow5,476 m³/h3,303 CFM
- Max static pressure600 Pa2.41 in. wg
- Voltage230 V
- Speed1,520 rpm
- Input power500 W
- Noise68 dB(A)
LWBE3G400-102NS-15 EC Backward Curved Centrifugal Fan Ø400 mm
Ø400 mm | EC | Max airflow 5,476 m³/h | Max static pressure 600 Pa | 68 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Cross-reference: same impeller size class as ebm-papst K3G400, ebm-papst R3G400, ebm-papst RadiPac 400, Ziehl-Abegg RH40C — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

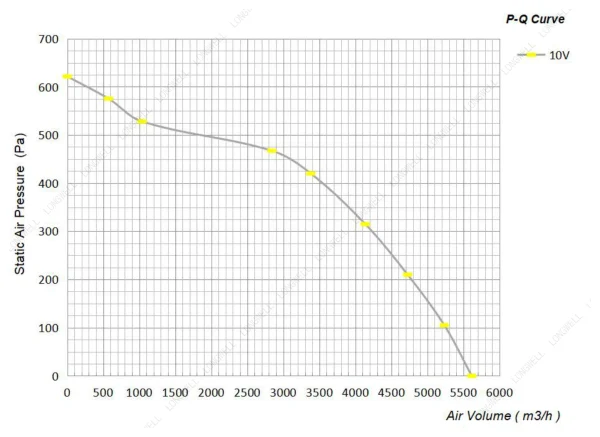

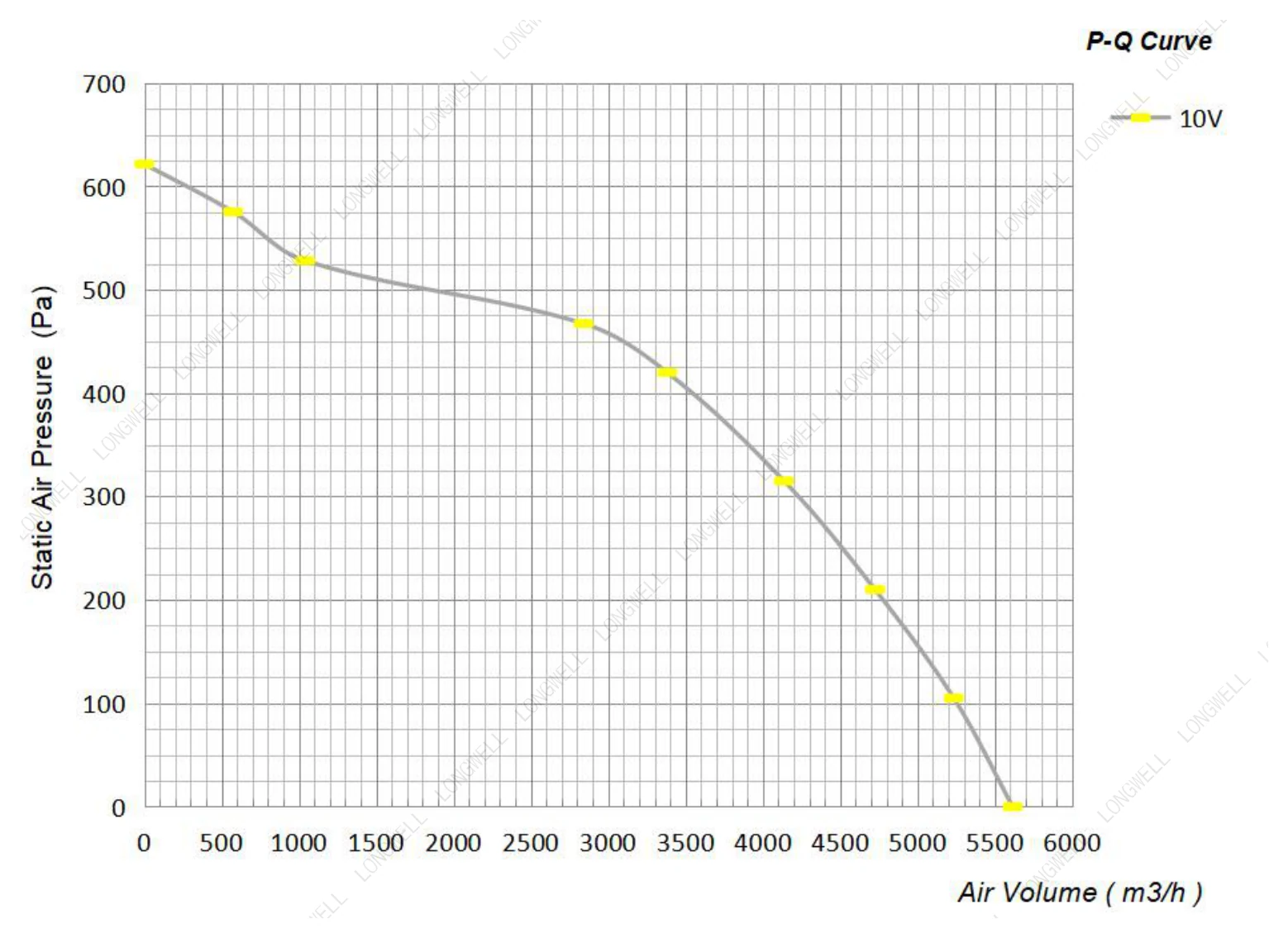

Performance curve (P-Q) LWBE3G400-102NS-15
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWBE3G400-102NS-15
LONGWELL 400mm EC Backward Curved Centrifugal Fan for AHU & HVAC Systems | LWBE3G400 · open in video library
Longwell Centrifugal Fans: Efficient and Quiet, Leading New Industry Trends | LWBE3G400-102NS-22 · open in video library

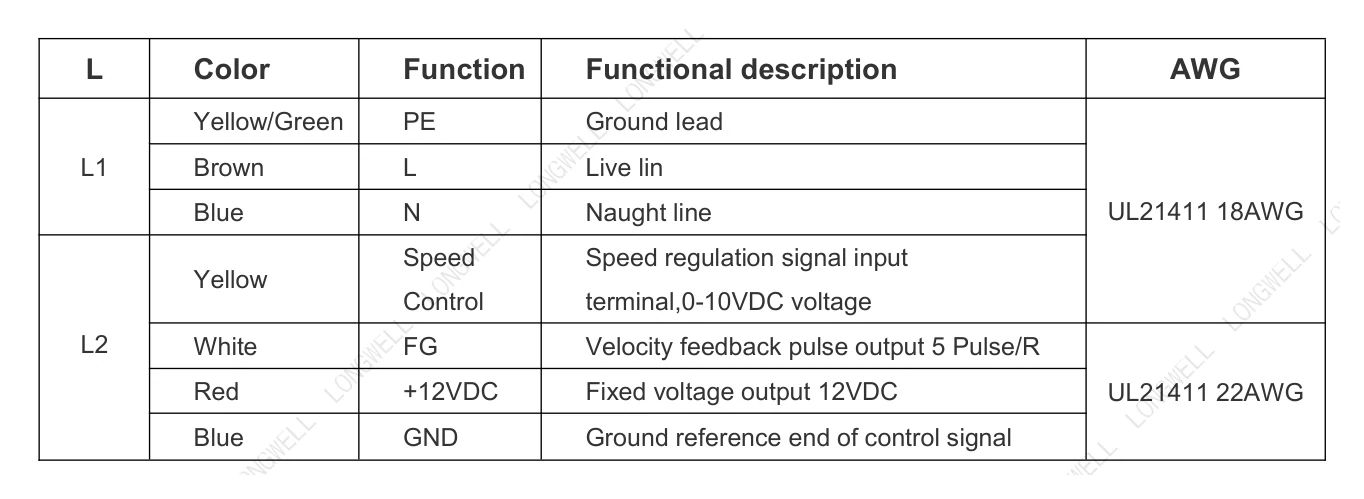

Drawing, Curve & Wiring LWBE3G400-102NS-15
Files for LWBE3G400-102NS-15: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWBE3G400-102NS-15
LWBE3G400-102NS-15 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø400 mm, rated 230 V EC, maximum airflow 5,476 m³/h, maximum static pressure 600 Pa, noise 68 dB(A), input power 500 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G400-102NS-15 |
|---|---|
| Series | LWBE3G400 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 3.6 A |
| Input power | 500 W |
| Speed | 1,520 rpm |
| Max. airflow | 5,476 m³/h |
| Max. airflow (CFM) | 3,303 CFM |
| Max. static pressure | 600 Pa |
| Noise | 68 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø400 mm |
| Rotor diameter | 102 mm |
| Impeller material | Aluminum Alloy (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
| Speed control | Control input 0~10VDC |
| Control signal | Control signal VSP voltage range 1.5±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 0.9±0.1VDC, the motor switches from operating mode to standby mode) |
| Speed feedback | Tach output: 5 Pulse/R; FG internal open circuit output, external pull-up resistor 10K, pull-up voltage V+ |
| Auxiliary output | Output 12±0.3VDC, Max Current: 10mA |
| Protection functions | Current limiting protection, Over-temperature protection, Over-current protectionLocked-rotor protection, Input power supply lacks phase protection |
| Soft start | Delay time <35 seconds to full speed |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
