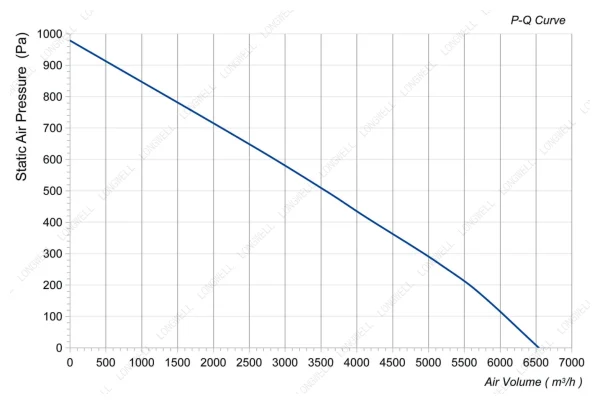

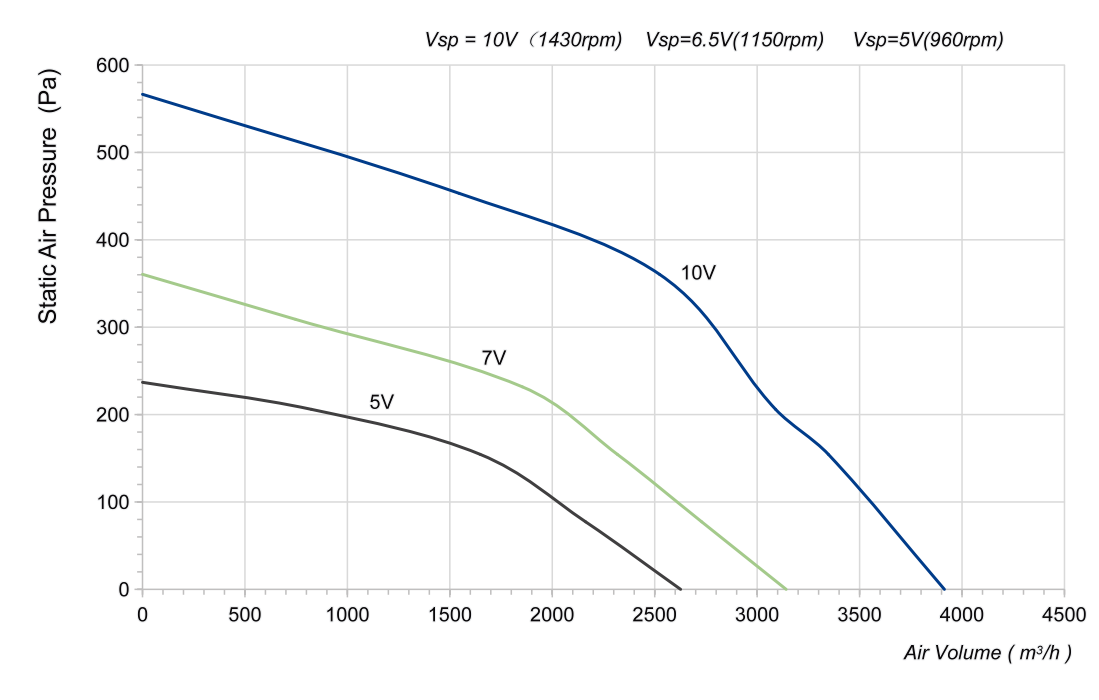

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ400 mm
- Max airflow3,914 m³/h
- Max static pressure556 Pa
- Voltage230 V
- Speed1,430 rpm
- Input power330 W
- Noise70 dB(A)
LWBE3G400-102PS-01 EC Plug Fan Ø400 mm
Ø400 mm | EC | Max airflow 3,914 m³/h | Max static pressure 556 Pa | 70 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

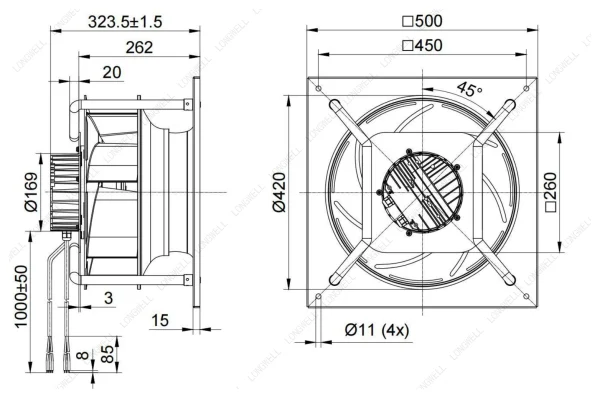

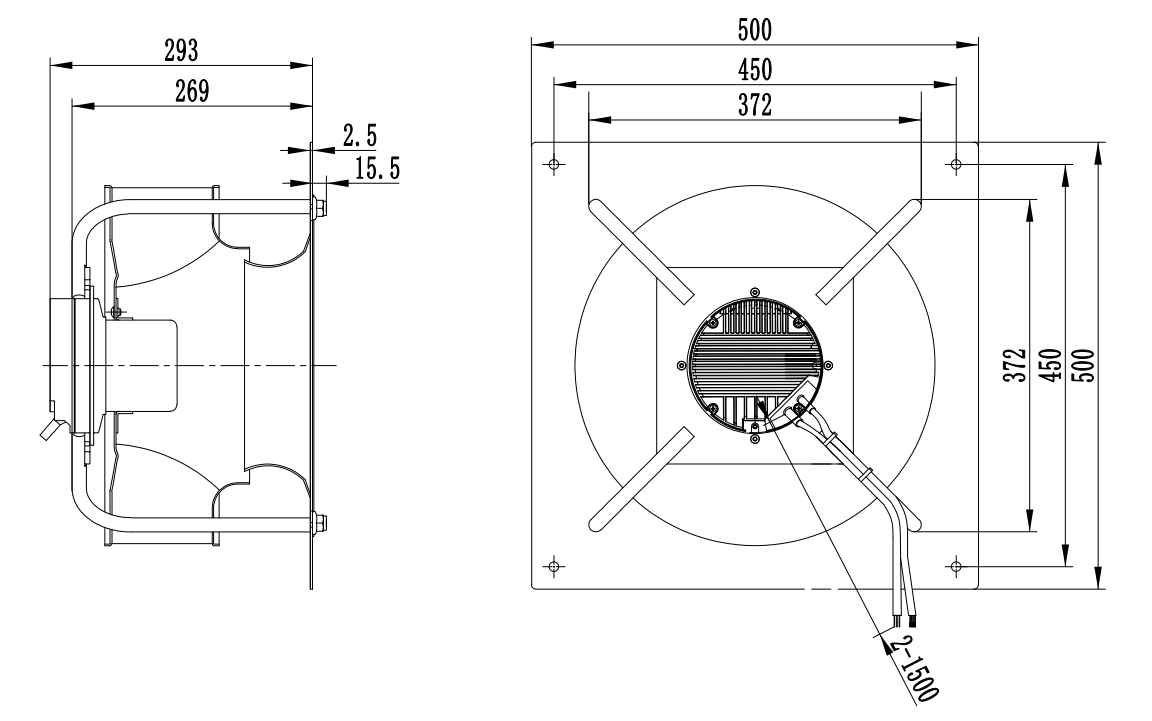

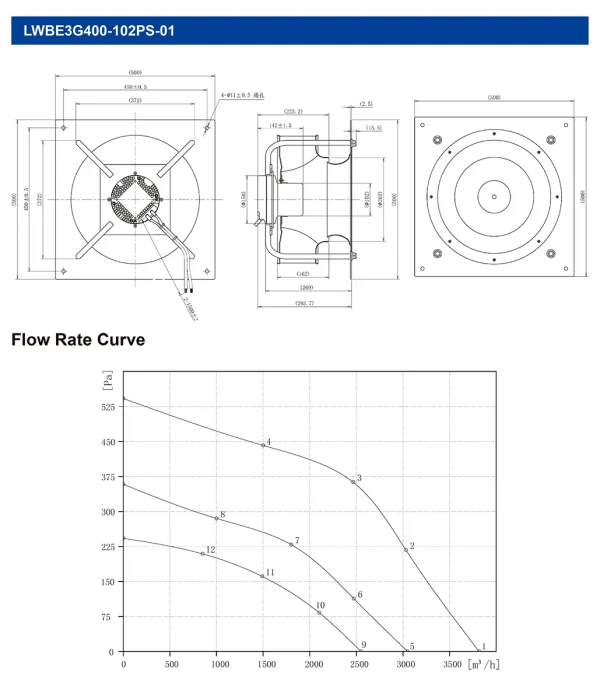

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Need a non-standard size or another format? Ask an engineer or search the download center.

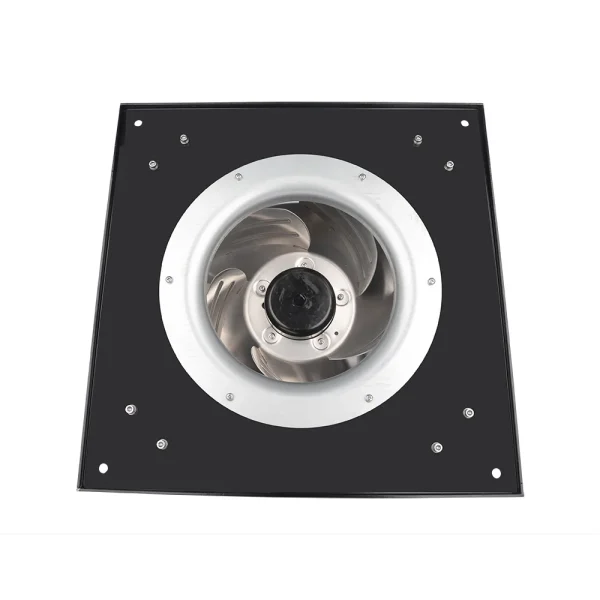

LWBE3G400-102PS-01 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø400 mm, rated 230 V EC, maximum airflow 3,914 m³/h, maximum static pressure 556 Pa, noise 70 dB(A), input power 330 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G400-102PS-01 |
|---|---|
| Series | LWBE3G400 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.5 A |
| Input power | 330 W |
| Speed | 1,430 rpm |
| Max. airflow | 3,914 m³/h |
| Max. airflow (CFM) | 2,302 CFM |
| Max. static pressure | 556 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40~ 75℃ |
| Humidity | 0 ~ 90% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø400 mm |
| Rotor diameter | 102 |
| Impeller material | Plastic+ fiberglass(Impeller) |
| Protection class | IP54 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10). At 40℃room, humidity 15%~65%RH |

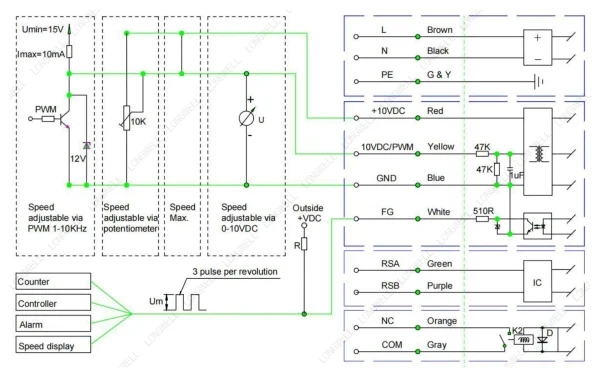

| Speed control | Control input 0~10VDC / PWM |
| Control signal | Control signal VSP voltage range1±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 1.0±0.2VDC, the motor switches from operating mode to standby mode) |
| PWM input | PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% . |
| Speed feedback | Tach output: 12 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V |
| Auxiliary output | Output 10VDC, Max Current 10 mA |
| Protection functions | Over-temperature protection, Over-current protection, Locked-rotor protection’ |
| Soft start | Delay time <20 seconds to full speed |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø400 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G400-102PS-01 this model | 3,914 m³/h | 556 Pa | 1,430 rpm | 330 W | 70 dB(A) | 230 V | |
| LWBE3G400-102PS-11 | 3,554 m³/h | 546 Pa | 1,460 rpm | 300 W | 76 dB(A) | 230 V | View |
| LWBE3G400-102NS-16 | 3,554 m³/h | 546 Pa | 1,460 rpm | 300 W | 76 dB(A) | 230 V | View |
| LWDE-400 (16")U-MWN-01 | 4,032 m³/h | see curve | 2,800 rpm | 1,200 W | 81 dB(A) | 110-120 V | View |
| LWDE-400 (16")U-MWN-03 | 4,032 m³/h | see curve | 2,800 rpm | 1,200 W | 70 dB(A) | 110-120 V | View |
| LWBE3G400-102PS-09 | 4,463 m³/h | 420 Pa | 1,250 rpm | 297 W | — | 230 V | View |
| LWBE3G400-102NS-15 | 5,476 m³/h | 600 Pa | 1,520 rpm | 500 W | 68 dB(A) | 230 V | View |
| LWBE3G400-102PS-10 | 5,615 m³/h | 622 Pa | 1,520 rpm | 500 W | — | 230 V | View |
| LWFE3G400-102PS-02 | 6,489 m³/h | 978.5 Pa | 1,800 rpm | 700 W | 85 dB(A) | 230 V | View |
| LWDE-400 (16")S-MWN-02 | 6,850 m³/h | see curve | 2,800 rpm | 1,200 W | 81 dB(A) | 220-240 V | View |
| LWDE-400 (16")S-MWN-04 | 6,850 m³/h | see curve | 2,800 rpm | 1,200 W | 70 dB(A) | 220-240 V | View |
| LWBE3G400-138PT-04 | 7,459 m³/h | 840 Pa | 2,060 rpm | 1,100 W | 77 dB(A) | 400 V | View |
| LWBE3G400-138NT-12 | 7,459 m³/h | 840 Pa | 1,100 rpm | 1,480 W | 71 dB(A) | 400 V | View |
| LWBE3G400-188PT-07 | 9,682 m³/h | 1,627 Pa | 2,650 rpm | 2,060 W | 84 dB(A) | 400 V | View |
| LWBE3G400-188NT-17 | 9,682 m³/h | 1,627 Pa | 2,650 rpm | 2,060 W | 84 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
