- ImpellerØ110 mm
- Max airflow900 m³/h
- Max static pressure128 Pa
- Voltage230 V
- Speed1,250 rpm
- Input power90 W
- Noise61 dB(A)

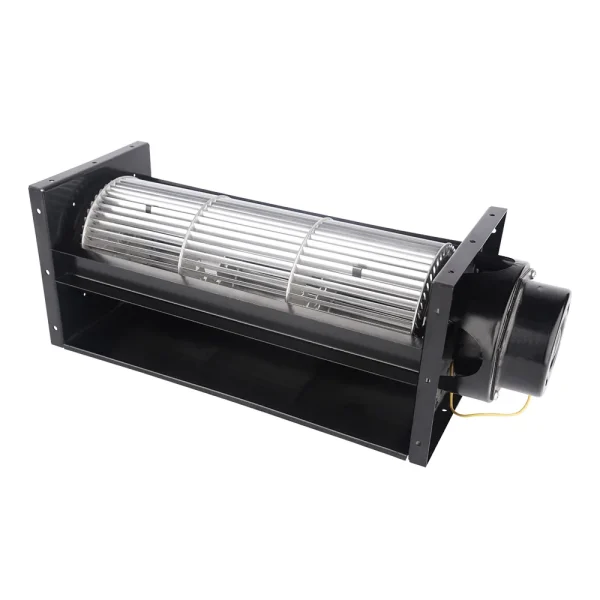

LWCA-110380SN-06 AC Cross Flow Fan Ø110 mm
Ø110 mm | AC | Max airflow 900 m³/h | Max static pressure 128 Pa | 61 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCA-110380SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø110 mm, rated 230 V AC, maximum airflow 900 m³/h, maximum static pressure 128 Pa, noise 61 dB(A), input power 90 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-110380SN-06 |
|---|---|
| Series | LWCA11038 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 90 W |
| Speed | 1,250 rpm |
| Max. airflow | 900 m³/h |
| Max. static pressure | 128 Pa |
| Noise | 61 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø110 mm |
| Outlet length | 380mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA11038: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø110 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-110380SN-06 this model | 900 m³/h | 128 Pa | 1,250 rpm | 90 W | 61 dB(A) | 230 V | |
| LWCA-110520SN-06 | 1,200 m³/h | 162 Pa | 1,250 rpm | 95 W | 63 dB(A) | 230 V | View |
| LWCA-110620SN-06 | 1,350 m³/h | 193 Pa | 1,250 rpm | 100 W | 66 dB(A) | 230 V | View |
| LWCA-110720SN-06 | 1,550 m³/h | 224 Pa | 1,250 rpm | 105 W | 67 dB(A) | 230 V | View |
| LWCA-110820SN-06 | 1,750 m³/h | 255 Pa | 1,250 rpm | 115 W | 68 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
