Downloads for LWCA-100820SN-06

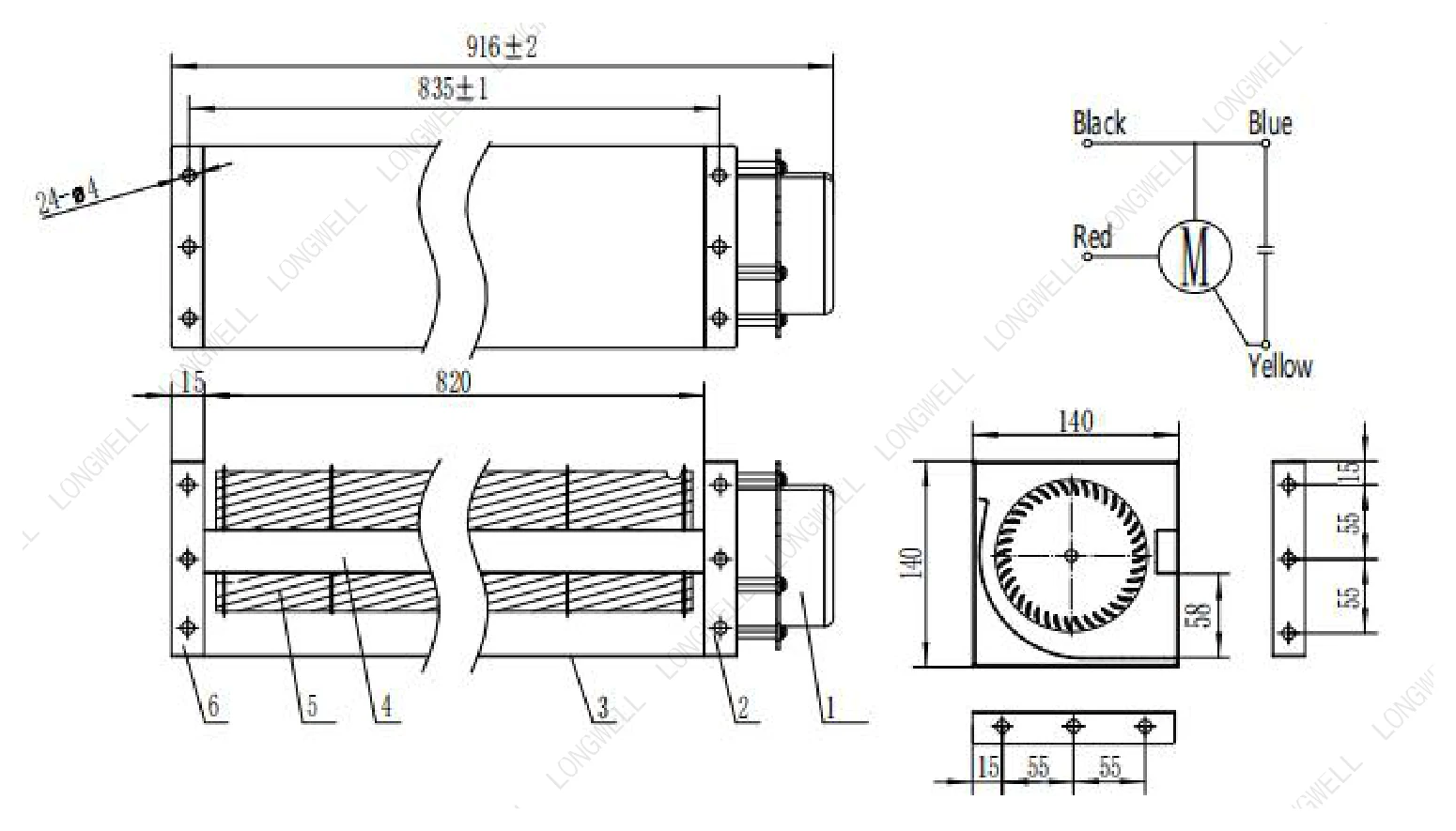

PDFDatasheetPDFFull product catalogue · Cross FLow Fan · model on PDF p. 36 · 28.2 MBPDFDrawing · 222 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ100 mm3.9 in
- Max airflow1,500 m³/h882 CFM
- Max static pressure203 Pa0.81 in. wg
- Voltage230 V
- Speed1,400 rpm
- Input power110 W
- Noise61 dB(A)

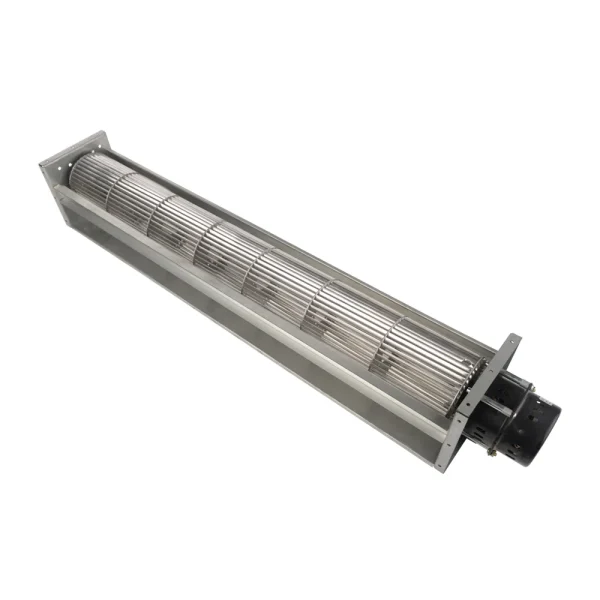

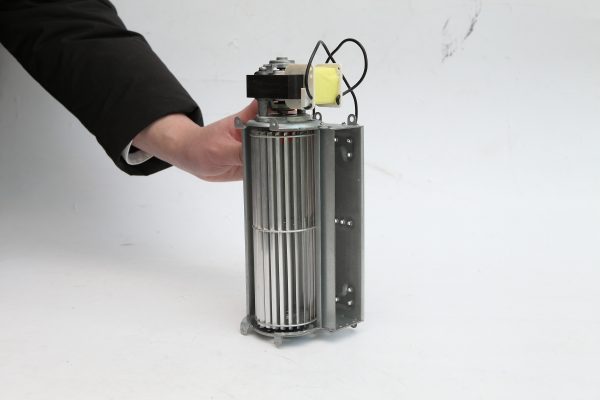

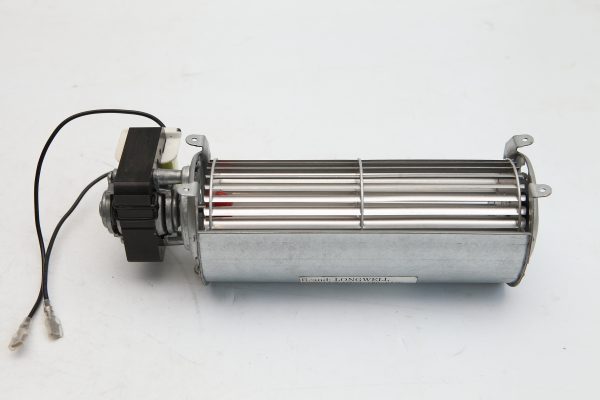

LWCA-100820SN-06 AC Cross Flow Fan Ø100 mm
Ø100 mm | AC | Max airflow 1,500 m³/h | Max static pressure 203 Pa | 61 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 36
All files for LWCA-100820SN-065 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Air curtain OEM programme · Trench convector & heating terminals · Consumer air cooler & fan ODM — all case studies on longwellfans.com
Typical applications: Air curtains · Air heaters · Dry-type transformer cooling · Electric heaters — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCA-100820SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø100 mm, rated 230 V AC, maximum airflow 1,500 m³/h, maximum static pressure 203 Pa, noise 61 dB(A), input power 110 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-100820SN-06 |
|---|---|
| Series | LWCA100820 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 110 W |
| Speed | 1,400 rpm |
| Max. airflow | 1,500 m³/h |
| Max. airflow (CFM) | 882 CFM |
| Max. static pressure | 203 Pa |
| Noise | 61 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -30~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø100 mm |
| Outlet length | 820mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy: 30,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment : Operating temperature: -30~60 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -30~ |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA100820: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø100 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-100820SN-06 this model | 1,500 m³/h | 203 Pa | 1,400 rpm | 110 W | 61 dB(A) | 230 V | |
| LWCA-100380SN-06 | 700 m³/h | 95 Pa | 1,400 rpm | 60 W | 55 dB(A) | 230 V | View |
| LWCA-100520SN-06 | 950 m³/h | 128 Pa | 1,400 rpm | 75 W | 58 dB(A) | 230 V | View |
| LWCA-100620SN-06 | 1,100 m³/h | 151 Pa | 1,400 rpm | 90 W | 59 dB(A) | 230 V | View |
| LWCA-100720SN-06 | 1,300 m³/h | 175 Pa | 1,400 rpm | 100 W | 60 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
