- ImpellerØ120 mm
- Max airflow1,780 m³/h
- Max static pressure140 Pa
- Voltage230 V
- Speed1,350 rpm
- Input power150 W
- Noise71 dB(A)

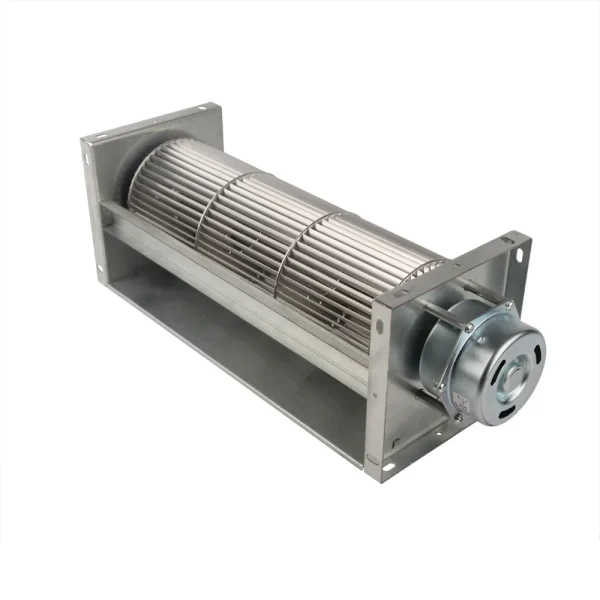

LWCA-120780SN-06 AC Cross Flow Fan Ø120 mm
Ø120 mm | AC | Max airflow 1,780 m³/h | Max static pressure 140 Pa | 71 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCA-120780SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø120 mm, rated 230 V AC, maximum airflow 1,780 m³/h, maximum static pressure 140 Pa, noise 71 dB(A), input power 150 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-120780SN-06 |
|---|---|
| Series | LWCA12078 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 150 W |
| Speed | 1,350 rpm |
| Max. airflow | 1,780 m³/h |
| Max. static pressure | 140 Pa |
| Noise | 71 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø120 mm |
| Outlet length | 780mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA12078: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø120 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-120780SN-06 this model | 1,780 m³/h | 140 Pa | 1,350 rpm | 150 W | 71 dB(A) | 230 V | |
| LWFA2E120-092NS-01 | 206 m³/h | 278 Pa | 2,550 rpm | 50 W | 51 dB(A) | 230 V | View |
| LWFA2E120-092SS-02 | 206 m³/h | 278 Pa | 2,400 rpm | 58 W | 51 dB(A) | 230 V | View |
| LWFA2E120-092NS-02 | 216 m³/h | 391 Pa | 2,800 rpm | 63 W | 53 dB(A) | 230 V | View |
| LWFA2E120-092SS-03 | 216 m³/h | 391 Pa | 2,500 rpm | 73 W | 53 dB(A) | 230 V | View |
| LWFA4E120-092SS-01 | 262.5 m³/h | 294 Pa | 1,760 rpm | 54 W | 59 dB(A) | 230 V | View |
| LWFA2E120-092DS-01 | 299 m³/h | 278 Pa | 1,300 rpm | 65 W | 54 dB(A) | 230 V | View |
| LWFA2E120-092DS-06 | 391 m³/h | 443 Pa | 2,100 rpm | 95 W | 66 dB(A) | 230 V | View |
| LWFA2E120-092DS-04 | 391 m³/h | 402 Pa | 1,550 rpm | 116 W | 60 dB(A) | 230 V | View |
| LWFA2E120-092DS-05 | 412 m³/h | 330 Pa | 2,100 rpm | 85 W | 66 dB(A) | 230 V | View |
| LWFA2E120-092DS-03 | 433 m³/h | 309 Pa | 1,700 rpm | 105 W | 60 dB(A) | 230 V | View |
| LWCA-120380SN-06 | 1,000 m³/h | 68 Pa | 1,350 rpm | 109 W | 63 dB(A) | 230 V | View |
| LWCA-120560SN-06 | 1,380 m³/h | 100 Pa | 1,350 rpm | 120 W | 65 dB(A) | 230 V | View |
| LWCA-120680SN-06 | 1,560 m³/h | 122 Pa | 1,350 rpm | 135 W | 67 dB(A) | 230 V | View |
| LWCA-120900SN-06 | 2,000 m³/h | 161 Pa | 1,350 rpm | 170 W | 72 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
