- ImpellerØ30 mm
- Max airflow158 m³/h
- Max static pressure13 Pa
- Voltage230 V
- Speed2,200 rpm
- Input power13 W
- Noise29 dB(A)
LWCA-30610SN-06 AC Cross Flow Fan Ø30 mm
Ø30 mm | AC | Max airflow 158 m³/h | Max static pressure 13 Pa | 29 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCA-30610SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø30 mm, rated 230 V AC, maximum airflow 158 m³/h, maximum static pressure 13 Pa, noise 29 dB(A), input power 13 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-30610SN-06 |
|---|---|
| Series | LWCA30610 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Dual inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 13 W |
| Speed | 2,200 rpm |
| Max. airflow | 158 m³/h |
| Max. static pressure | 13 Pa |
| Noise | 29 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -30~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø30 mm |

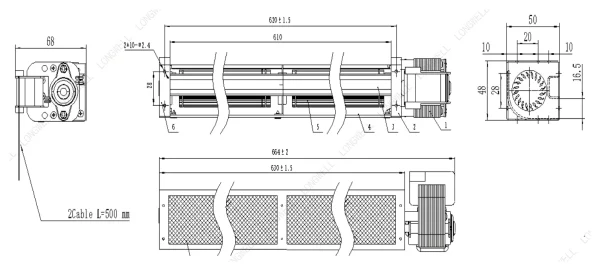

| Outlet length | 610mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy: 30,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment : Operating temperature: -30~60 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -30~ |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA30610: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

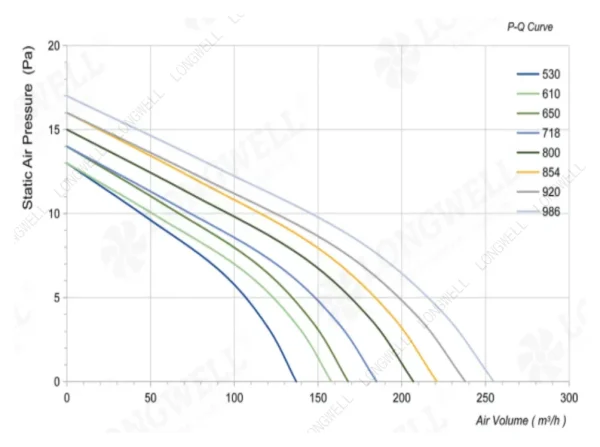

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø30 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-30610SN-06 this model | 158 m³/h | 13 Pa | 2,200 rpm | 13 W | 29 dB(A) | 230 V | |
| LWCA-30250SN-07 | 59 m³/h | 11 Pa | 2,400 rpm | 10 W | 26 dB(A) | 230 V | View |
| LWCA-30290SN-07 | 71 m³/h | 12 Pa | 2,400 rpm | 11 W | 27 dB(A) | 230 V | View |
| LWCA-30290UN-06 | 71 m³/h | 12 Pa | 2,400 rpm | 12 W | 27 dB(A) | 115 V | View |
| LWCA-30350SN-07 | 84 m³/h | 13 Pa | 2,400 rpm | 11 W | 27 dB(A) | 230 V | View |
| LWCA-30350UN-06 | 84 m³/h | 13 Pa | 2,400 rpm | 13 W | 27 dB(A) | 115 V | View |
| LWCA-30420SN-07 | 100 m³/h | 14 Pa | 2,400 rpm | 11 W | 28 dB(A) | 230 V | View |
| LWCA-30420UN-06 | 100 m³/h | 14 Pa | 2,400 rpm | 13 W | 28 dB(A) | 115 V | View |
| LWCA-30530SN-06 | 137 m³/h | 13 Pa | 2,200 rpm | 13 W | 29 dB(A) | 230 V | View |
| LWCA-30650SN-06 | 168 m³/h | 14 Pa | 2,200 rpm | 14 W | 29 dB(A) | 230 V | View |
| LWCA-30718SN-06 | 185 m³/h | 14 Pa | 2,200 rpm | 15 W | 30 dB(A) | 230 V | View |
| LWCA-30800SN-06 | 207 m³/h | 15 Pa | 2,200 rpm | 15 W | 31 dB(A) | 230 V | View |
| LWCA-30854SN-06 | 221 m³/h | 16 Pa | 2,200 rpm | 15 W | 31 dB(A) | 230 V | View |
| LWCA-30920SN-06 | 238 m³/h | 16 Pa | 2,200 rpm | 16 W | 32 dB(A) | 230 V | View |
| LWCA-30986SN-06 | 255 m³/h | 17 Pa | 2,200 rpm | 16 W | 33 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
