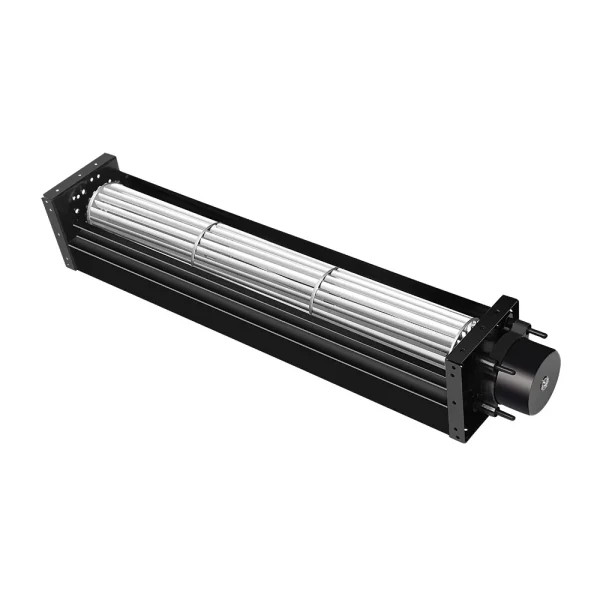

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ30 mm1.2 in
- Max airflow125 m³/h73.5 CFM
- Max static pressure17 Pa0.07 in. wg
- Voltage24 V
- Speed2,400 rpm
- Input power2.16 W
- Noise34 dB(A)
LWCD-30420MN-07 DC Cross Flow Fan Ø30 mm
Ø30 mm | DC | Max airflow 125 m³/h | Max static pressure 17 Pa | 34 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCD-30420MN-07
LWCD-30420MN-07 — construction, airflow path and running condition.
LONGWELL LWCD-30420MN-07 DC Cross Flow Fan Airflow Performance Test · open in video library
Longwell Cross-Flow Fan Test | LWCD-30420MN-07 · open in video library

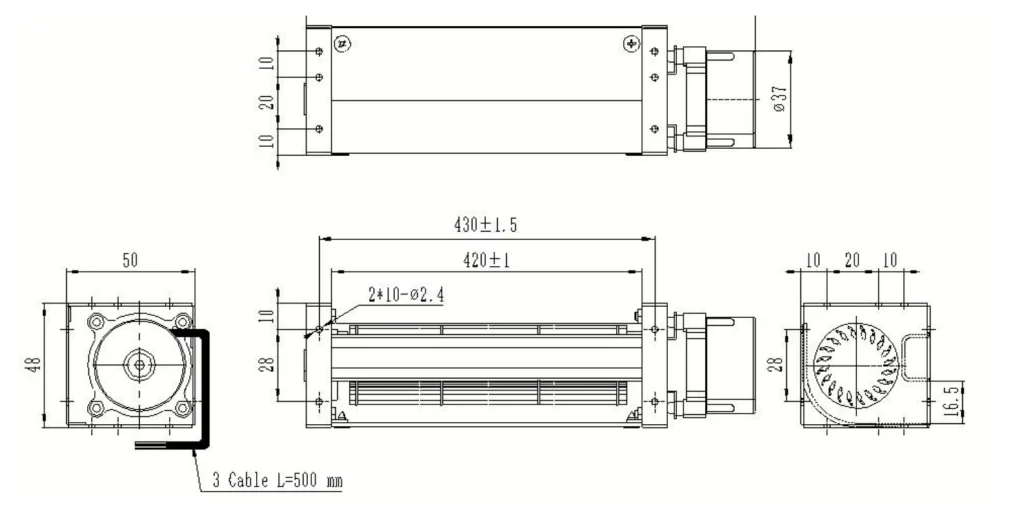

Dimensional drawing LWCD-30420MN-07
Files for LWCD-30420MN-07: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCD-30420MN-07
LWCD-30420MN-07 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø30 mm, rated 24 V DC, maximum airflow 125 m³/h, maximum static pressure 17 Pa, noise 34 dB(A), input power 2.16 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-30420MN-07 |
|---|---|
| Series | LWCD30420 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Current | 0.09 A |
| Input power | 2.16 W |
| Speed | 2,400 rpm |
| Max. airflow | 125 m³/h |
| Max. airflow (CFM) | 73.5 CFM |
| Max. static pressure | 17 Pa |
| Noise | 34 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø30 mm |
| Outlet length | 420mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD30420: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
