- ImpellerØ30 mm
- Max airflow207 m³/h
- Max static pressure19 Pa
- Voltage24 V
- Speed2,400 rpm
- Input power1.32 W
- Noise36 dB(A)
LWCD-30800MN-06 DC Cross Flow Fan Ø30 mm
Ø30 mm | DC | Max airflow 207 m³/h | Max static pressure 19 Pa | 36 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCD-30800MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø30 mm, rated 24 V DC, maximum airflow 207 m³/h, maximum static pressure 19 Pa, noise 36 dB(A), input power 1.32 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

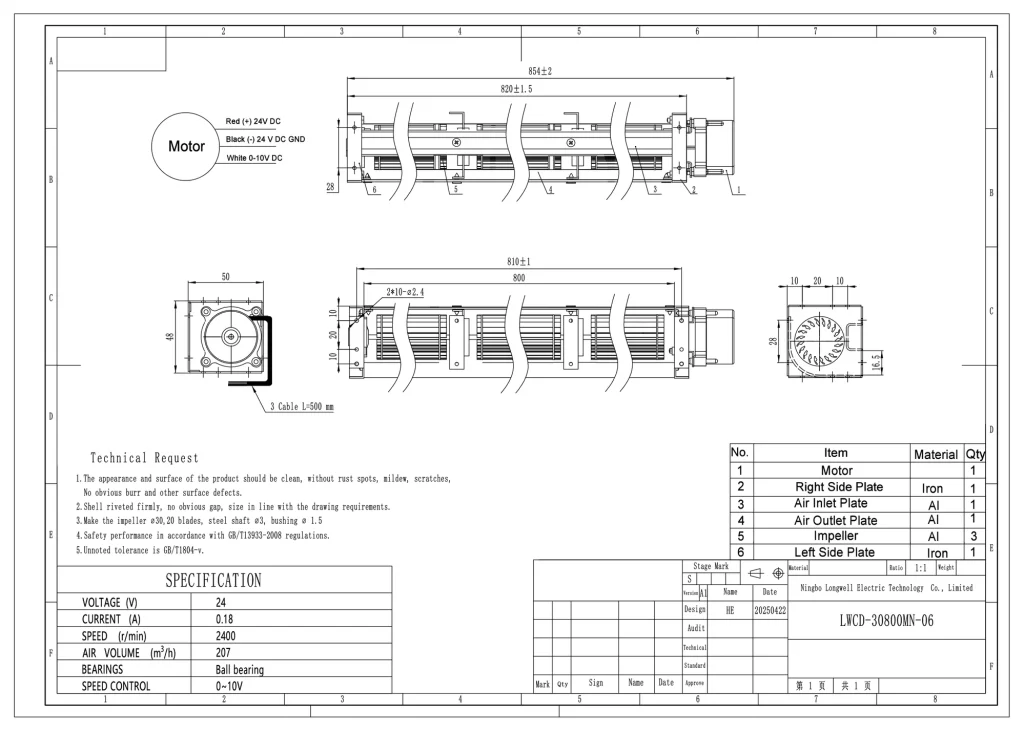

Technical data
| Model | LWCD-30800MN-06 |
|---|---|
| Series | LWCD30800 |
| Motor type | DC |
| Inlet | Triple |
| Rated voltage | 24 V |
| Current | 0.18 A |
| Input power | 1.32 W |
| Speed | 2,400 rpm |
| Max. airflow | 207 m³/h |
| Max. airflow (CFM) | 122 CFM |
| Max. static pressure | 19 Pa |
| Noise | 36 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø30 mm |
| Outlet length | 800mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD30800: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø30 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-30800MN-06 this model | 207 m³/h | 19 Pa | 2,400 rpm | 1.32 W | 36 dB(A) | 24 V | |
| LWCD-30290MN-07 | 85 m³/h | 15 Pa | 2,400 rpm | 1.68 W | 33 dB(A) | 24 V | View |
| LWCD-30290LN-06 | 85 m³/h | 15 Pa | 2,400 rpm | 1.44 W | 33 dB(A) | 12 V | View |
| LWCD-30350MN-07 | 105 m³/h | 16 Pa | 2,400 rpm | 1.92 W | 34 dB(A) | 24 V | View |
| LWCD-30350LN-06 | 105 m³/h | 16 Pa | 2,400 rpm | 1.56 W | 34 dB(A) | 12 V | View |
| LWCD-30420MN-07 | 125 m³/h | 17 Pa | 2,400 rpm | 2.16 W | 34 dB(A) | 24 V | View |
| LWCD-30420LN-06 | 125 m³/h | 17 Pa | 2,400 rpm | 1.68 W | 34 dB(A) | 12 V | View |
| LWCD-30530MN-06 | 137 m³/h | 17 Pa | 2,400 rpm | 2.88 W | 32 dB(A) | 24 V | View |
| LWCD-30610MN-06 | 158 m³/h | 18 Pa | 2,400 rpm | 3.12 W | 33 dB(A) | 24 V | View |
| LWCD-30650MN-06 | 168 m³/h | 18 Pa | 2,400 rpm | 3.12 W | 34 dB(A) | 24 V | View |
| LWCD-30718MN-06 | 185 m³/h | 19 Pa | 2,400 rpm | 3.36 W | 35 dB(A) | 24 V | View |
| LWCD-30854MN-06 | 221 m³/h | 20 Pa | 2,400 rpm | 4.56 W | 36 dB(A) | 24 V | View |
| LWCD-30920MN-06 | 238 m³/h | 20 Pa | 2,400 rpm | 5.04 W | 37 dB(A) | 24 V | View |
| LWCD-30986MN-06 | 255 m³/h | 21 Pa | 2,400 rpm | 5.28 W | 37 dB(A) | 24 V | View |
| LWCD-301082MN-06 | 279 m³/h | 21 Pa | 2,400 rpm | 5.76 W | 38 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
