- ImpellerØ110 mm
- Max airflow800 m³/h
- Max static pressure123 Pa
- Voltage230 V
- Speed1,200 rpm
- Input power70 W
- Noise61 dB(A)

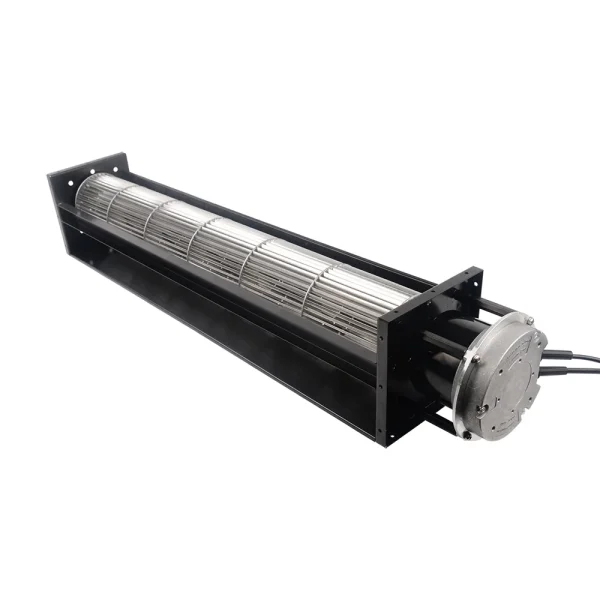

LWCE-110380SN-06 EC Cross Flow Fan Ø110 mm
Ø110 mm | EC | Max airflow 800 m³/h | Max static pressure 123 Pa | 61 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCE-110380SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø110 mm, rated 230 V EC, maximum airflow 800 m³/h, maximum static pressure 123 Pa, noise 61 dB(A), input power 70 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-110380SN-06 |
|---|---|
| Series | LWCE11038 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 70 W |
| Speed | 1,200 rpm |
| Max. airflow | 800 m³/h |
| Max. static pressure | 123 Pa |
| Noise | 61 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø110 mm |
| Outlet length | 380mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE11038: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø110 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCE-110380SN-06 this model | 800 m³/h | 123 Pa | 1,200 rpm | 70 W | 61 dB(A) | 230 V | |
| LWCE-110520SN-06 | 1,150 m³/h | 168 Pa | 1,200 rpm | 100 W | 63 dB(A) | 230 V | View |
| LWCE-110620SN-06 | 1,350 m³/h | 201 Pa | 1,500 rpm | 120 W | 66 dB(A) | 230 V | View |
| LWCE-110720SN-06 | 1,600 m³/h | 223 Pa | 1,500 rpm | 132 W | 67 dB(A) | 230 V | View |
| LWCE-110820SN-06 | 1,750 m³/h | 265 Pa | 1,500 rpm | 146 W | 68 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
