ImpellerØ150 mm5.9 in
Max airflow437 m³/h257 CFM
Voltage110-120 V
Speed3,400 rpm
Input power55 W
Noise53 dB(A)

LWDA-150 (6″)U-MWN-03 AC Ultra Silent Metal Duct Fan Ø150 mm

Ø150 mm | AC | Max airflow 437 m³/h | 53 dB(A)

SKU: LWDA-150 (6")U-MWN-03 Categories: Impeller Ø100–150 mm, Inline Duct Fans, Ultra Silent Duct Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWDA-150 (6")U-MWN-03

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWDA-150 (6")U-MWN-03drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

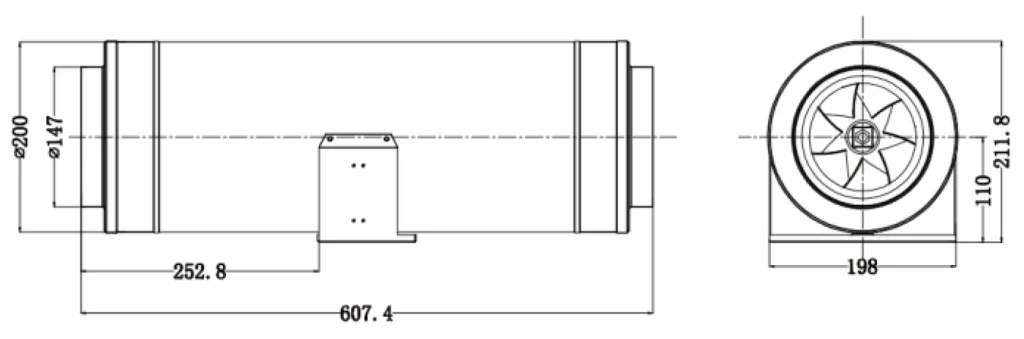

LWDA-150 (6")U-MWN-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

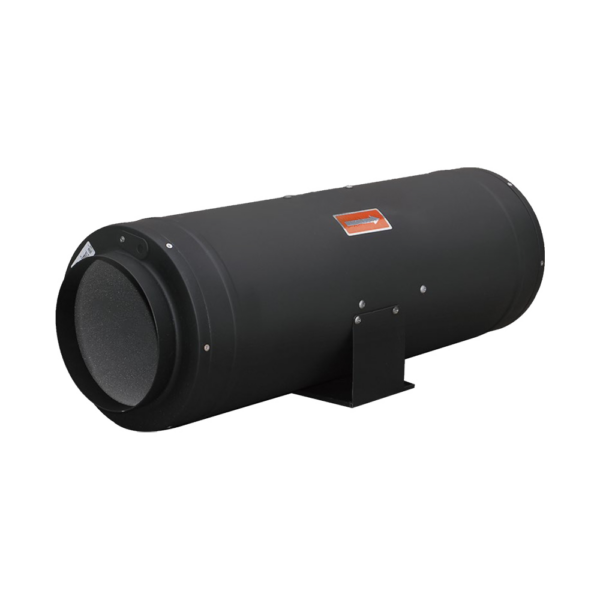

LWDA-150 (6")U-MWN-03 is a LONGWELL AC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø150 mm, rated 110-120 V AC, maximum airflow 437 m³/h, noise 53 dB(A), input power 55 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-150 (6")U-MWN-03
Series	LWDA150
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	60 Hz
Input power	55 W
Speed	3,400 rpm
Max. airflow	437 m³/h
Noise	53 dB(A)
Impeller diameter	Ø150 mm
Inlet diameter	150mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA150: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø150 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDA-150 (6")U-MWN-03 this model	437 m³/h	see curve	3,400 rpm	55 W	53 dB(A)	110-120 V
LWDA-150 (6")U-MWN-01	437 m³/h	see curve	3,400 rpm	55 W	58 dB(A)	110-120 V	View
LWDA-150S-MBN-12	457 m³/h	368 Pa	2,160 rpm	72 W	61 dB(A)	230 V	View
LWDA-150(6")S-PWN-12	530 m³/h	137 Pa	2,050 rpm	41 W	30 dB(A)	230 V	View
LWDA-150(6")U-PWN-14	535 m³/h	302 Pa	2,050 rpm	44 W	30 dB(A)	115 V	View
LWDA-150S-PWN-13	556 m³/h	309 Pa	2,550 rpm	80 W	27 dB(A)	230 V	View
LWDA-150 (6")S-MWN-02	620 m³/h	see curve	2,900 rpm	41 W	55 dB(A)	220-240 V	View
LWDA-150 (6")S-MWN-04	620 m³/h	see curve	2,900 rpm	41 W	50 dB(A)	220-240 V	View
LWDA-150(6")S-PWN-11	660 m³/h	168 Pa	2,400 rpm	59 W	32 dB(A)	230 V	View
LWDA-150(6")U-PWN-13	674 m³/h	355 Pa	2,480 rpm	59 W	32 dB(A)	115 V	View
LWDA-150(6")S-MWN-08	780 m³/h	70 Pa	2,800 rpm	40 W	52 dB(A)	220 V	View
