ImpellerØ160 mm6.3 in
Max airflow494 m³/h294 CFM
Max static pressure336 Pa1.35 in. wg
Voltage230 V
Speed2,200 rpm
Input power72 W
Noise63 dB(A)

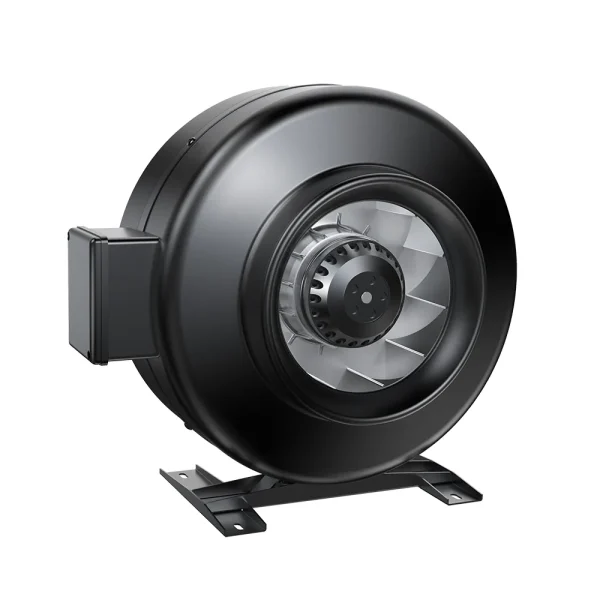

LWDA-160S-MBN-04 AC Metal Inline Duct Fan Ø160 mm

Ø160 mm | AC | Max airflow 494 m³/h | Max static pressure 336 Pa | 63 dB(A)

SKU: LWDA-160S-MBN-04 Categories: Impeller Ø160–315 mm, Inline Duct Fans, Metal Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC&DC&EC AC&DC&EC Metal duct fans · SKU on PDF p. 10

All files for LWDA-160S-MBN-045 files · direct download

PDFFull product catalogue · model on PDF p. 10 WEBPDimensional drawing WEBPPerformance curve DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDA-160S-MBN-04

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDA-160S-MBN-04datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDA-160S-MBN-04

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Video LWDA-160S-MBN-04

LONGWELL LWDA-160 Fan Test | LWDA-160(6.3)S-PBN-002S · open in video library

Drawing & Curve LWDA-160S-MBN-04

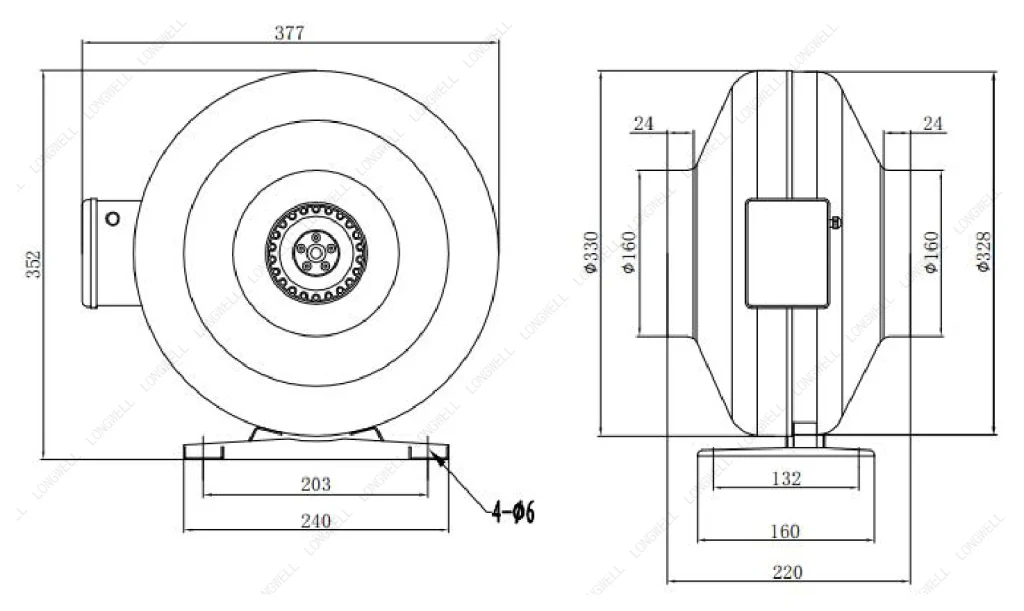

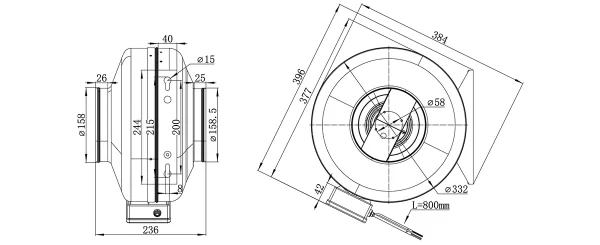

LWDA-160S-MBN-04 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

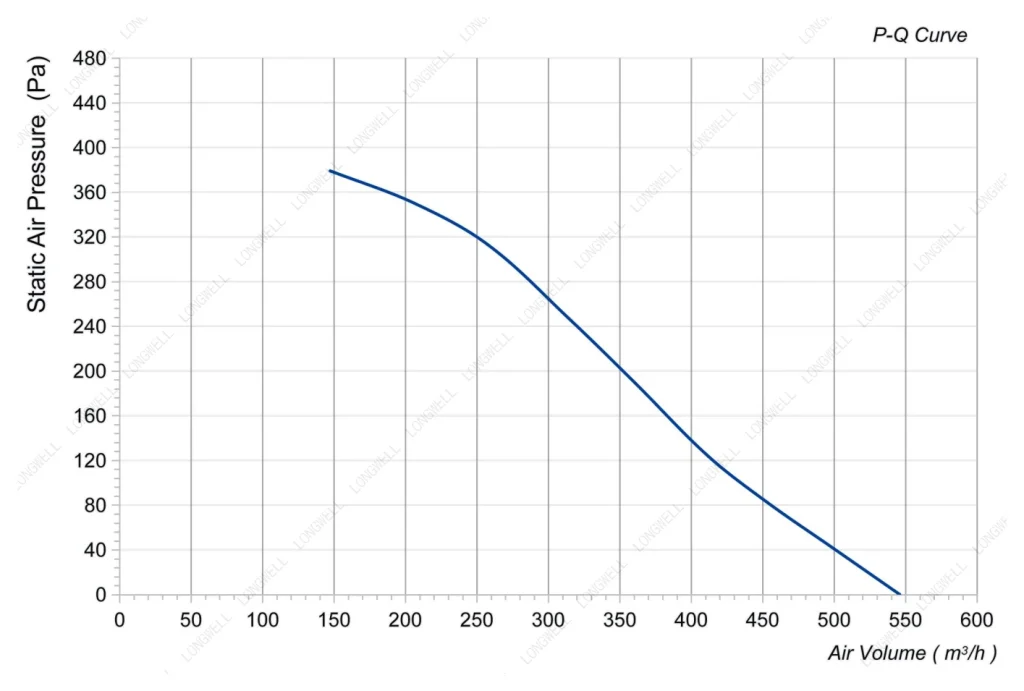

LWDA-160S-MBN-04 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWDA-160S-MBN-04: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDA-160S-MBN-04

LWDA-160S-MBN-04 is a LONGWELL AC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø160 mm, rated 230 V AC, maximum airflow 494 m³/h, maximum static pressure 336 Pa, noise 63 dB(A), input power 72 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-160S-MBN-04
Series	LWDA160
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Input power	72 W
Speed	2,200 rpm
Max. airflow	494 m³/h
Max. airflow (CFM)	294 CFM
Max. static pressure	336 Pa
Noise	63 dB(A)
Ambient temperature	-25 ~ + 60 °C
Storage temperature	-25 ~ 60℃
Humidity	15 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø160 mm
Inlet diameter	160mm
Impeller material	PA6+GF ( Impeller ) NGWELL NGWELL NGWELL LONGWE LONGWE LONGWE Version number : A0 NINGBO LONGWELL ELECTRIC TECHNOLOGY CO.,LTD . Phone: 0086 574 6218 9863 FAX : 0086 574 6218 9863 www.longwellfans.com sales@zjlongwell.com
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA160: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
