Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ315 mm12.4 in
- Max airflow1,680 m³/h1,000 CFM
- Max static pressure593 Pa2.38 in. wg
- Voltage230 V
- Speed2,520 rpm
- Input power220 W
- Noise80 dB(A)

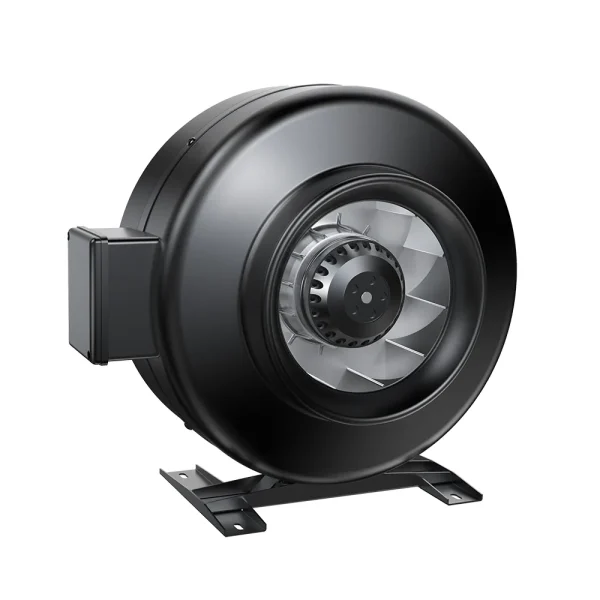

LWDA-315S-MBN-02 AC Metal Inline Duct Fan Ø315 mm
Ø315 mm | AC | Max airflow 1,680 m³/h | Max static pressure 593 Pa | 80 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

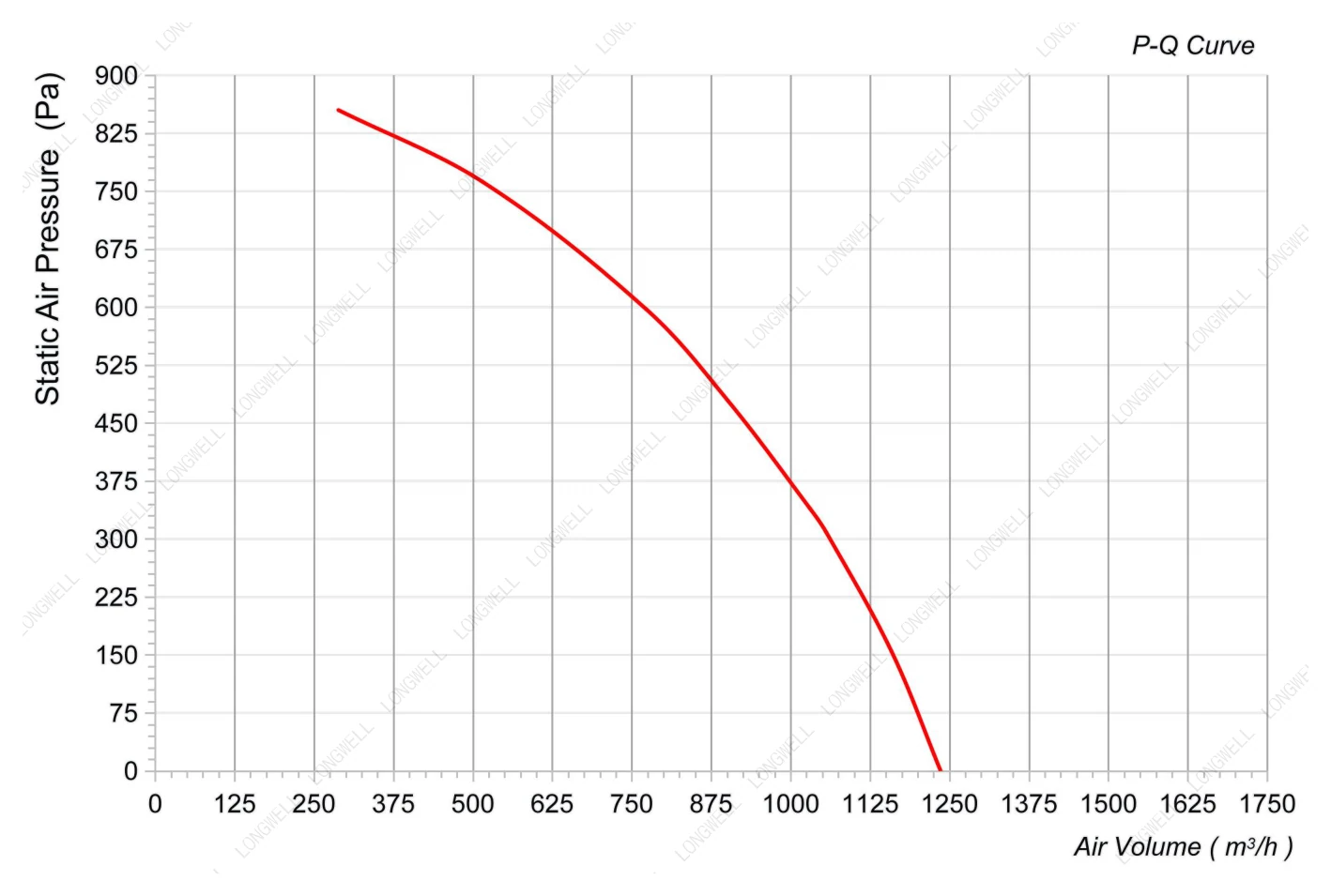

Performance curve (P-Q) LWDA-315S-MBN-02
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWDA-315S-MBN-02

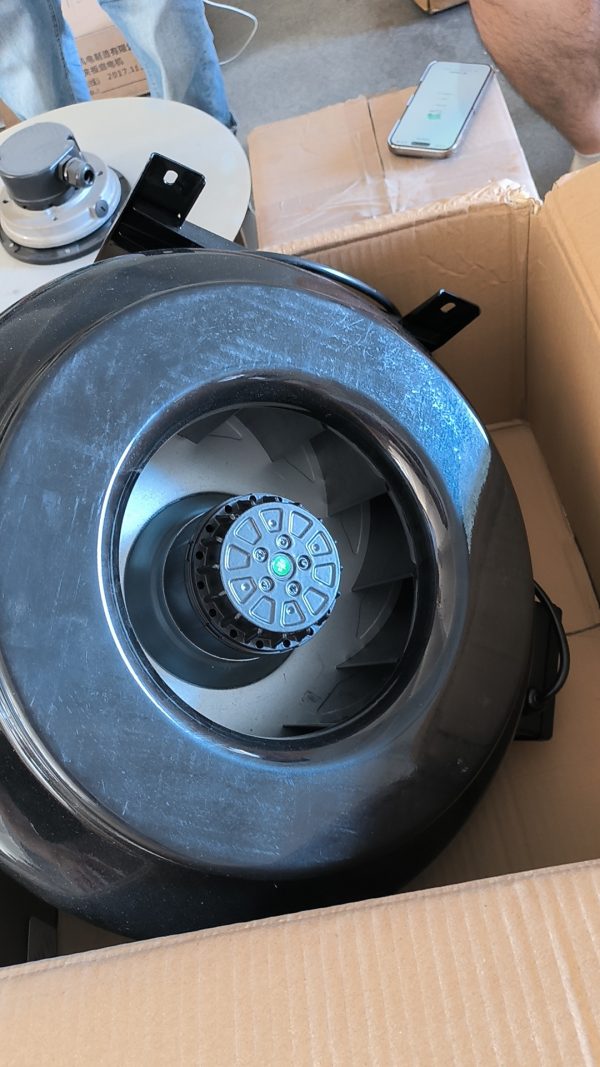

LWDA-315S-MBN-02 — construction, airflow path and running condition.
Longwell Metal Spherical Duct Fan—Efficient Ventilation, Enjoy Natural Airflow | LWDA-315S-MBN-02 · open in video library
AC Mixed Flow Duct Fan 315 Series: High Pressure, Low Noise | LWDA-315(12.6”)S-PWN-05 · open in video library

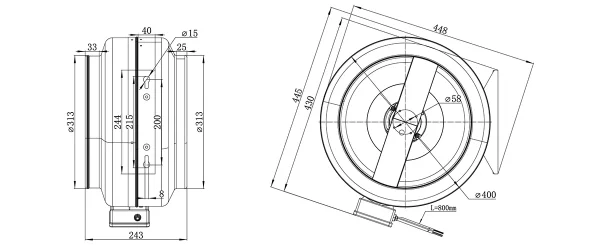

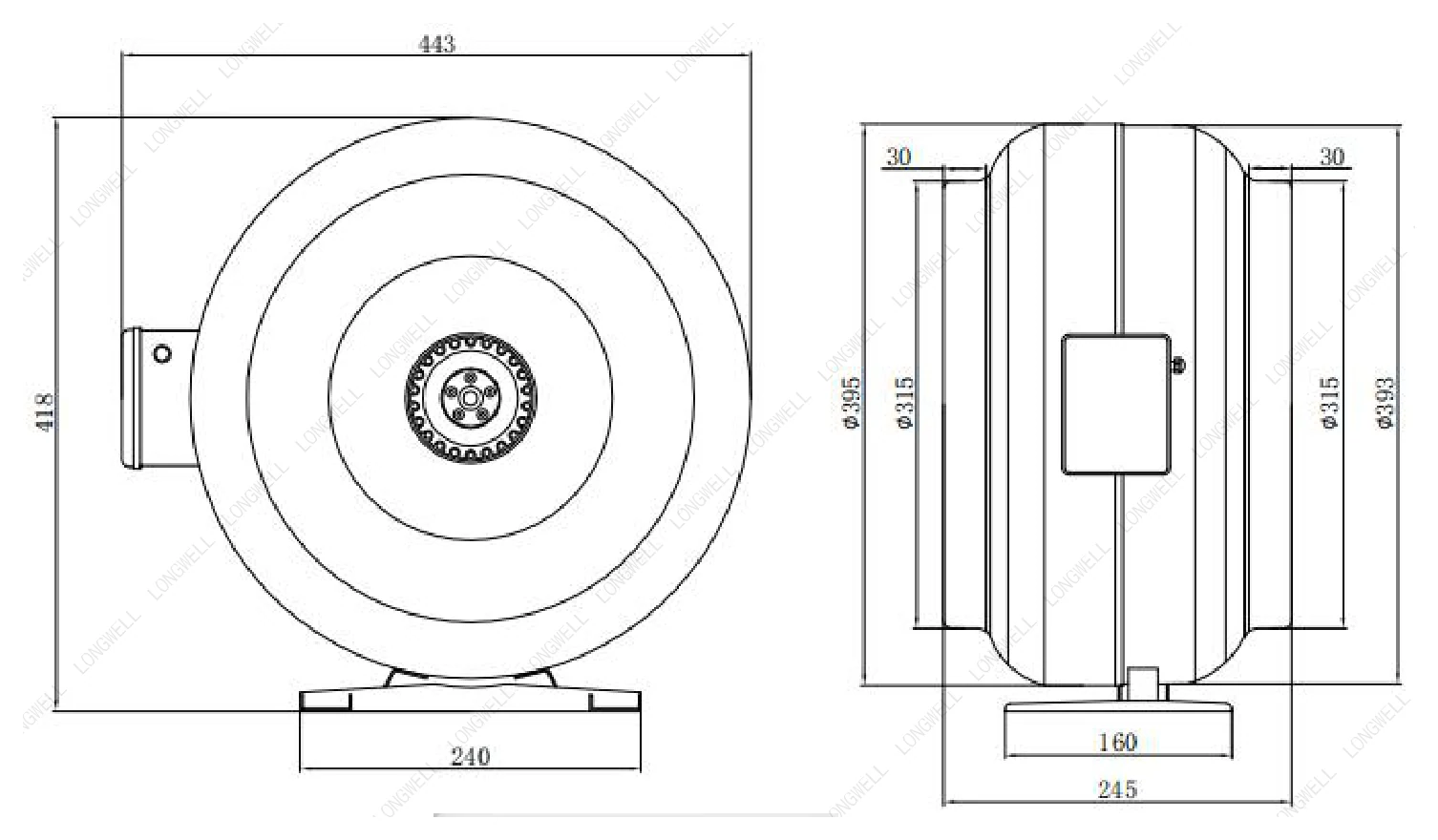

Drawing & Curve LWDA-315S-MBN-02
Files for LWDA-315S-MBN-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWDA-315S-MBN-02
LWDA-315S-MBN-02 is a LONGWELL AC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø315 mm, rated 230 V AC, maximum airflow 1,680 m³/h, maximum static pressure 593 Pa, noise 80 dB(A), input power 220 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWDA-315S-MBN-02 |
|---|---|
| Series | LWDA315 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 220 W |
| Speed | 2,520 rpm |
| Max. airflow | 1,680 m³/h |
| Max. airflow (CFM) | 1,000 CFM |
| Max. static pressure | 593 Pa |
| Noise | 80 dB(A) |
| Ambient temperature | -25 ~ + 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 15 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø315 mm |
| Inlet diameter | 315mm |
| Impeller material | PA6+GF ( Impeller ) NGWELL NGWELL NGWELL LONGWE LONGWE LONGWE Version number : A0 NINGBO LONGWELL ELECTRIC TECHNOLOGY CO.,LTD . Phone: 0086 574 6218 9863 FAX : 0086 574 6218 9863 www.longwellfans.com sales@zjlongwell.com |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDA315: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
